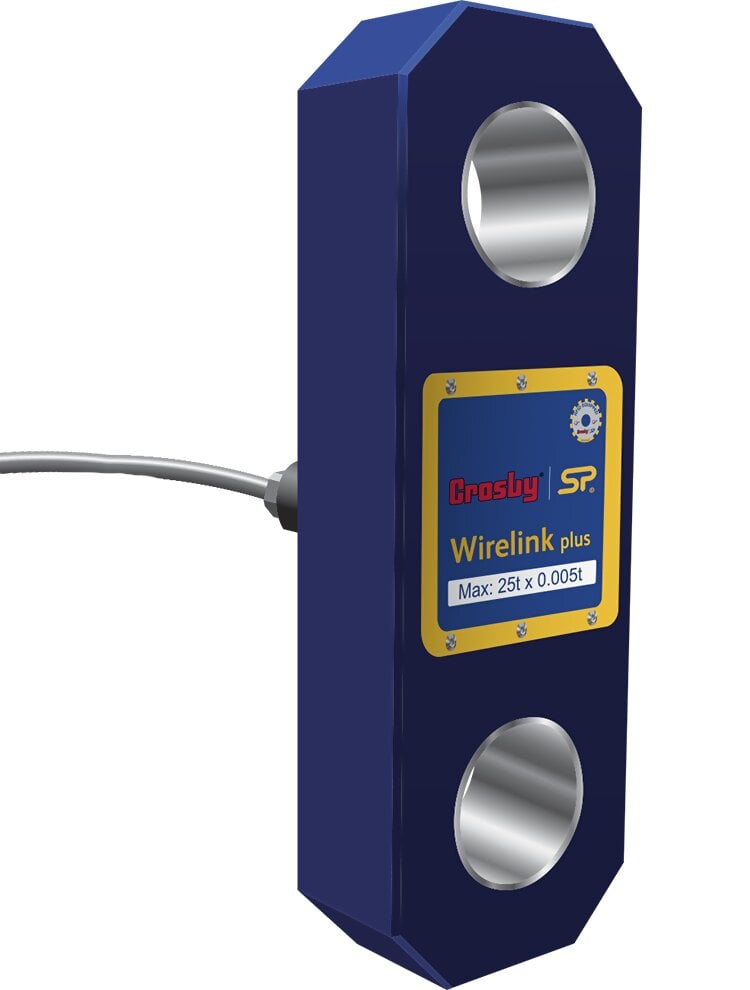

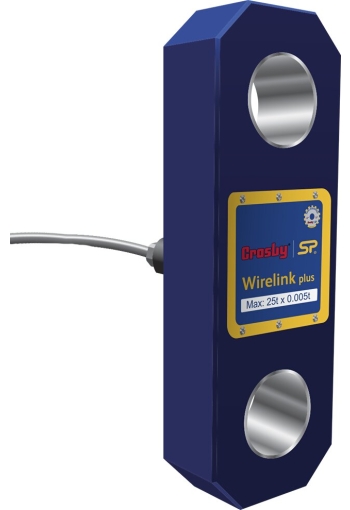

The StraightPoint WLP WireLink Plus Cabled Tension Load Cell is designed to be rigged with Crosby standard shackles - manufactured from aerospace grade aluminium and utilising an advanced internal design structure this range of non-indicating Load cells are extremely lightweight, easy to handle and are used worldwide in an array of industries for lifting, pulling, proof and structural load testing.

Decades of development into this product include many stand out features such as our unique strain gauging method that helps compensate for wire rope torque when the Wirelink is loaded.

The extremely versatile platform can be used with digital displays including the Straightpoint handheld plus, PLCs, Data Acquisition systems (DAQ) etc. and configured with a vast array of output formats to include mV/V, RS-422, RS-485, utilizing the ASCII, MODBUS RTU and CAN-BUS protocols.

The Wirelink plus is supplied with a 10 metre cable as standard however usable cable length varies greatly with lengths available to 1500 metres depending on the output format.

Kit Contents

StraightPoint WLP WireLink Plus Cabled Tension Load Cell Proof test certificate Operator Manual Carry / Storage Case RFID Tagged 10M Cable

Features

• Constructed of lightweight aluminium
• Available in capacities ranging from 1 to 300 tonnes
• High accuracy
• Multiple output options to include mV/V, analogue out, ASCII, MODBUS RTU and CAN-BUS
• Available with IP68 environmental protection
• Options for subsea use available
• Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
• DNV -GL Type Approval
• Complies with ASME B30.26
• Design validated by F.E.A.

Applications

Specifications

Order Guide

Analogue Output

A standard analogue output option is available to include:

Shackles

G2130 Shackle Crosby G2130-3.25t shackle for 1t and 2.5t dynamometers Crosby G2130-6.5t shackle for 6.5t dynamometers Crosby G2130-12t shackle for 12t dynamometers Crosby G2130-25t shackle for 25t dynamometers

G2140 Shackle Crosby G2140-55t shackle for 35t & 55t dynamometers Crosby G2140-85t shackle for 75t dynamometers Crosby G2140-120t shackle for 100t dynamometers Crosby G2140-150t shackle for 150t dynamometers Crosby G2140-200t shackle for 200t dynamometers Crosby G2140-250t shackle for 250t dynamometers Crosby G2140-300t shackle for 300t dynamometers

G2160 Shackle Crosby G2160-600t shackle for 500t dynamometers

Downloads

StraightPoint WLP WireLink Plus Cabled Tension Load Cell - Data Sheet

StraightPoint WLP WireLink Plus Cabled Tension Load Cell - Instruction Manual
