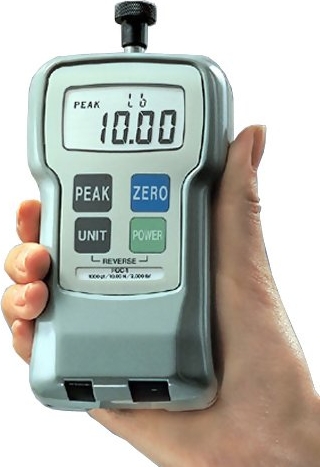

Shimpo FGE Hand-Held Digital Force Gage

See More Digital Force Gages

This product has been replaced by the Shimpo FGE-XY

Accuracy ± 0.2%

8 Ranges up to 100lbs

Measure force in lbs, Kgs or N

Reversible display

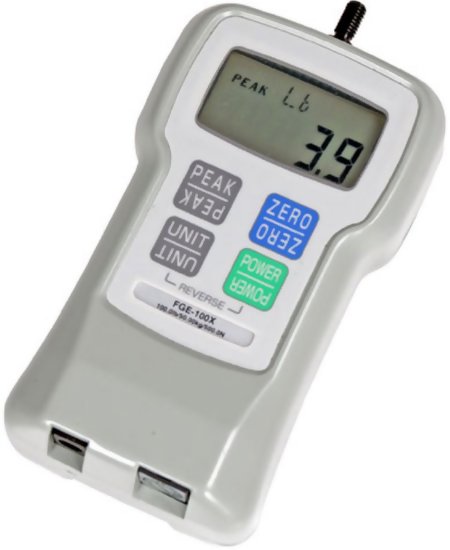

FGE Standard Force Gauge
8 Ranges up to 100lbs

The microprocessor-controlled, digital FGE Digital Force Gauges precisely measure push/pull forces up to 100 pounds with an accuracy of ± 0.2%.

They are extremely compact for convenient hand-held use and include provisions for mounting on a test stand for bench top use.

Optional Handle for FGE / FGV Force Gauge. FG-HANDLE

force gauge handle

line
Features
line

Includes NIST Calibration Certificate
Accuracy ± 0.2%
User-selected units of Pounds, Kilograms or Newtons
Display can be reversed for inverted use
Display "real-time" or "peak" force
200% overload protection
1 Year Warranty

line
Photo Gallery
line

line
Force Ranges
line

Model	Capacity	Resolution
FGE-0.5X	8.00 oz 200.0 g 2.000 N	0.01 oz 0.1 g 0.001 N
FGE-1X	16.00 oz 500.0 g 5.000 N	0.01 oz 0.1 g 0.001 N
FGE-2X	2.000 lb 1000 g 10.00 N	0.001 lb 1 g 0.01 N
FGE-5X	5.000 lb 2.000 Kg 20.00 N	0.001 lb 0.001 kg 0.01 N
FGE-10X	10.00 lb 5.000 Kg 50.00 N	0.01 lb 0.001 kg 0.01 N
FGE-20X	20.00 lb 10.00 Kg 100.0 N	0.01 lb 0.01 kg 0.1 N
FGE-50X	50.00 lb 20.00 Kg 200.0 N	0.01 lb 0.01 kg 0.1 N
FGE-100X	100.0 lb 50.00 Kg 500.0 N	0.1 lb 0.01 kg 0.1 N

line
Dimensions
line

dimensions

Note:
FGE / FGV-0.5X & FGE / FGV-1X - Shaft thread is M4
FGE / FGV-2X & Over - Shaft thread is M6

line
Specifications
line

Accuracy	±0.2% full scale
Display	4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update	0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate	1000 times per second
Overload Protection	200% of full scale
Power	Rechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-Off	Yes (not active if adapter/charge is in use)
Battery Life	12 hours (when fully charged)
Recharge Time	Approximately 18 hours when fully discharged
Dimensions	5.1" L x 2.9" W x 1.5" H (130 mm x 75 mm x 38 mm)
Weight	1 lb (450 g)
Approvals	CE approved
Warranty	1 Year

line
Related Products
line

MESURgauge
Mesurgauge Load & Travel Analysis Software

Sends data from a force or torque gauge and travel display to a PC for further analysis

line

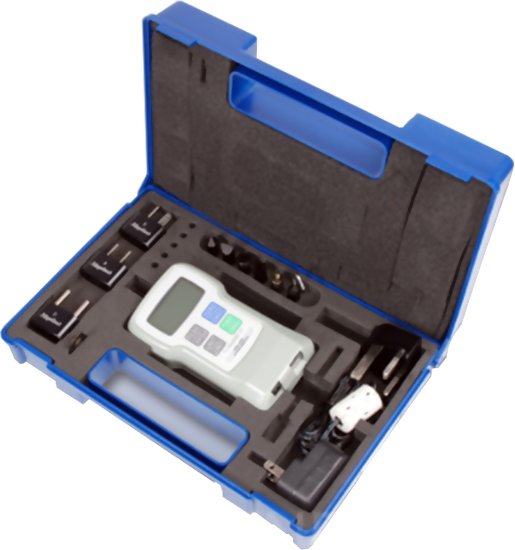

Complete Kit
line

Includes Force Gauge, AC Adapter/Charger, 6 Attachments;Hook, Flat Head, Notched Head, Hanger, cone head, extension rod, RS232 CABLE & Toriemon Software (FGV Only) in a foam fitted carrying case

complete kit

line

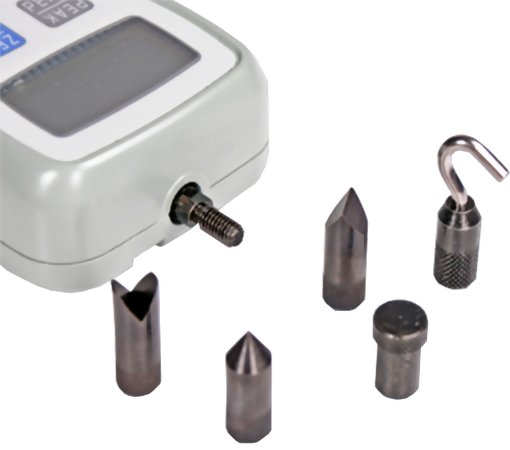

Standard Attachments
line

dimensions

line
Special Attachments
line

line
Downloads
line

Shimpo FGE Hand-Held Digital Force Gage - Data Sheet

Shimpo FGE Hand-Held Digital Force Gage - Instruction Manual

Shimpo FGE Hand-Held Digital Force Gage - Special Attachments

FGE Hand-Held Digital Force Gage - Toriemon Software for FGV
