    Product Description

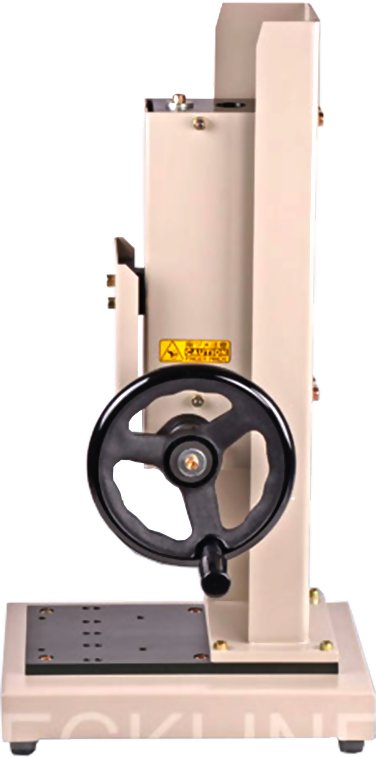

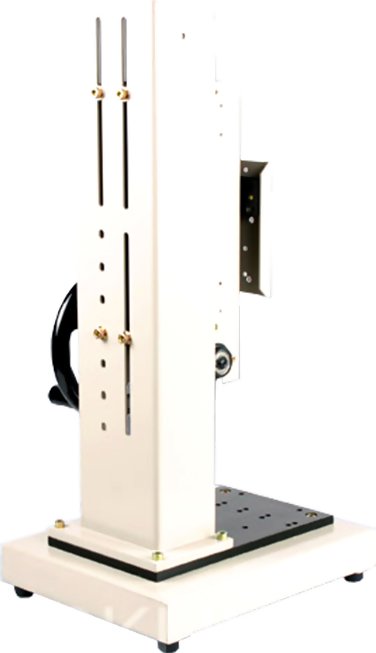

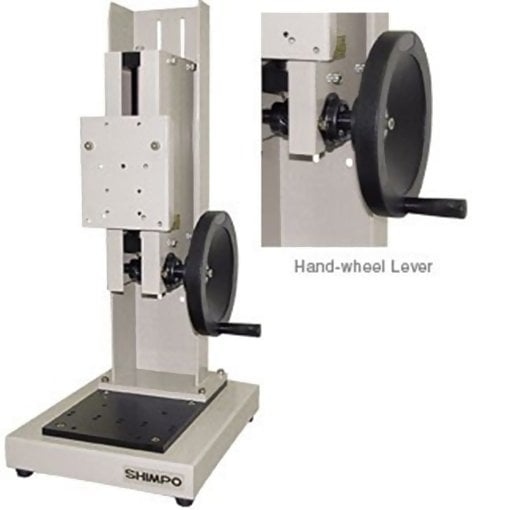

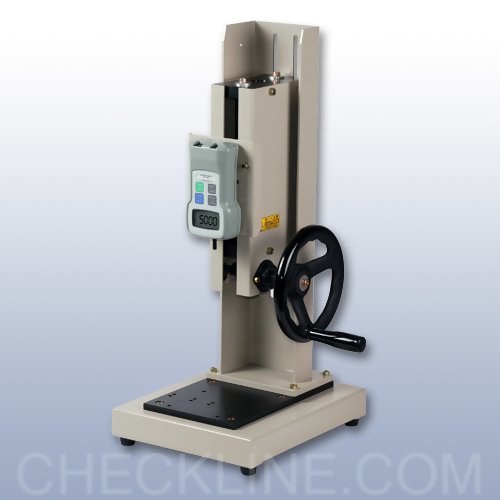

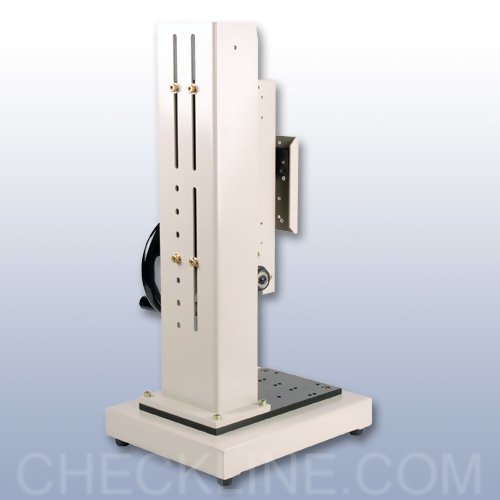

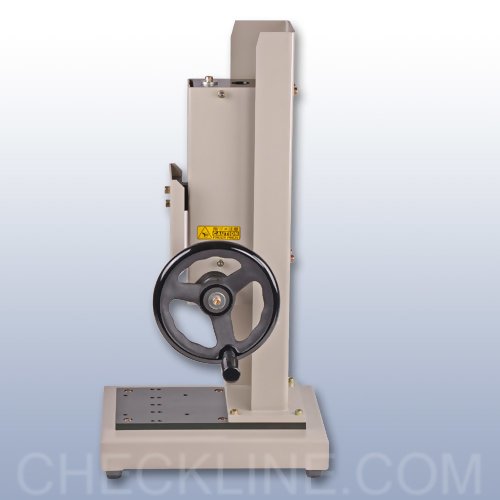

    Shimpo FGS-100H Manual Hand Wheel Operated Test Stand
    Force Gauge sold Separately
    110lb Capacity
    5.9" (150 mm) Maximum Travel

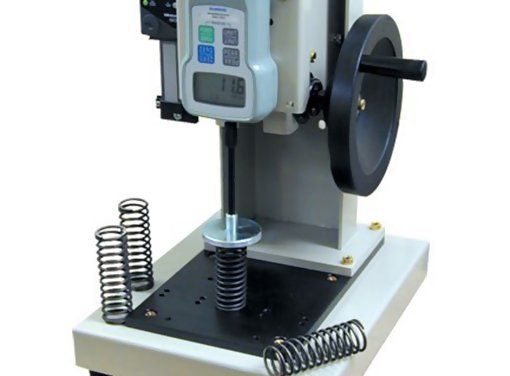

    The Shimpo FGS-100H Manual Hand Wheel Operated Test Stand is ideal for obtaining accurate, consistent results for both tension and compression testing up to 110lbs.


    line
    Features
    line

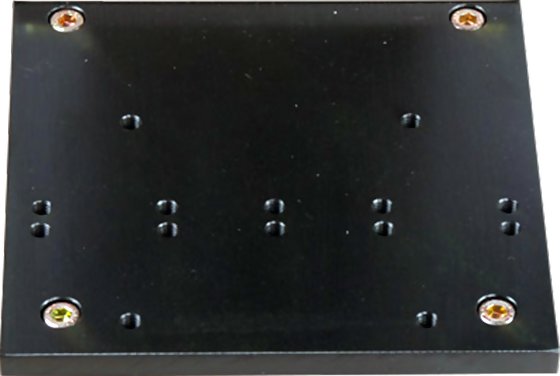

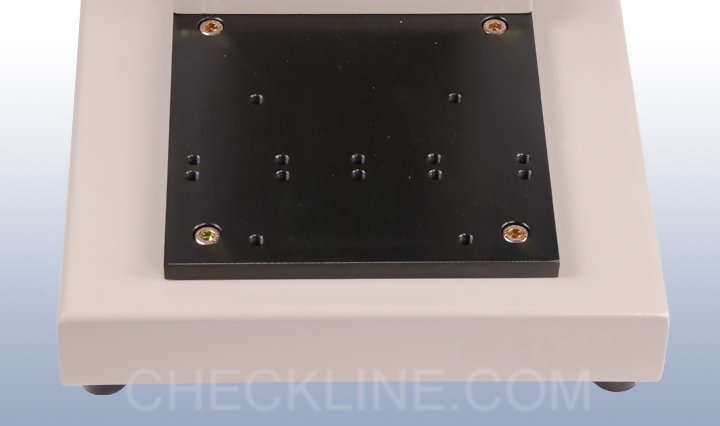

    • Versatile bottom mounting plate accepts standard and custom-made attachments
    • Precision gear movements
    • Sturdy, all steel construction
    • Constant Linear Motion


    line
    Specifications
    line

    Capacity 110 lbs (50 kg)
    Stroke 5.9" (150 mm)
    Travel Rate 3 mm/wheel turn (approximately)

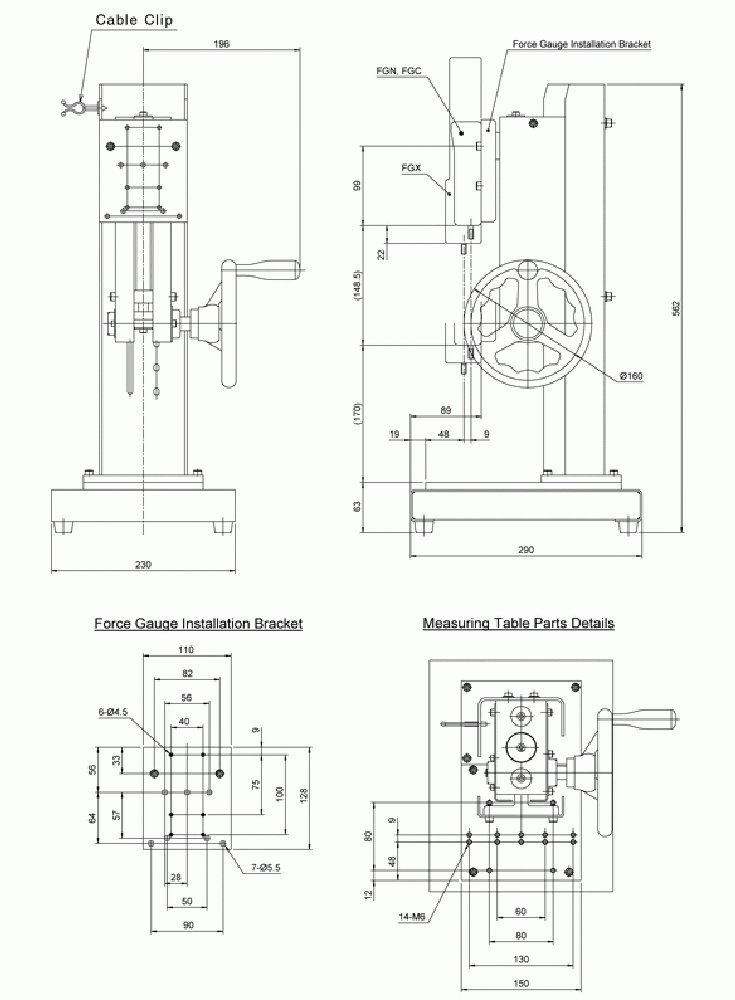

    Dimensions Refer to dimensions above
    Weight approx. 33 lb (15 kg)
    Compatible Gauges FGE / FGV, FGV-XY
    Warranty 1 years

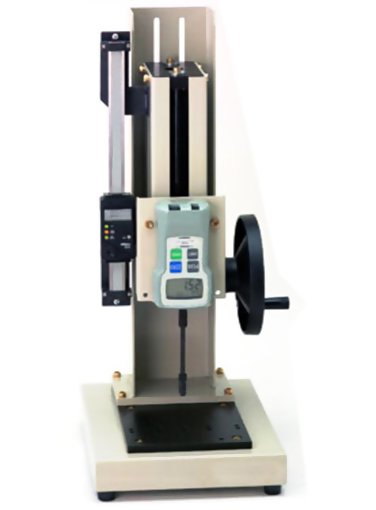

    *Note Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second


    line
    Related Products
    line

    FGE - FGV
    Hand-held Digital Force Gauge
    • Includes Traceable Calibration Certificate
    • Accuracy ± 0.2%
    • User-selected units of Pounds, Kilograms or Newtons
    		 related

    line

    FGV-XY
    Digital Force Gauge with USB Output
    • Accuracy of ±0.2%providing superb repeatability
    • USB, RS-232 & Analog Outputs - all included!
    • 3 different outputs for data transfer provides maximum flexibility
    		 related
