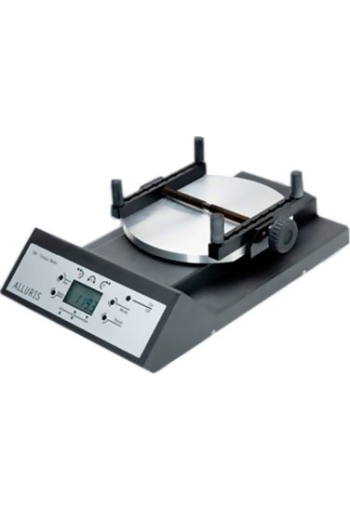

Alluris TMI-200 Digital Torque Meter

See More Cap Torque Testers

Torque measurment with 0.5% accuracy, memory and USB interface

The Alluris TMI-200 Digital Torque Meter offers a high accuracy of 0.5% in addition to the ability to compare measured values with reference values and to store data series and statistically. It is therefore particularly suitable for use in quality control lab.

The robust sensor module, designed and protected by an overload of up to 150%, a high resolution combined with a very high overload protection and is bidirectional, therefore, torque capture in both directions.

line
Features
line

Positive/negative indication through coloured LEDs
Accurate measuring of torque for screw tops, armatures, machinery components and tools
Robust, stable and splashwaterproof (IP44)
High accuracy of 0.5% and accurate recording of peak value under 1000Hz
Data memory and USB interface

line
Specifications
line

Measuring principle	Stain gauge with 12-bit D/A converter
Modes of operation	Standard: Display of actual value in N-m, N-cm, Lb-in and kg-cm CW/CCW Rotation: Display of peak value in N-m, N-cm, Lb-in and Kg-cm
Accuracy	@ 23°C (F.S.): +/- 0.5% (+/- 1/2 digit) Tk (absolute): Automatic alignment at startup Tk (relativ): +/- 0.02% (°K)
Display	LCD, 4 digits, 12mm high with side-display of 7mm
Memory	1000 Measurements
Power	Internal NiMH battery \| Universal charging device 100 - 240VDC (50Hz)
Temerature Range	0-40°C (-10-50°C, store dry)
Weight	17 lbs (8 kg)
Dimensions	14 x 8 x 4 in(370 x 210 x 120 mm)
Housing Material	Aluminium casting, protective PS casing \| IP 42 (splash water protection)

line
Torque Ranges
line

Model	Range	Resolution
TMI-200B2	0 - 2 N-m	0.001 N-m
TMI-200B5	0 - 5 N-m	0.001 N-m
TMI-200C1	0 - 10 N-m	0.01 N-m

line
Downloads
line

Alluris TMI-200 Digital Torque Meter - Instruction Manual
