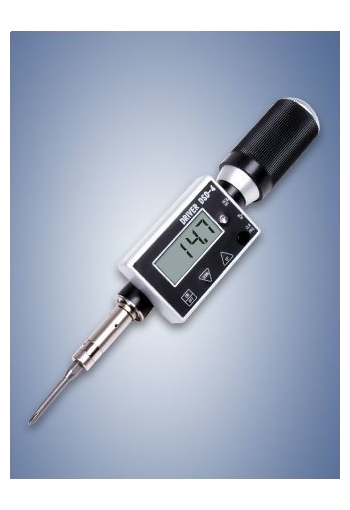

The Imada DSD-4 torque screwdriver features an integral/adjustable LCD display for convenient torque readings. The unit is designed for screw tightening torque verification and measures in Peak, Real Time, and Peak Down measuring modes (selectable).

The Imada DSD-4 torque screwdriver has an accuracy of ± 0.5% F.S., ±1 LSD and has programmable setpoints that provide both an audible beep and green/red LED indicator for uniform tightening or GO/NO GO testing. In addition, it features a programmable counter that minimizes assembly errors by identifying mis-tightening and/or defective screws. Use the 400 internal memory for peak data recall or RS-232 download for SPC.

The DSD-4 torque screwdriver substantially reduces scrap and rework costs by eliminating over and under-tightening and is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.

Features

• Includes NIST Certificate with Data
• Available in: lb-in, oz-in, kg-cm, N-cm and N-m (specify units when ordering)
• Peak, Real Time and Peak Down measuring mode (selectable)
• 400 data memory for recall or for SPC download
• Programmable High and Low setpoints with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
• Runs on internal NiCad batteries (for 8 hours) Auto shut-off after 10 min. of non-use
• Programmable screw tightening counter
• Can be used with any 1/4" hex bit
• Both CW and CCW operation
• 2 Year Warranty
• RS-232 output for SPC capability
• Integrated stepless clutch allows ratching action

Force Ranges

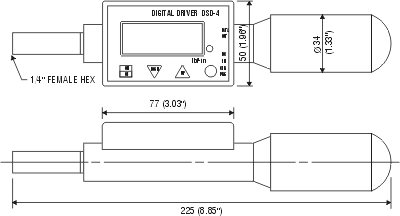

Dimensions

Complete Kit

The DSD-4 is sold as a complete kit that includes the tester/screwdriver, integrated stepless clutch, Phillips tip, AC adapter/charger and carrying case.
