Mark-10 MGT Digital Torque Gauge

See More Cap Torque Testers

This product has been replaced by the Mark-10 TT03

MGT has been replaced by the Series-TT03

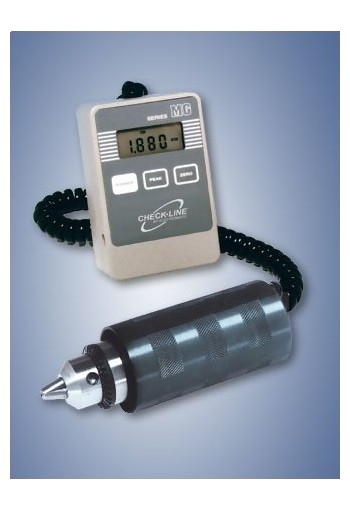

MGT Digital Torque Gauge

Digital Torque Gauge

6 Ranges up to 100lbf-in

Units of measure: lbf-in, kgf-cm, and N-cm (selectable)

The MGT Torque Gauge is a rugged solution for most torque measurement applications. A dedicated remote torque sensor with a Jacobs chuck can be used to grip a sample or fixture. The MGT is available in a wide variety of capacities, from 12 lbf-in to 100 lbf-in.

line
Features
line

Display "real-time" or "peak" force
Units of measure: lbf-in, kgf-mm, and N-cm (selectable)
Battery life: 30 hours of continuous operation
Push-button calibration
Includes NIST calibration certificate
Battery or AC operation
3 Year Warranty

line

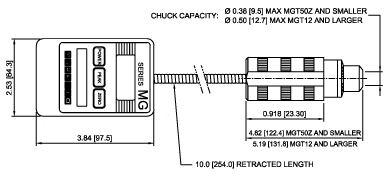

Dimensions
line

line
Force Ranges
line

Model	Capacity	Resolution
MGT10Z	10 oz-in 7 kg-mm 7 N-cm	0.01 oz-in 0.005 kg-mm 0.005 N-cm
MGT20Z	20 oz-in 14 kg-mm 14 N-cm	0.02 oz-in 0.01 kg-mm 0.01 N-cm
MGT50Z	50 oz-in 36 kg-mm 35 N-cm	0.05 oz-in 0.05 kg-mm 0.05 N-cm
MGT12	12 lb-in 140 kg-mm 135 N-cm	0.01 lb-in 0.1 kg-mm 0.1 N-cm
MGT50	50 lb-in 580 kg-mm 570 N-cm	0.05 lb-in 0.5 kg-mm 0.5 N-cm
MGT100	100 lb-in 1150 kg-mm 1150 N-cm	0.1 lb-in 1 kg-mm 1 N-cm

Note: For 220V operation add suffix E to model number. Example: MGT50E

line
Chuck Sizes & Min / Max Sample Diameters
line

Chuck Sizes
MTG Model	10Z	20Z	50Z	12	50	100
Size	9.5mm / 0.375"			12.7mm / 0.500"

Min/Max Sample Diameters
Chuck Size	Min Sample	Max Sample
9.5mm / 0.375"	1.5mm / 0.062"	9.5mm / 0.375"
12.7mm / 0.500"	2.0mm / 0.078"	12.7mm / 0.500"

line
Complete Kit
line

MGT torque gauges are supplied in a cushioned carrying case with AC adapter, battery, chuck key, users manual, and NIST certificate of calibration.

line
Specifications
line

Accuracy	± 0.5% of full scale ±1 digit
Sampling Rate	30 times/s
Overload capacity	150% of capacity
Power supply	9V battery or AC adapter
Housing dimensions	See Drawing
Weight	1.8 lbs (0.8 kg)
Warranty	3 Years
