Imada DST Digital Force Gauge with Output
Accuracy ± 0.2%
Measure force in lbs, Kgs or N
7 Ranges up to 220 lbs
USB and RS-232C outputs

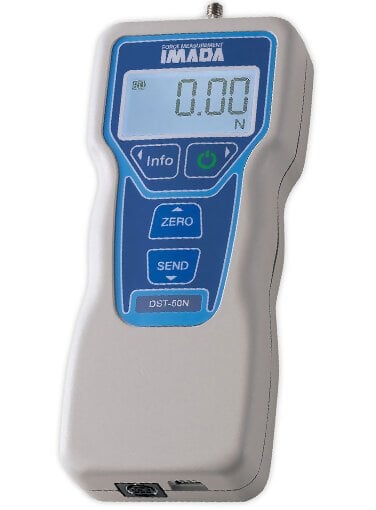

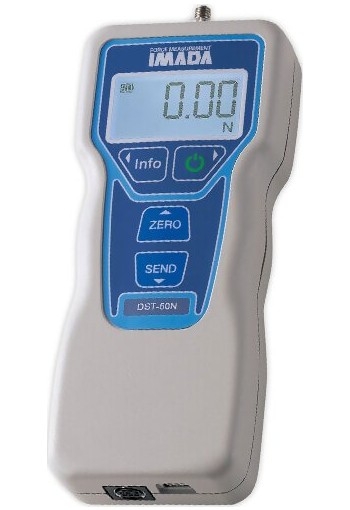

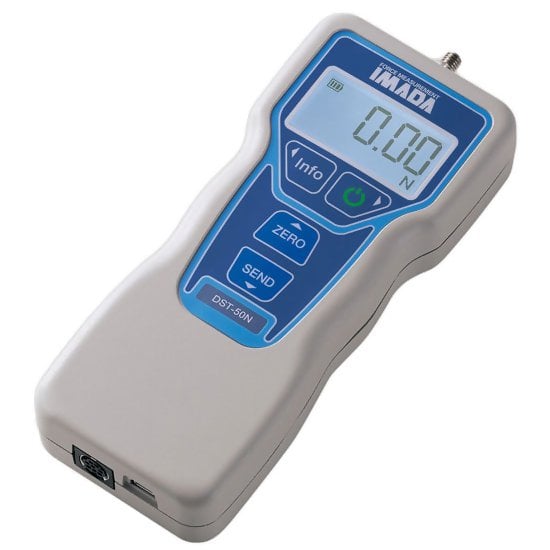

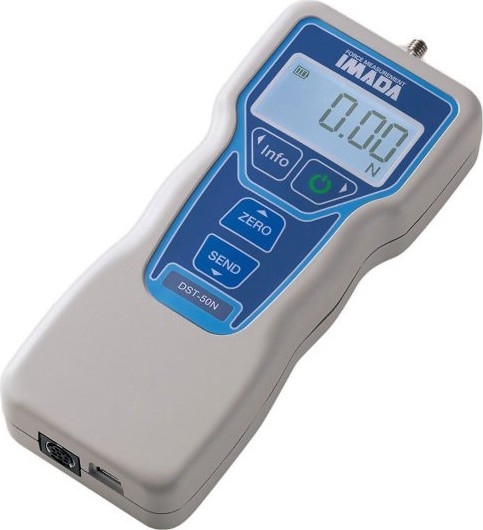

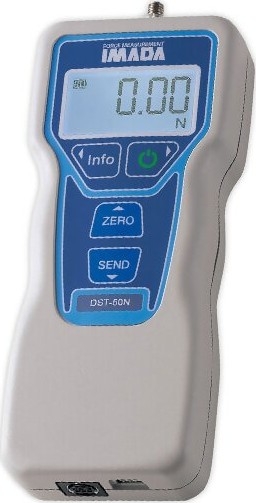

The Imada DST Digital Force Gauge are simple-to-use basic gauges featuring user-friendly menu operation. Selections including unit and measuring mode can be locked to prevent accidental changes.

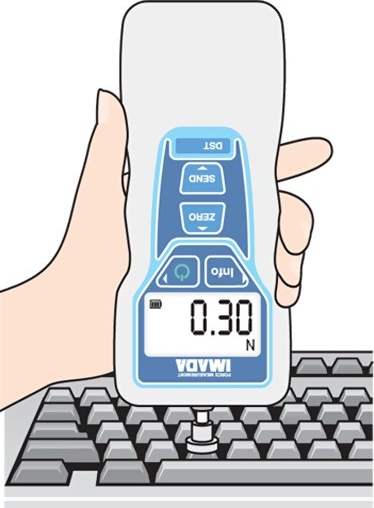

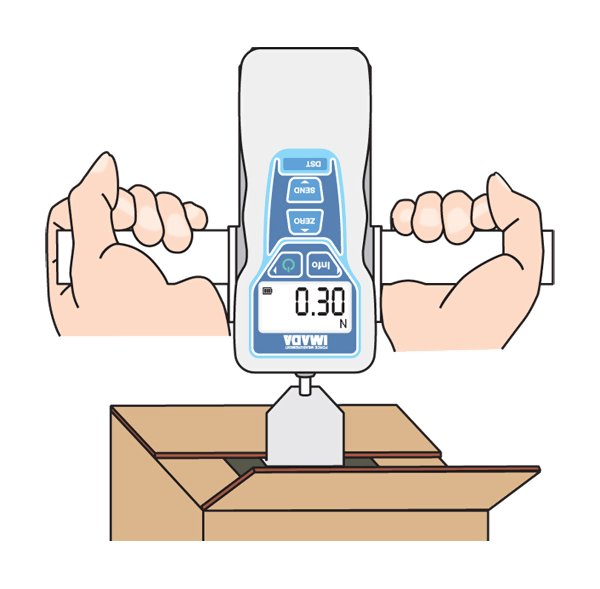

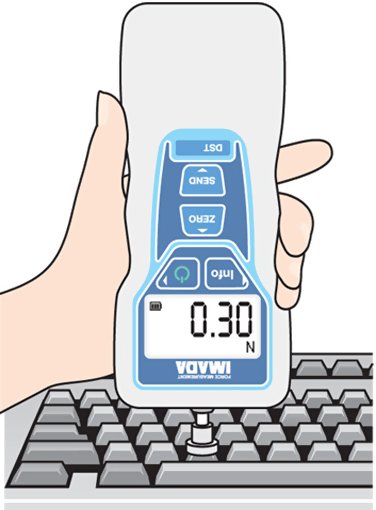

The large backlit LCD display can be configured in basic format to show value, unit and measuring mode or multi-line format to display peak and real time values simultaneously. Additional features include reversible display and high/low setpoints with OK indicator for Go/No Go testing.

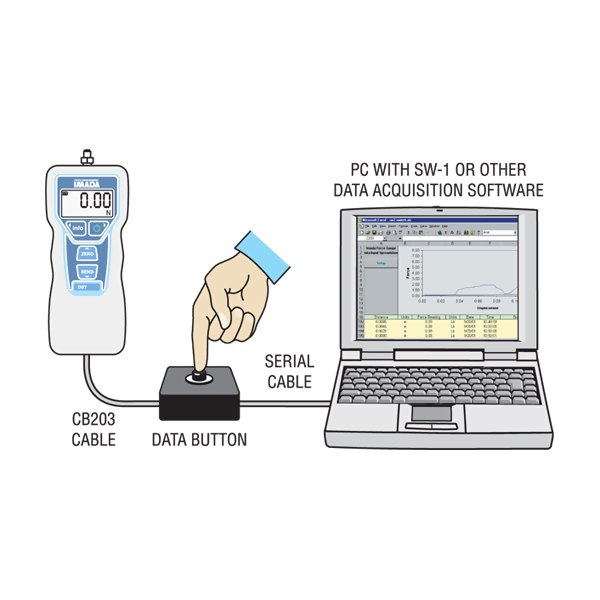

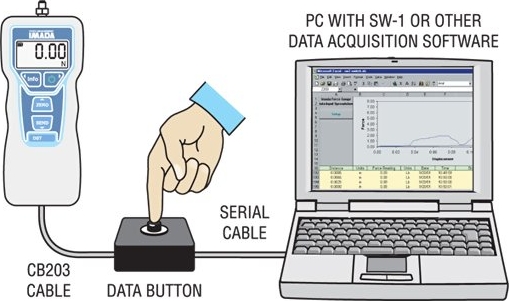

The gauges have a 30,000/sec sampling rate. Collect the data via USB or RS-232 connections with the Force Logger or SW-1X software (both optional).
DST gauges are powered by rechargeable Ni-MH batteries or the AC adapter/charger. The batteries are user replaceable and can also be charged using USB ports or USB portable chargers.

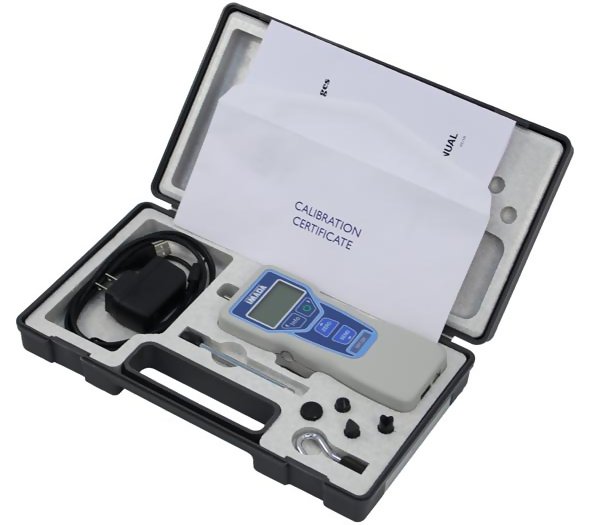

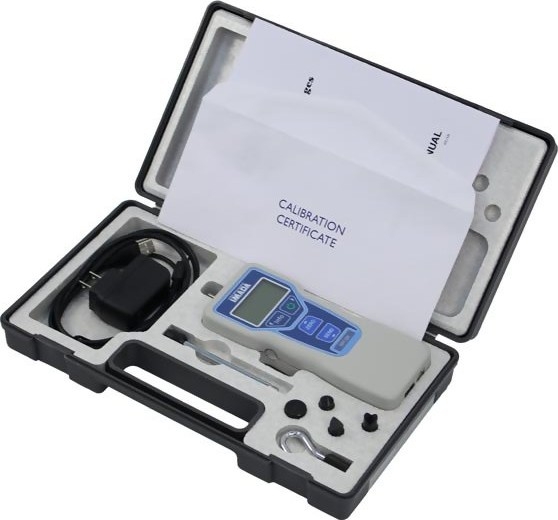

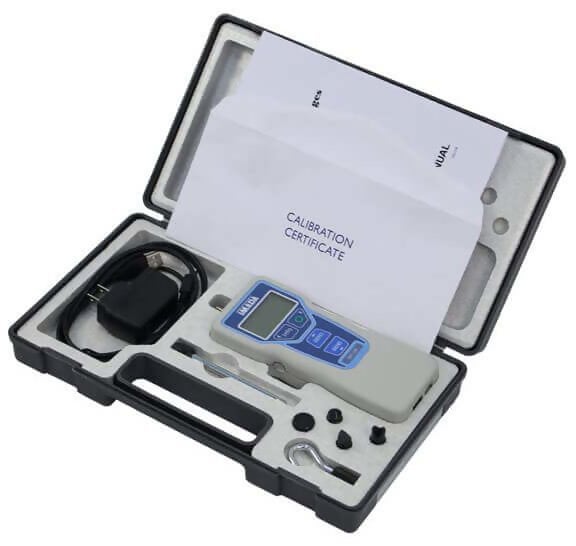

Kit Contents
- Imada DST Digital Force Gauge
- a set of six standard attachments
- NIST Traceable Calibration Cert
- AC adapter/charger
- Hard plastic carrying case
- Instruction Manual
| |
Features
- Backlit LCD display with user-friendly menus
- Setting security lock prevents accidental changes
- Ergonomic, durable, heavy-duty metal construction
- 30,000/sec sampling rate
- Selectable real time or peak mode operation
- Programmable High/Low setpoints with OK indicator
- USB and RS-232C output
- Push-button tare function
- Overload capacity 200% F.S.; display flashes at overload limit
- Runs on internal Ni-MH batteries (user replaceable) or AC adapter; charge with USB port or portable charger
- DST kit includes set of six attachments, AC charger/adapter, calibration cert traceable to NIST and carrying case.
Specifications
| Measuring Principle | Bidirectional force sensor with strain gauge |
| Accuracy | ± 0.2% F.S., ± 1 LSD |
| Sampling Rate | 30,000/second |
| A/D Converter | 16 bit |
| Setpoints | Programmable high/low setpoints with OK indicator |
| Display | LCD, 4 digits |
| Selectable Units | N, gf (kgf), lbf (ozf) |
| Display Update Rate | 8 times/sec. |
| Overload Alarm | 200 % full scale
Alarm signal at 90 % full scale
Alarm signal and flashing display at 110 % full scale |
| Outputs | USB, RS-232C |
| Battery Life | Approx. 30 hours backlight off
Approx. 14 hours backlight on
4.5 hours required for full charge |
| Battery Indicator | Battery icon displays three levels of charge |
| Power Supply | Rechargeable NiMH batteries (approx. 30 h continuous use without background light, approx. 14 h with background light, approx. 4.5 h charging time). Charging occurs with AC adapter or by connection via USB cable to a PC or a mobile battery. |
| Housing Material | Die-cast aluminium |
| Mounting threads for test stand | 4 x M4, Depth 8 mm |
| Plug Gauge | M6 Male Thread |
| Operating Temperature | 32° to 100°F (0° to 40°C) |
| Air Humidity | 20 – 80 % RH |
| Dimensions | 181 x 72 x 32 mm (LxWxH) |
| Weight, net (gross) | Approx. 460 g (approx. 1300 g) |
| Warranty | 2 Years |
Ranges
| Model | DST-0.4 | DST-1 | DST-4 | DST-11 | DST-44 | DST-110 | DST-220 |
| Capacity | 7.000 ozf
200.0 gf
2.000 N | 18.00 ozf
500.0 gf
5.000 N | 4.400 lbf
2.000 kgf
20.00 N | 11.00 lbf
5.000 kgf
50.00 N | 44.00 lbf
20.00 kgf
200.0 N | 110.0 lbf
50.00 kgf
500.0 N | 220.0 lbf
100.0 kgf
1000 N |
| Resolution | 0.001 ozf
0.1 gf
0.001 N | 0.01 ozf
0.1 gf
0.001 N | 0.001 lbf
0.001 kgf
0.01 N | 0.01 lbf
0.001 kgf
0.01 N | 0.01 lbf
0.01 kgf
0.1 N | 0.1 lbf
0.01 kgf
0.1 N | 0.1 lbf
0.1 kgf
1 N |
