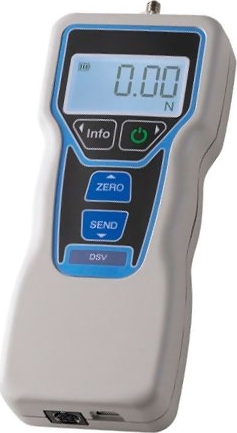

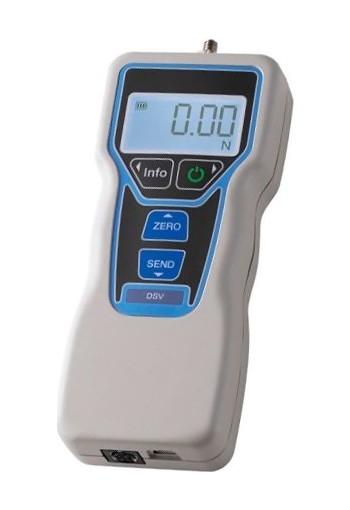

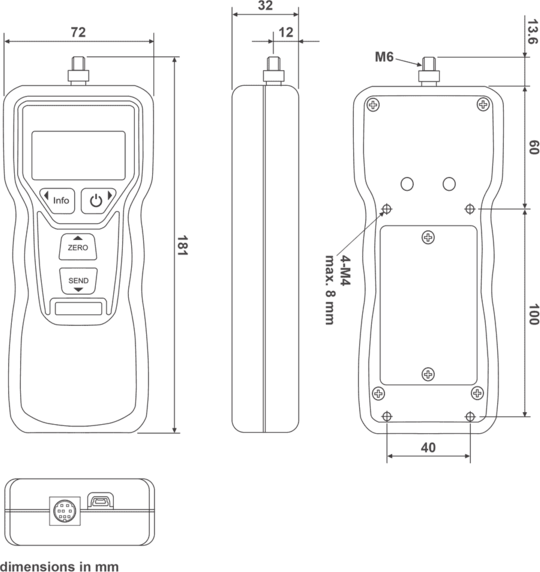

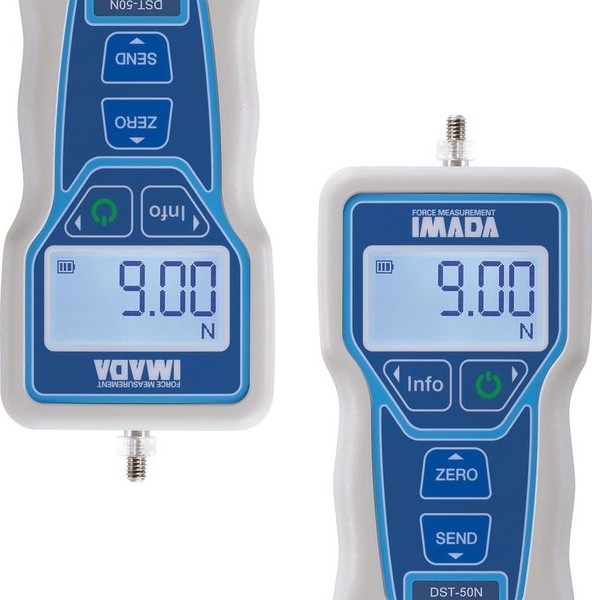

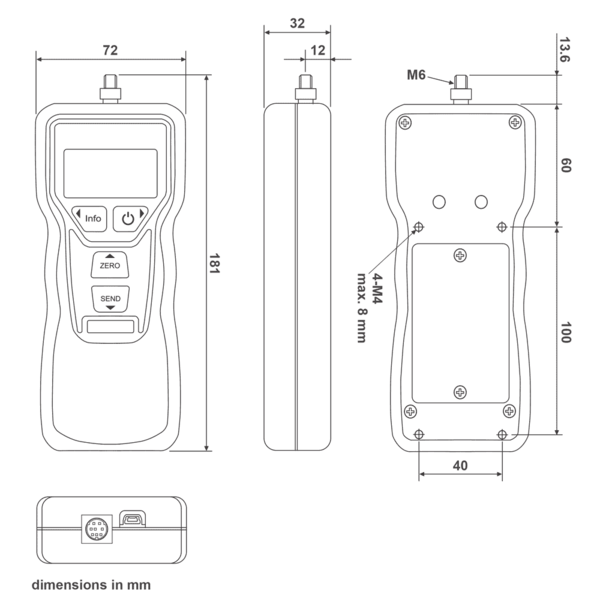

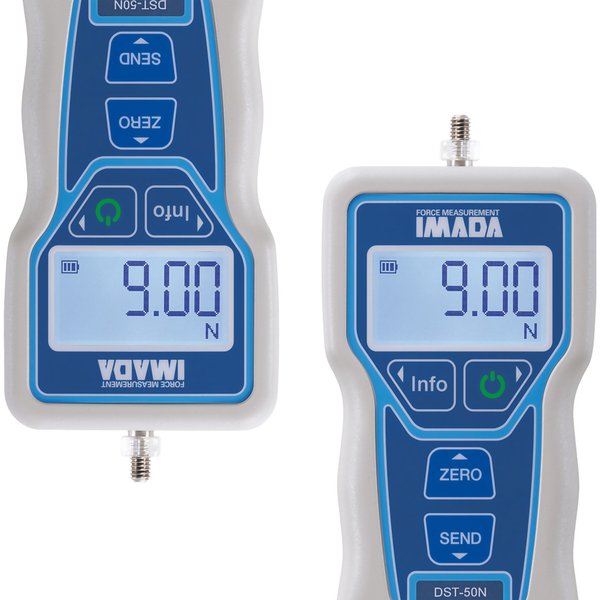

Vector Force Gauge with Output

---

Built-in tilt sensor with audible alert

---

Accuracy ± 0.2%

---

Measure force in lbs, Kgs or N

---

7 Ranges up to 220 lbs

---

The DSV digital vector force gauges are simple-to-use basic gauges featuring user-friendly menu operation. The built-in tilt sensor with audible alert warns users of deviations from the reference angle. Selections including unit and measuring mode can be locked to prevent accidental changes.

Kit Contents

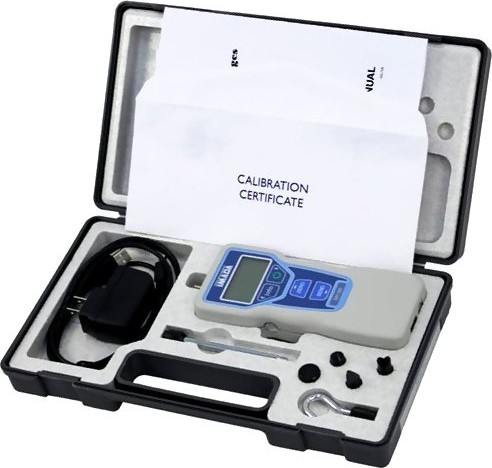

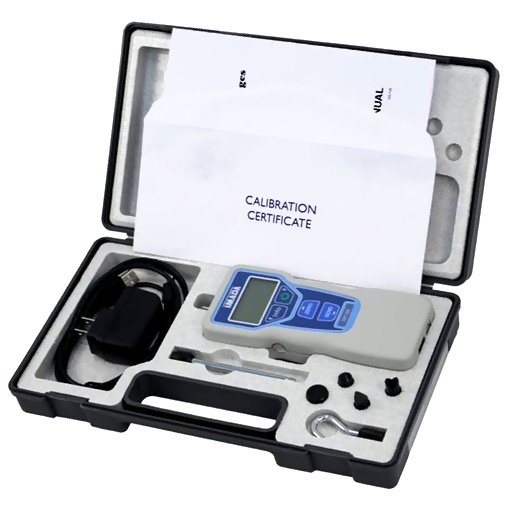

Imada DSV Vector Force Gauge NIST Traceable Calibration Cert Set of six standard attachments AC adapter/charger Instruction Manual Carrying Case

Features

• Includes NIST Traceable Calibration Certificate - ISO-17025 calibration certificate option available

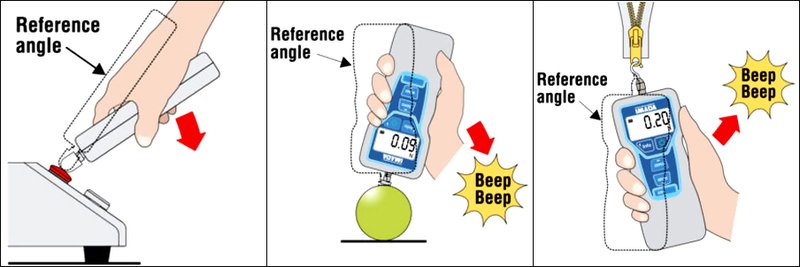

• Tilt Sensor: Alerts user to deviation from the reference angle
• Backlit LCD display with user-friendly menus
• Ergonomic, durable, heavy-duty metal construction
• 30,000/sec ultra-high sampling rate
• 1,000 Data memory; automatically calculates Max, Min, Avg statistics
• USB and RS-232C output
• Selectable real time or peak mode operation
• Setting security lock prevents accidental changes
• Overload capacity 200% F.S.; Display flashes at overload limit
• Runs on internal Ni-MH batteries (user replaceable) or AC adapter; Charges with USB port or portable charger
• 2-Year Warranty

Specifications

Tilt Alarm	OFF, Strict (4°), Normal (8°) or Loose (18°)
Accuracy	± 0.2% F.S., ± 1 LSD
Selectable Units	lbf(ozf), kgf(gf) or Newtons
Display	4 digit backlit LCD
Overload Capacity	Approx. 200% of F.S.
Overload Alarm	Audible alarm at 90% of capacity; Audible alarm and indicator flashes beyond 110% of F.S.
Sampling Rate	30,000/second
Internal Memory	1,000 data with statistics
Battery Life	Approx. 30 hours backlight off Approx. 14 hours backlight on 4.5 hours required for full charge
Battery Indicator	Battery icon displays three levels of charge
Setpoints	Programmable high/low setpoints with OK indicator
Outputs	USB, RS-232C
Operating Temp.	32° to 100°F (0° to 40°C)
Accessories Included	AC adapter, Attachments (hook, flat tip, conical tip, chisel tip, notched tip, extension shaft), Carrying Case

Ranges

Model	Capacity	Resolution
DSV-0.4	7 ozf | 200 gf | 2 N	0.001 ozf | 0.1 gf | 0.001 N
DSV-1	17 ozf | 500 gf | 5 N	0.01 ozf | 0.1 gfv0.001 N
DSV-4	4.4 lbf | 2 kgf | 20 N	0.001 lbf | 0.001 kg | 0.01 N
DSV-11	11 lbf | 5 kgf | 50 N	0.01 lbf | 0.001 kgf | 0.01 N
DSV-44	44 lbf | 20 kgf | 200 N	0.01 lbf | 0.01 kgf | 0.1 N
DSV-110	110 lbf | 50 kgf | 500 N	0.1 lbf | 0.01 kgf | 0.1 N
DSV-220	220 lbf | 100 kgf | 1000 N	0.1 lbf | 0.1 kgf | 1 N
