Calculates static and kinetic coefficients of friction

---

Configurable sled weight

---

1,000-point data memory and statistics

---

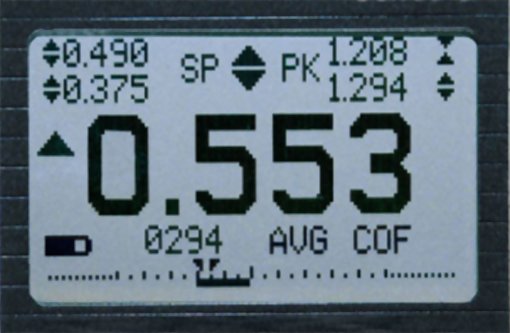

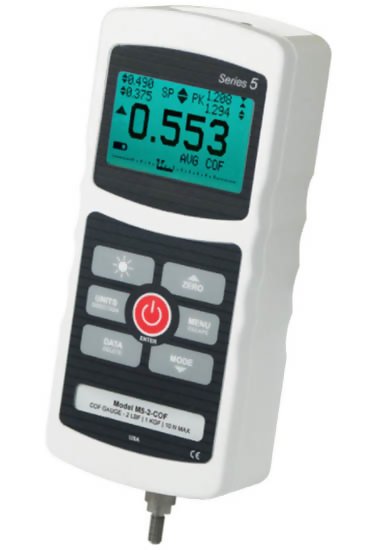

The Mark-10 M5-2-COF Coefficient of Friction Gauge is an integral part of a COF testing system, typically including a motorized test stand and COF fixture. With a capacity of 2 lbF [10 N], the gauge can be used to measure friction for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients are displayed on the backlit LCD, and are calculated from a user-programmable sled weight.

Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. Configurable password protects against unauthorized changes to settings.

The Mark-10 M5-2-COF Coefficient of Friction Gauge may also be used for a number of common tension and compression testing applications.

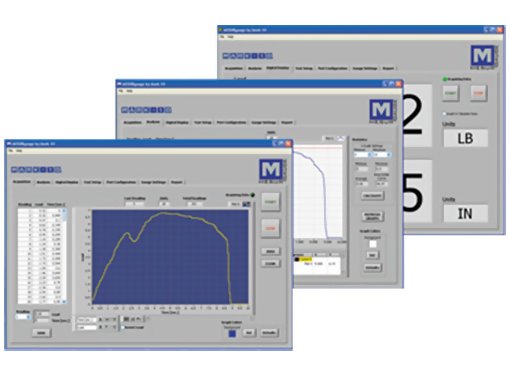

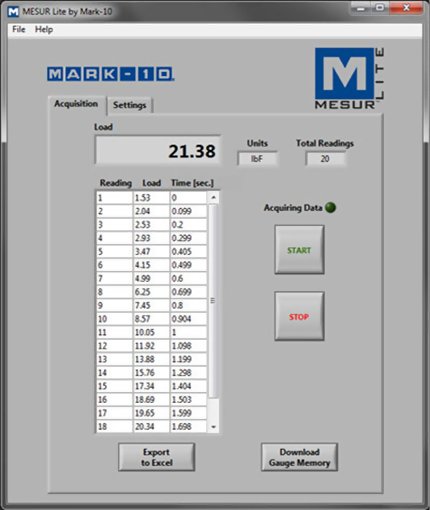

The Mark-10 M5-2-COF Coefficient of Friction Gauge includes MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data saved in the gauge's memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.

Kit Contents

Mark-10 M5-2-COF Coefficient of Friction Gauge Carrying case with hook Chisel Cone V-groove Flat Extension rod

Universal voltage AC adapter Battery Quick-start guide USB cable Resource CD NIST-traceable certificate of calibration with data.

Features

• Calculates static and kinetic coefficients of friction
• 1,000-point data memory with statistics and outputs
• USB, RS-232, Mitutoyo, and analog outputs

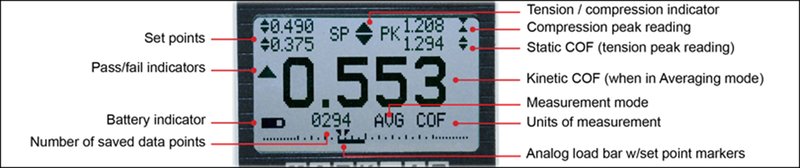

• Live load bar graph with set point markers
• Programmable set points, with indicators and outputs
• Configurable audio alarms and key tones

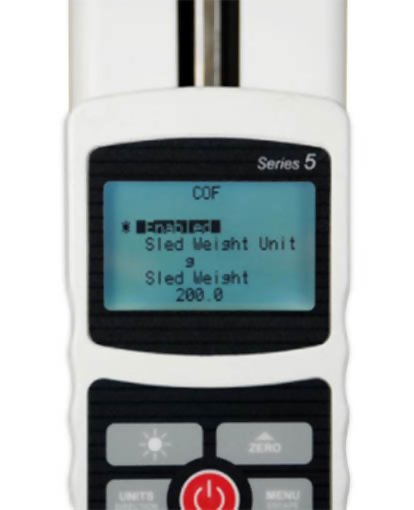

• Configurable sled weight (100 - 1000 g)
• Password protection, configurable for individual keys and calibration

Specifications

Accuracy	±0.1% of full scale
Sampling rate	7,000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Outputs	USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: Â±1 VCD, ±0.25% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines.
Configurable Settings	COF sled weight, digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload	150% of full scale (display shows "OVER" at 110% and above)
Weight	1.0 lb [0.45 kg]
Warranty	3 years

Included Accessories

Extension Rods	G1024		V-Groove	G1027
Cone	G1026		Flat	G1029
Chisel	G1025		Hook	G1028

Related Products

ESM301 Programmable Test Stand with PC Control Selectable speed units of measurement (in/min & mm/min) Stepper motor-driven, produces 0% speed variation load

G1086 Coefficient Of Friction Fixture Maximum sled travel: 10.5 in (265 mm)
