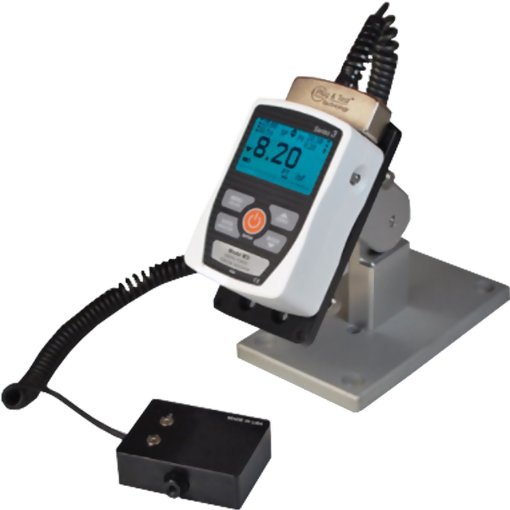

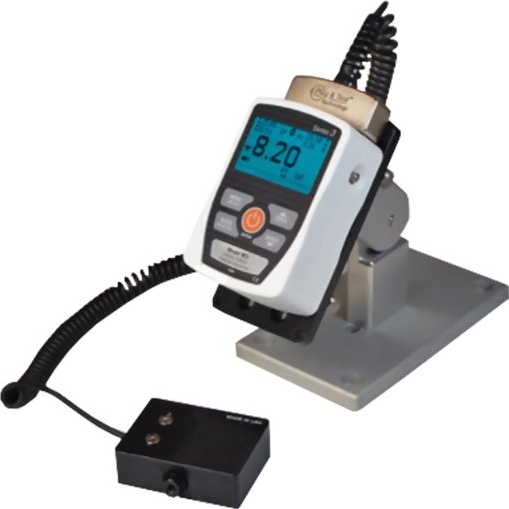

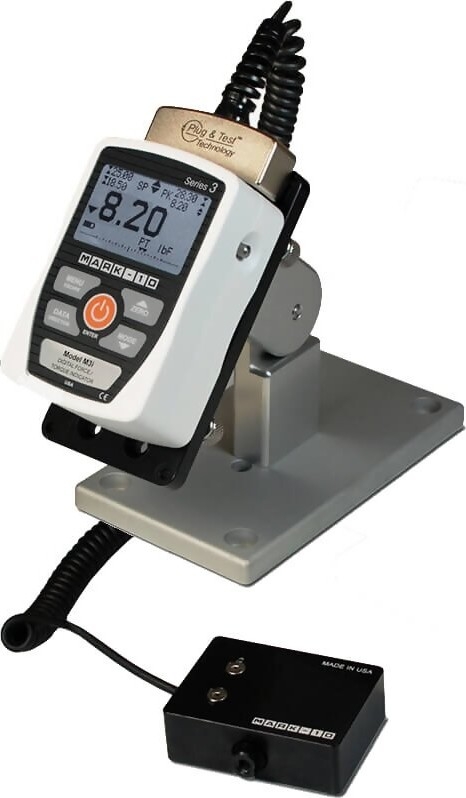

Mark-10 Series 3I Force and Torque Indicator Remote Sensor Force
2,000 Hz sampling rate
±0.2% accuracy
USB output

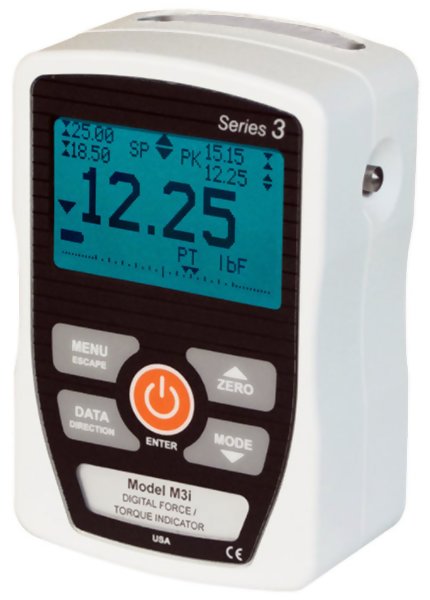

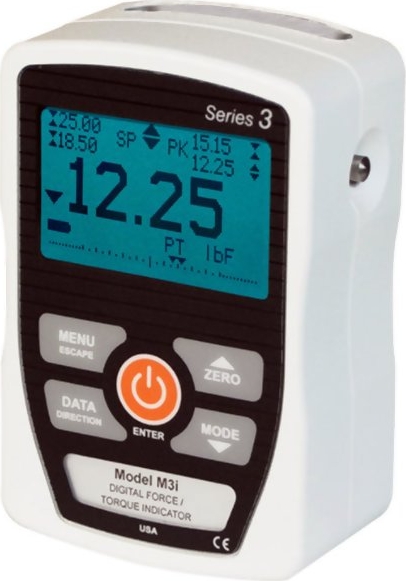

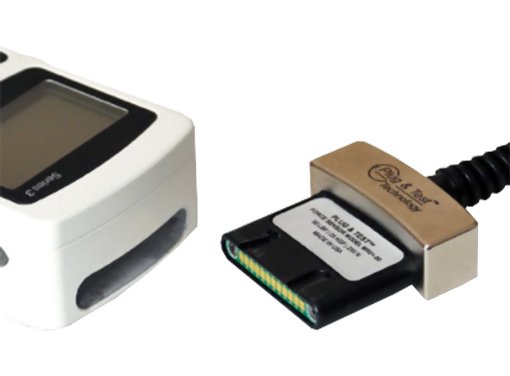

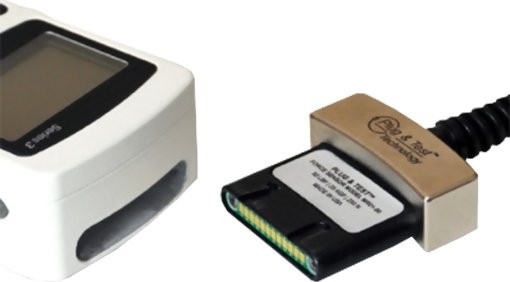

The Mark-10 Series 3I Force and Torque Indicator is designed to work with a wide range of Mark-10 remote force and torque sensors (see page 3). With exclusive Plug & Test technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force / torque indicator.

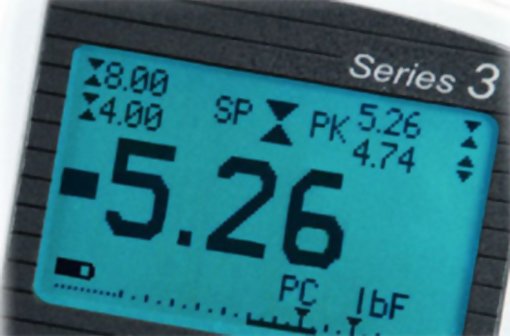

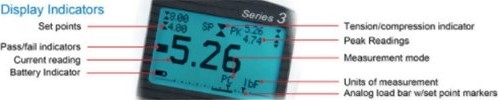

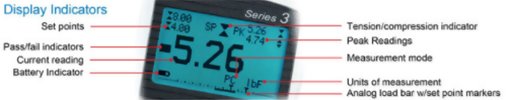

The Mark-10 Series 3I Force and Torque Indicator shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.
The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

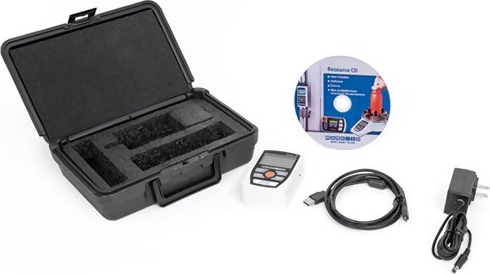

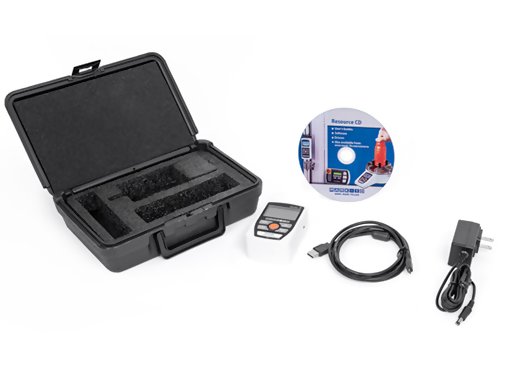

Kit Contents
- Mark-10 Series 3I Force and Torque Indicator
- Carrying case
- USB cable
- AC adapter
- Battery
- Resource CD
- Three (3) year warranty
| |
Features

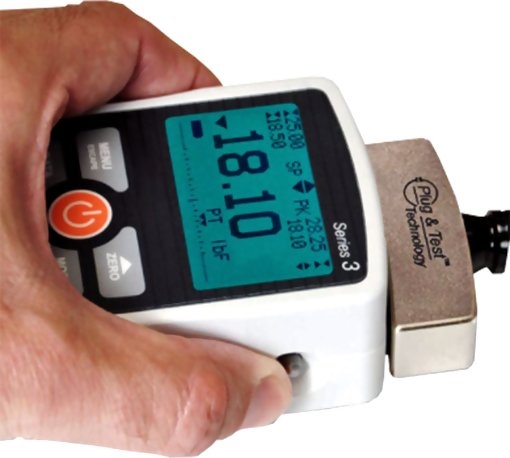

- Interchangeable force and torque sensors through Plug & Test™technology
- High-speed 2,000 Hz sampling rate
- Peak readings and set points always displayed
- Ultra-compact size
- External trigger mode - for switch contact testing or remotely stopping display update
- Programmable set points with pass/fail audible and visual indicators
- USB data output
- Live load bar graph with set point markers
- Configurable audio alarms and key tones
- Programmable auto-shutoff
- Configurable audio alarms and key tones
- Battery or AC operation
- MESURTM Lite data collection software included
- CE mark
Specifications
| Accuracy | ±0.2% of full scale + sensor |
| Sampling rate | 2,000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery life | Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use |
| USB Output | Configurable to 115,200 baud |
| Configurable settings | Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration |
| Safe overload | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight | 0.7 lb (0.3 kg) |
| Environmental requirements | 40 – 100°F, max. 96% humidity, non-condensing |
| Warranty | 3 years (see individual statement for further details) |
Related Products

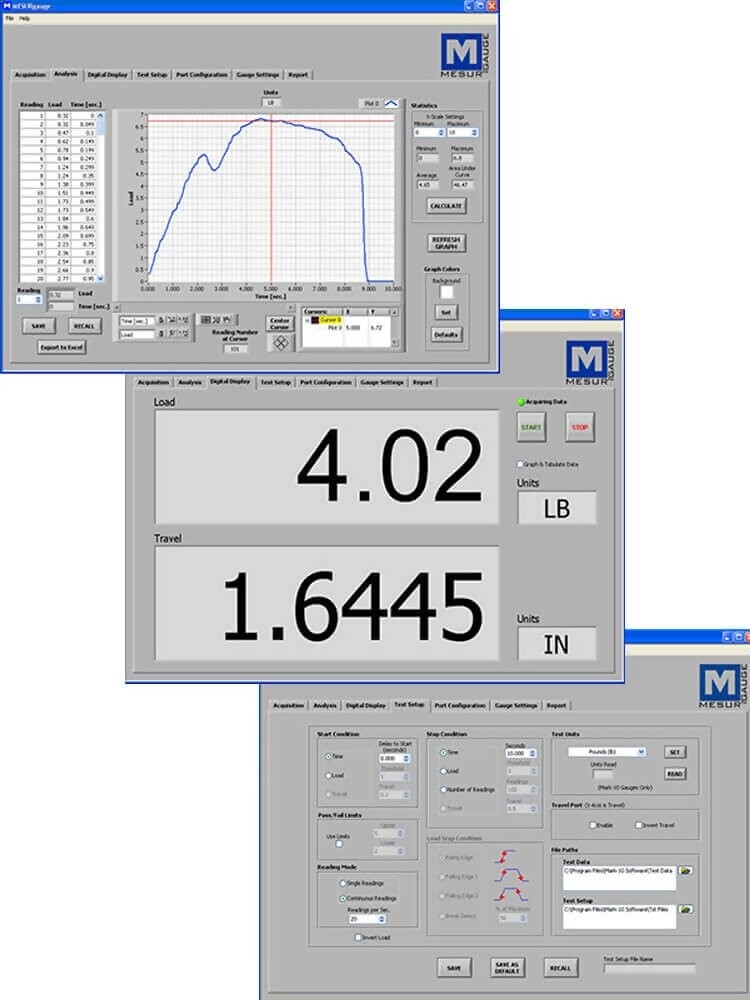

MESURgauge
Mesurgauge Load & Travel Analysis Software | |

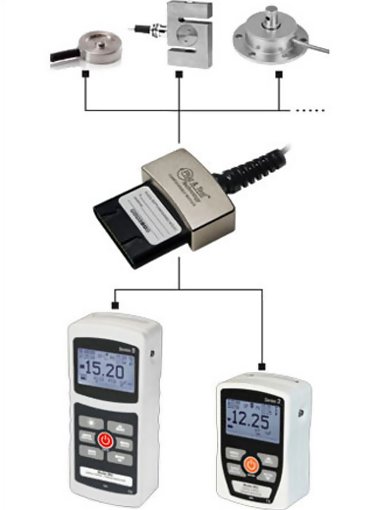

PTA
