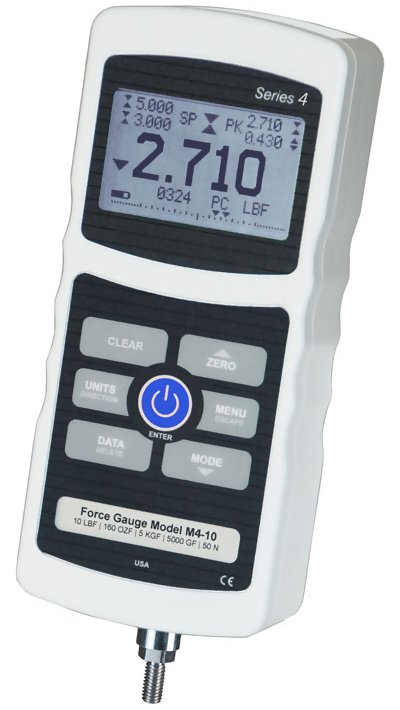

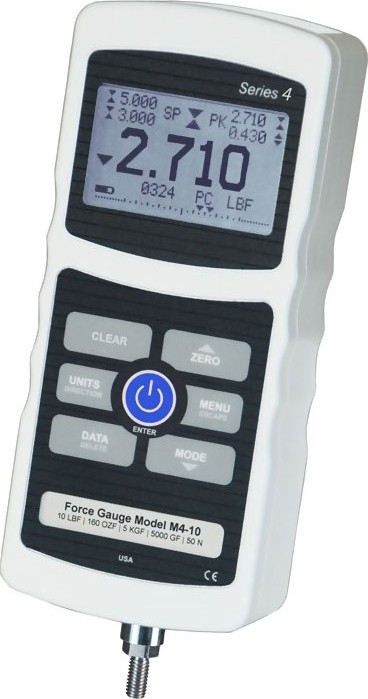

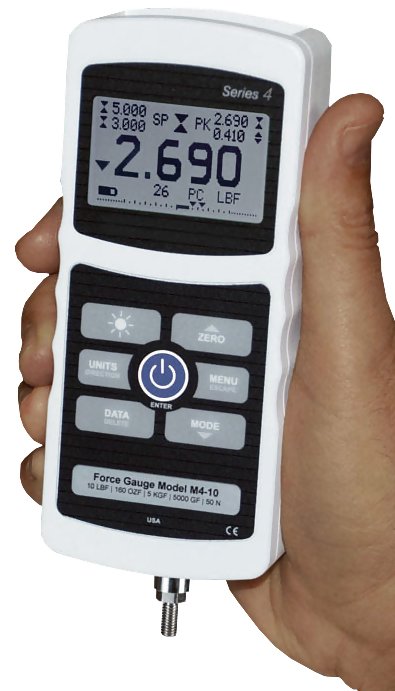

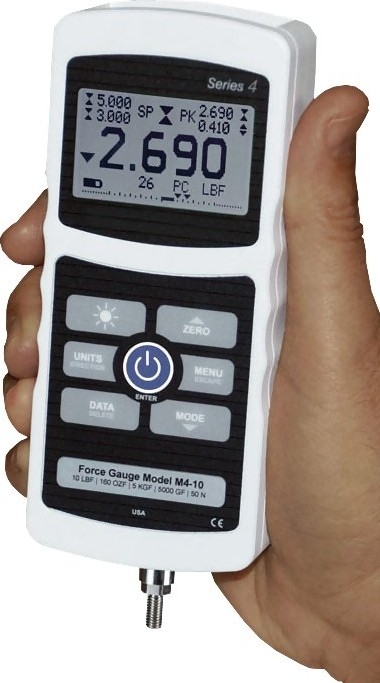

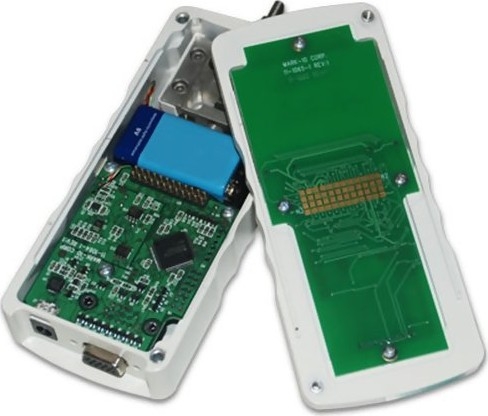

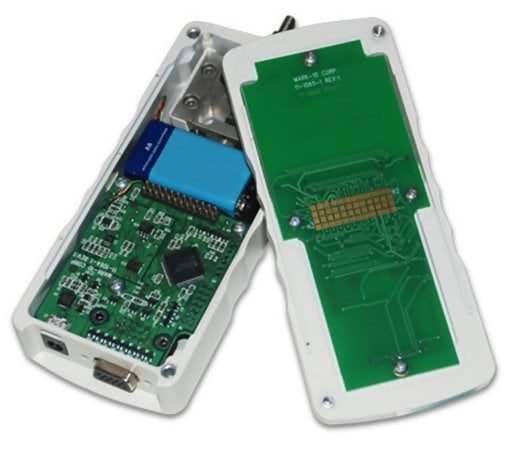

    Mark-10 Series 4 Advanced Digital Force Gauge
    3,000 Hz peak sampling rate
    ±0.2% accuracy
    50 point data memory and statistics
    3 Year Warranty

    Measures Tension &
    Compression Force
    (Push / Pull)
    11 Ranges up to 500 lbs

    Mark-10 Series 4 Advanced Digital Force Gauge with Output are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is ±0.2% of full scale ±1 digit, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

    On-board data memory for up to 50 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

    An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.

    Series 4 gauges include MESUR Lite data acquisition software. MESUR Lite tabulates continuous or single point data from Series 5 and 4 gauges. Data saved in the gauge’s memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.


    line
    Kit Contents
    line

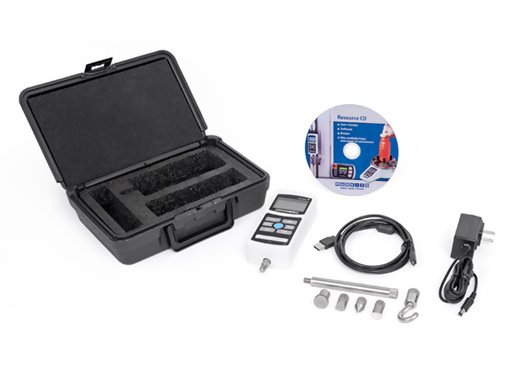

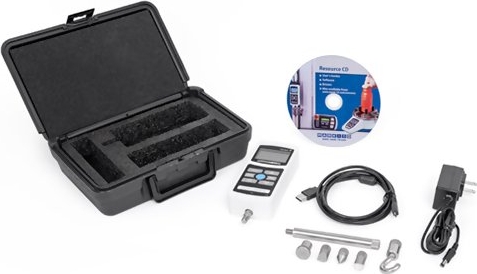

    • Mark-10 Series 4 Advanced Digital Force Gauge
    • Extension rod
    • Hook
    • Cone
    • Chisel
    • V-Groove
    • Flat
    • Coupling
    • Carrying case
    • USB cable
    • AC adapter
    • Battery
    • Resource CD
    • Certificate of calibration with data
    • Three (3) year warranty


    line
    Features
    line

    • High-speed 3,000 Hz sampling rate

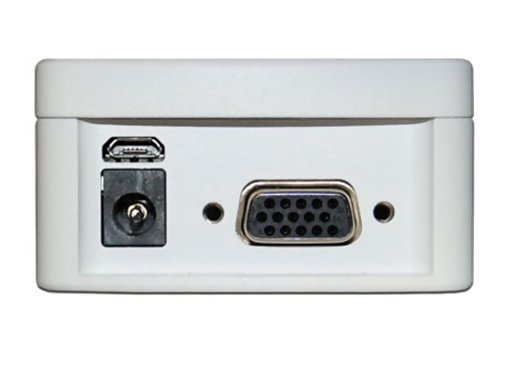

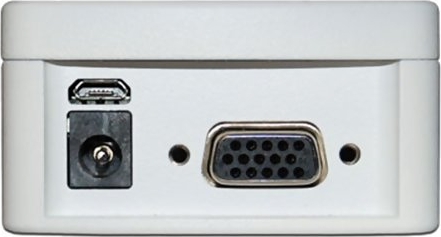

    • USB, RS-232, Mitutoyo, and analog outputs

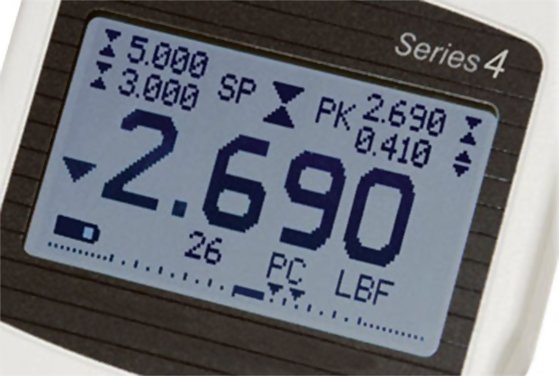

    • Large backlit graphic display
    • 50-point data memory with statistics (min, max, mean, standard deviation) and outputs
    • Live load bar graph with set point markers
    • Programmable set points, with alarms and outputs
    • Peak readings and set points always displayed
    • 5 selectable units of measurement
    • Configurable audio alarms and key tones
    • Password protection, configurable for individual keys and calibration


    line
    Specifications
    line

    Accuracy±0.2% of full scale
    Sampling rate3,000 Hz
    PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
    Battery lifeBacklight on: up to 7 hours of continuous use
    Backlight off: up to 24 hours of continuous use
    Measurement unitslbF, ozF, gF, kgF, N, kN, mN (depending on model)
    OutputsUSB / RS-232: Configurable up to 115,200 baud.
    Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
    Analog: ±1 VDC, ±0.25% of full scale at capacity,
    General purpose: Three open drain outputs, one input.
    Set points: Three open drain lines.
    Safe overload200% of full scale (display shows "OVER" at 110% and above)
    WeightM4-012 – M4-100: 1.0 lb [0.45 kg]
    M4-200 – M4-500: 1.2 lb [0.54 kg]
    Environmental requirements40 – 100°F, max. 96% humidity, non-condensing
    Warranty3 years (see individual statement for further details)


    line
    Capacity x Resolution
    line

    ModellbFozFkgFgFNkNmN
    M4-0120.12 x 0.000052 x 0.00150 x 0.020.5 x 0.0002500 x 0.2
    M4-0250.25 x 0.00014 x 0.002100 x 0.051 x 0.00051000 x 0.5
    M4-050.5 x 0.00028 x 0.005250 x 0.12.5 x 0.0012500 x 1
    M4-22 x 0.00132 x 0.021 x 0.00051000 x 0.510 x 0.005
    M4-55 x 0.00280 x 0.052.5 x 0.0012500 x 125 x 0.01
    M4-1010 x 0.005160 x 0.15 x 0.0025000 x 250 x 0.02
    M4-2020 x 0.01320 x 0.210 x 0.00510000 x 5100 x 0.05
    M4-5050 x 0.02800 x 0.525 x 0.0125000 x 10250 x 0.1
    M4-100100 x0.051600 x 150 x 0.0250000 x 20500 x 0.2
    M4-200200 x 0.13200 x 2100 x 0.051000 x 0.51x 0.0005
    M4-500500 x 0.28000 x 5250 x 0.12500 x 12.5 x 0.001


    line
    Accessories
    line

    AccessoryGauge Model
    M4-012 – M4-20M4-50 – M4-100M4-200 – M4-500
    Extension RodsG1024G1024G1031
    ConeG1026G1026G1033
    ChiselG1025G1025G1032
    V-GrooveG1027G1027G1034
    FlatG1029G1029G1036
    HookG1028G1038G1035
    CouplingG1039G1037


    line
    Optional Equipment
    line

    A wide range of test stands and gripping fixtures

    Data collection & motion control software

    • Consider MESUR®gauge Plus for force vs. travel or force vs. time data acquisition, plotting, analysis, reporting, as well as motion control. The software coordinates motor start / stop and data acquisition with one click.
    • Note: MESUR®gauge Plus does not require any optional test stand functions, such as PC Control. If force vs. travel vs. time output is required, order the Travel Indication option. See below section for details.

    Output cables

    • Send test data to a PC, statistical printer, or other data collector for further analysis.

    Eye end adapters

    • Allow for quick grip installation and removal, and prevent grip rotation.
    • Mount to common test frames, load cells, and force gauges.

    Mounting plate

    • For mounting Mark-10 gauges to a fixture or testing system. Includes mounting hardware.
    • Note: Gauge mounting plates are included with Mark-10 test stands.


    line
    Related Products
    line

    ESM301
    Programmable Test Stand with PC Control

    • Selectable speed units of measurement (in/min & mm/min)
    • Stepper motor-driven, produces 0% speed variation load
    related

    line

    ES30
    Precision Hand Wheel Test Stand

    • 200lb Capacity
    • Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
    • Removable base plate with 25 #10-32 threaded holes for fixture mounting
    related


    line
    Downloads
    line

    Mark-10 Series 4 Advanced Digital Force Gauge - Data Sheet
    Mark-10 Series 4 Advanced Digital Force Gauge - Instruction Manual
    Mark-10 Digital Force Gauge - Comparison Chart
