Mark-10 Series 5 Advanced Digital Force Gauge

See More Digital Force Gages

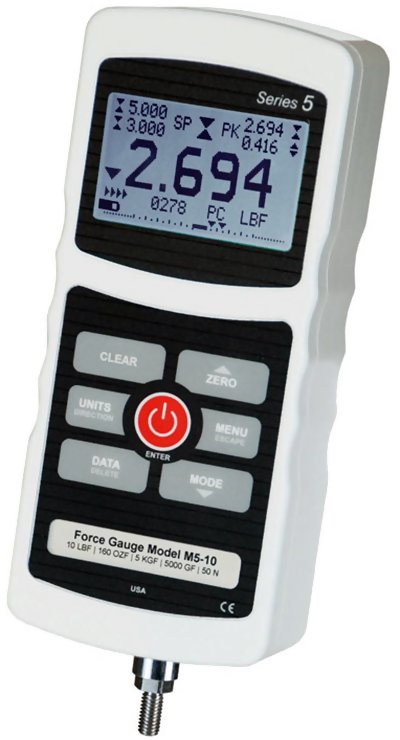

Mark-10 Series 5 Advanced Digital Force Gauge

See More Digital Force Gages
Price:
$1,250.00 - $1,765.00
    warrenty

    Product Description
    Mark-10 Series 5 Advanced Digital Force Gage, Mitutoyo, and analog outputs
    7,000 Hz peak sampling rate
    ±0.1% accuracy
    1,000 point data memory and statistics
    Reversible display

    Measures Tension &
    Compression Force
    (Push / Pull)
    11 Ranges up to 500 lbs

    The Mark-10 Series 5 Advanced Digital Force Gage are designed for tension and compression force testing in quality control, manufacturing, and R&D areas. A range of capacities from 0.12 lb to 500 lb (0.5 N to 2500 N) is available to address numerous applications in the medical device, pharmaceutical, packaging, consumer products, automotive, aerospace, and other industries.

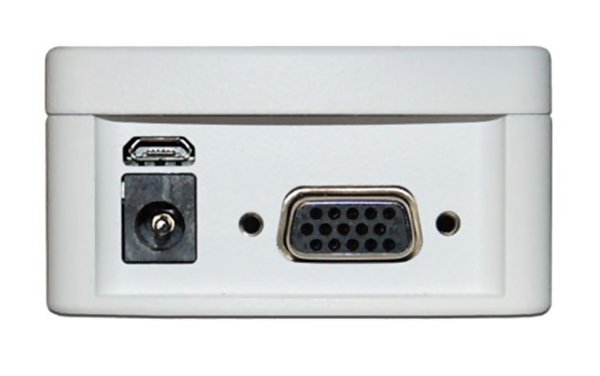

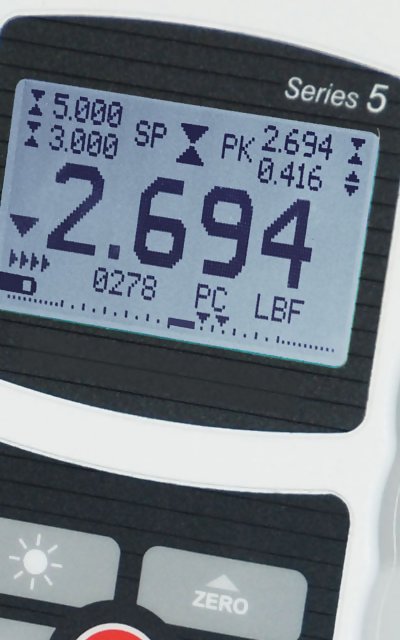

    The Mark-10 Series 5 Advanced Digital Force Gage feature an industry-leading peak sampling rate of 7,000 Hz, producing accurate results even for quick-action tests. Accuracy is ±0.1% of full scale ±1 digit, and resolution is 1/5000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

    On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

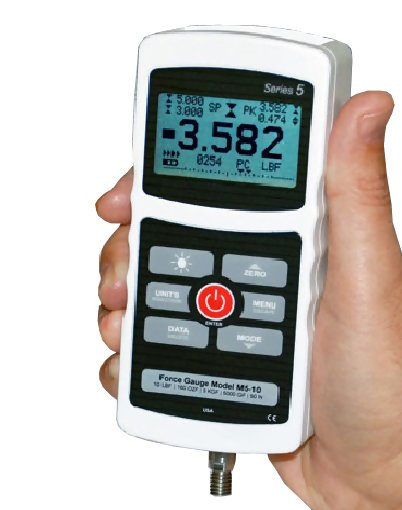

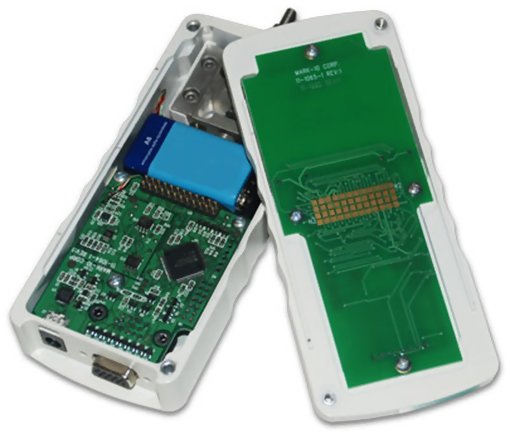

    The Series 5’s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. The housing may be reversed in order for the load cell shaft to be oriented up or down, while the display and buttons remain upright.


    line

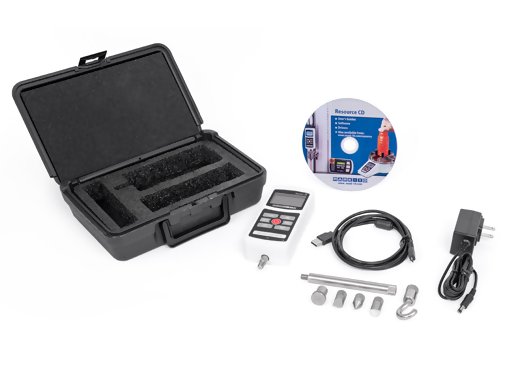

    Kit Contents
    line

    • Mark-10 Series 5 Digital Force Gauge
    • Extension rod
    • Hook
    • Cone
    • Chisel
    • V-Groove
    • Flat
    • Coupling
    • Thread adapter
    • Carrying case
    • USB cable
    • AC adapter
    • Battery
    • Resource CD
    • Certificate of calibration with data
    • Three (3) year warranty


    line
    Features
    line

    • High-speed 7,000 Hz sampling rate
    • USB, RS-232, Mitutoyo, and analog output
    • Large backlit graphic display
    • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
    • Live load bar graph with set point markers
    • Programmable set points, with alarms and outputs
    • Peak readings and set points always displayed
    • Averaging mode – calculates average readings over time
    • External trigger mode – for switch contact testing or remotely stopping display update
    • Automatic data output via USB/RS-232
    • 5 selectable units of measurement
    • Configurable audio alarms and key tones
    • Password protection, configurable for individual keys and calibration


    line
    Specifications
    line

    Accuracy±0.1% of full scale
    Sampling rate7,000 Hz
    PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
    Battery lifeBacklight on: up to 7 hours of continuous use
    Backlight off: up to 24 hours of continuous use
    Measurement unitslbF, ozF, gF, kgF, N, kN, mN (depending on model)
    OutputsUSB / RS-232: Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control.
    Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
    Analog: ±1 VDC, ±0.25% of full scale at capacity,
    General purpose: Three open drain outputs, one input.
    Set points: Three open drain lines.
    Safe overload200% of full scale (display shows “OVER” at 110% and above)
    WeightM5-012 – M5-100: 1.0 lb [0.45 kg]
    M5-200 – M5-500: 1.2 lb [0.54 kg]
    M5-750 – M5-2000: 1.8 lb [0.82 kg]
    Environmental requirements40 – 100°F, max. 96% humidity, non-condensing
    Warranty3 years (see individual statement for further details)
    * Note: At 500 lbF (2,500 N) or more, force gauges are not recommended for applications involving sudden, sharp breaks. Examples include compression of brittle materials, pull testing of welds, etc. Consider an indicator with load cell instead.


    line
    Force Ranges
    line

    ModellbFozFkgFgFNkNmN
    M5-0120.12 x 0.000022 x 0.000550 x 0.010.5 x 0.0001500 x 0.1
    M5-0250.25 x 0.000054 x 0.001100 x 0.021 x 0.00021000 x 0.2
    M5-050.5 x 0.00018 x 0.002250 x 0.052.5 x 0.00052500 x 0.5
    M5-22 x 0.000532 x 0.011 x 0.00021000 x 0.210 x 0.002
    M5-55 x 0.00180 x 0.022.5 x 0.00052500 x 0.525 x 0.005
    M5-1010 x 0.002160 x 0.055 x 0.0015000 x 150 x 0.01
    M5-2020 x 0.005320 x 0.110 x 0.00210000 x 2100 x 0.02
    M5-5050 x 0.01800 x 0.225 x 0.00525000 x 5250 x 0.05
    M5-100100 x 0.021600 x 0.550 x 0.0150000 x 10500 x 0.1
    M5-200200 x 0.053200 x 1100 x 0.021000 x 0.21 x 0.0002
    M5-300300 x 0.14800 x 2150 x 0.051500 x 0.51.5 x 0.0005
    M5-500500 x 0.18000 x 2250 x 0.22500 x 0.52.5 x 0.0005
    M5-750*750 x 0.512000 x 10375 x 0.23750 x 23.75 x 0.002
    M5-1000*1000 x 0.516000 x 5500 x 0.25000 x 25 x 0.002
    M5-1500*1500 x 124000 x 20750 x 0.57500 x 57.5 x 0.005
    M5-2000*2000 x 132000 x 201000 x 0.510000 x 510 x 0.005


    line
    Included Accessories
    line

    M5-012 - M5-20M4-50 - M5-100M5-200 - M5-500
    Extension RodsG1024G1031
    ConeG1026G1033
    ChiselG1025G1032
    V-GrooveG1027G1034
    FlatG1029G1036
    HookG1028G1038G1035
    CouplingG1039G1037


    line
    Related Products
    line

    MESURgauge
    Mesurgauge Load & Travel Analysis Software

    • Sends data from a force or torque gauge and travel display to a PC for further analysis
    related

    line

    ESM301
    Programmable Test Stand with PC Control

    • Selectable speed units of measurement (in/min & mm/min)
    • Stepper motor-driven, produces 0% speed variation load
    related

    line

    ES30
    Precision Hand Wheel Test Stand

    • 200lb Capacity
    • Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
    • Removable base plate with 25 #10-32 threaded holes for fixture mounting
    related


    line
    Downloads
    line

    Mark-10 Series 5 Advanced Digital Force Gage - Instruction Manual
    Mark-10 Series 5 Advanced Digital Force Gage - Data Sheet
    Mark-10 Series 5 Advanced Digital Force Gage - Comparison Chart
