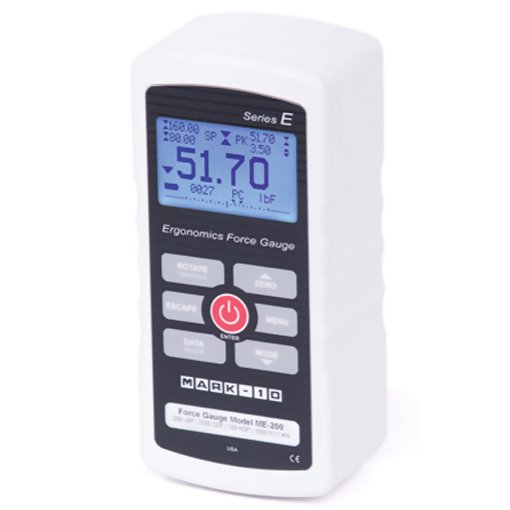

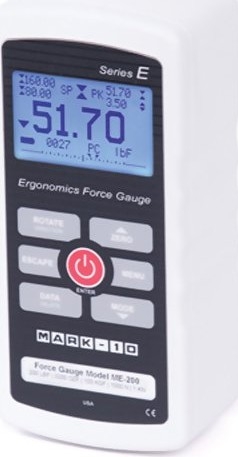

Mark-10 Series E Ergonomics Digital Force Gauge with USB Output for ergonomics analysis

---

3 Capacities up to 500 lbF

---

7,000 Hz peak sampling rate

---

±0.2% accuracy

---

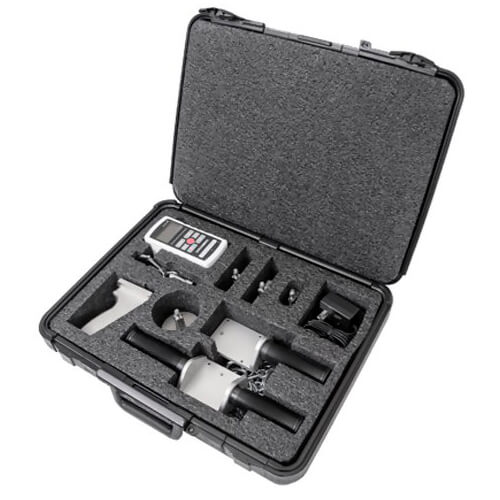

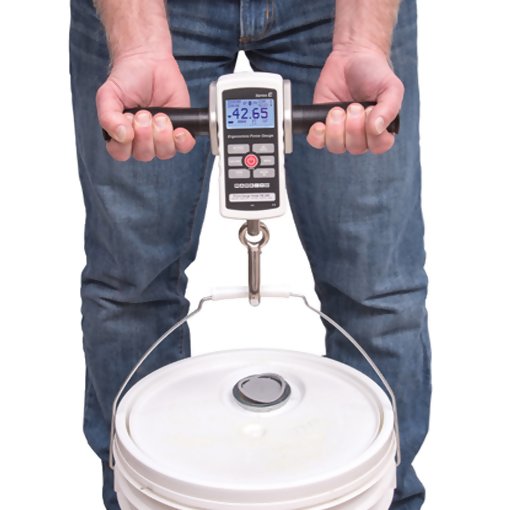

Mark-10 Series E Ergonomics Force Gauge make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Mark-10 Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.

Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.

Features

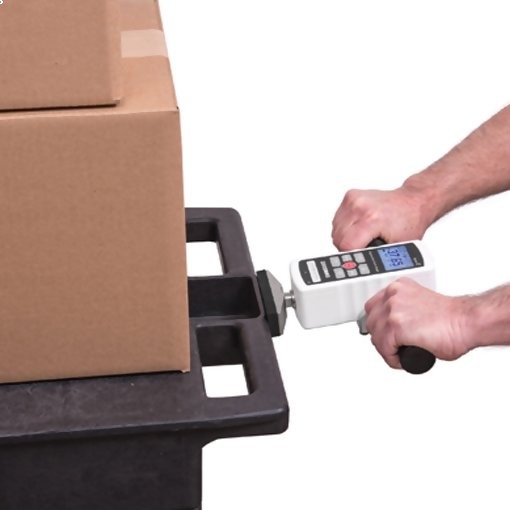

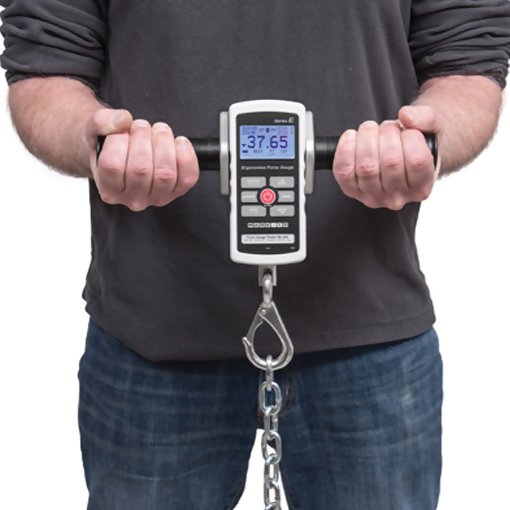

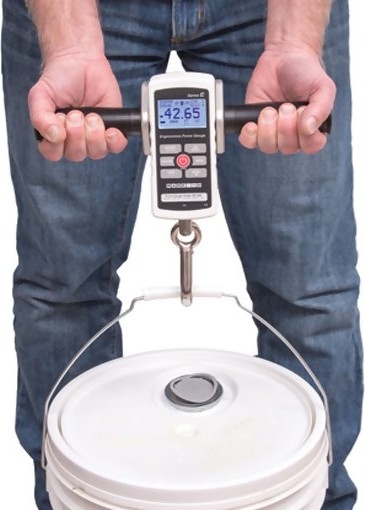

• Measure real time and peak push and pull forces
• Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
• Click-Lock™ accessory mounting technology
• USB data output
• High / low limit indicators, for pass / fail and minimum force testing
• Averaging mode calculates average force over a period of time
• 5,000-point data memory - data points may be saved individually orlogged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR™ Lite data collection software.
• Statistical calculations for saved data points

Specifications

Accuracy	±0.2% of Full Scale
Sampling rate	7,000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units	lbF, ozF, gF, kgF, N, kN (depending on model)
USB Output	Configurable up to 115,200 baud
Safe overload	200% of full scale (display shows "OVER" at 110% and above)
Weight	1.7 lb (0.8 kg)
Included items	Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR™Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data
Warranty	3 years

Ranges (Capacity / Resolution)

Related Products

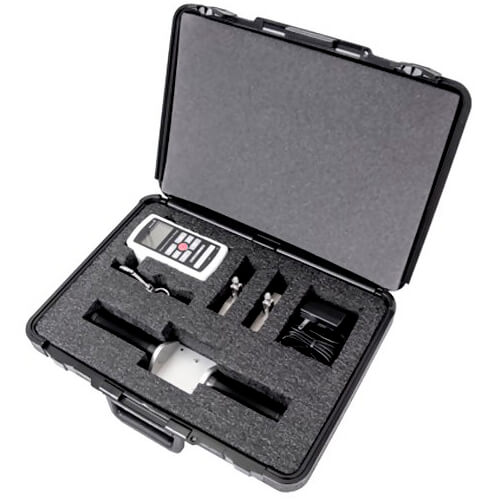

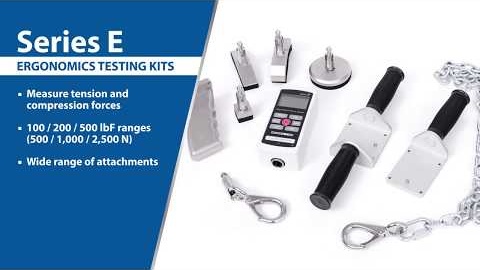

Mark-10 Series E Ergonomics Force Gauges Kit EKE Measure real time and peak push and pull forces

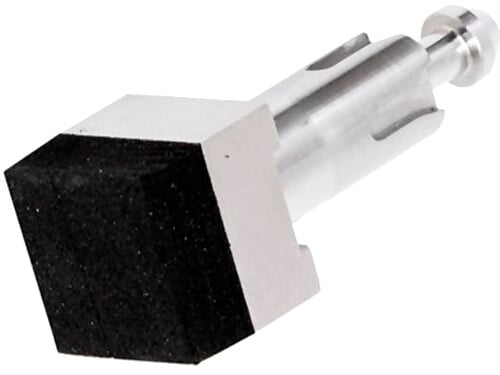

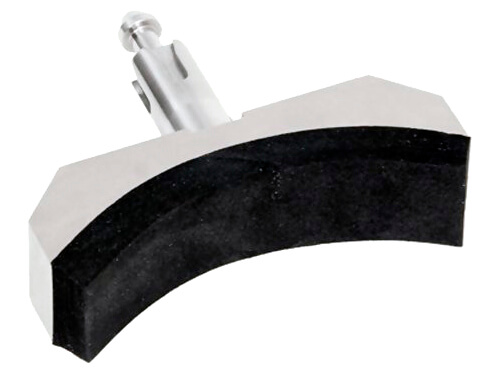

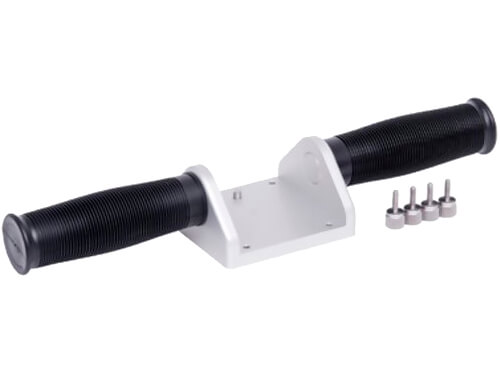

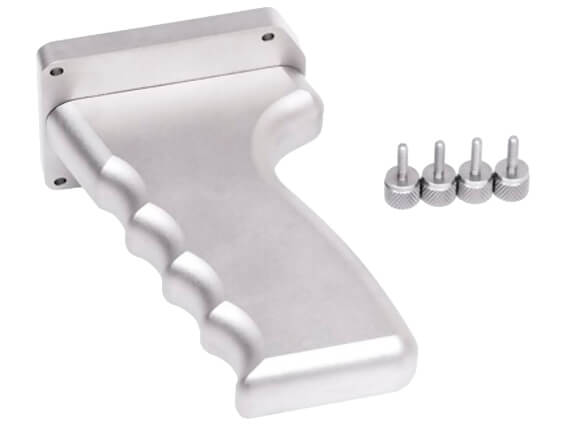

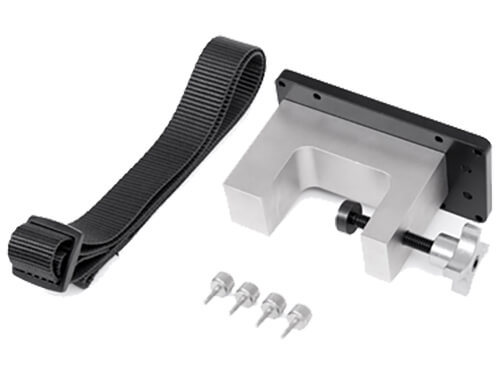

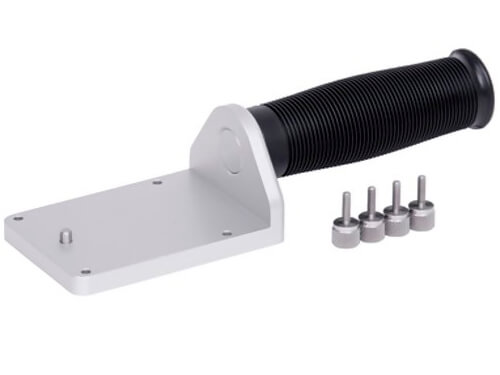

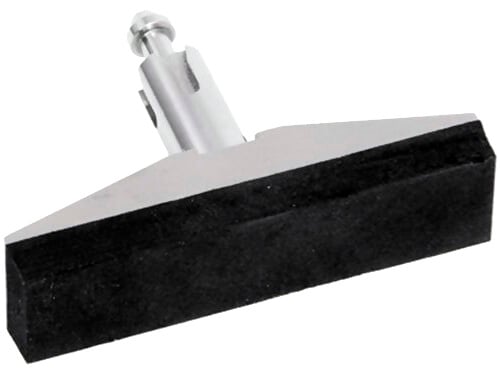

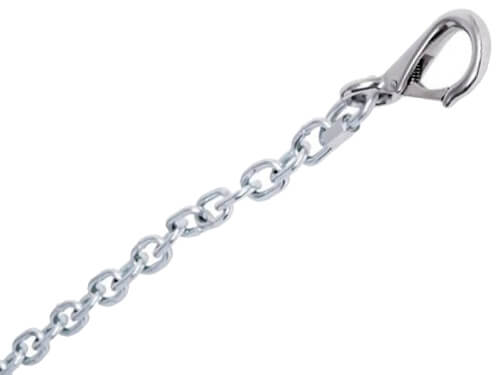

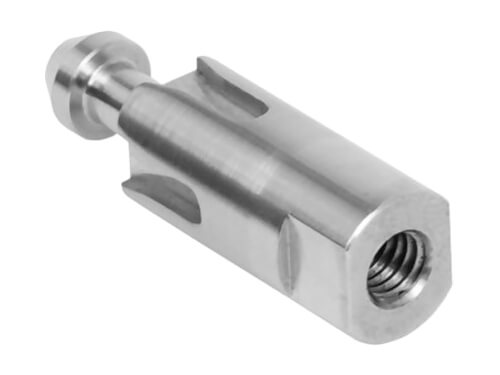

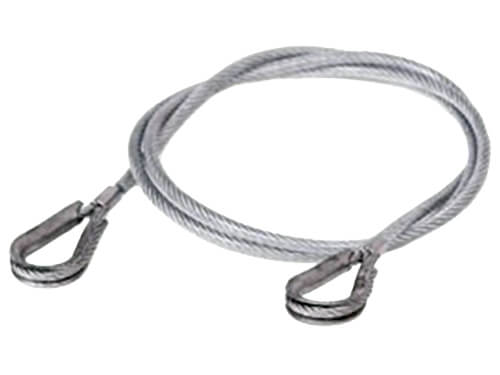

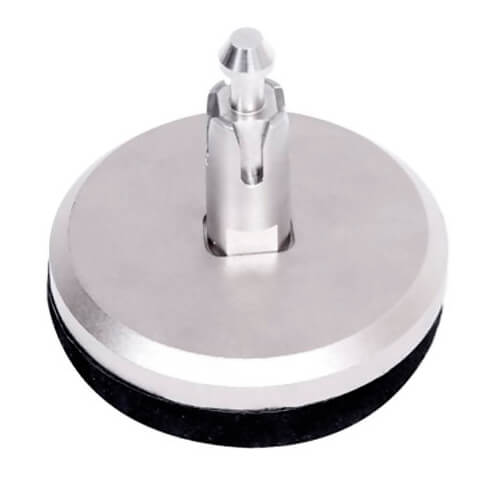

Accessories

1. Kits include a force gauge with 110V AC adapter. Add suffix ‘E’ for Euro plug, ‘U’ for UK plug, or ‘A’ for Australian plug. Ex: EKE-100-1E
2. Does not fit into carrying cases
3. Does not fit into carrying cases. Requires E1006 hook

Downloads

Mark-10 Series E Ergonomics Force Gauge ME - Data Sheet

Mark-10 Series E Ergonomics Force Gauge ME - Instruction Manual

Mark-10 Series E Ergonomics Force Gauge ME - Comparison Chart
