Product Description

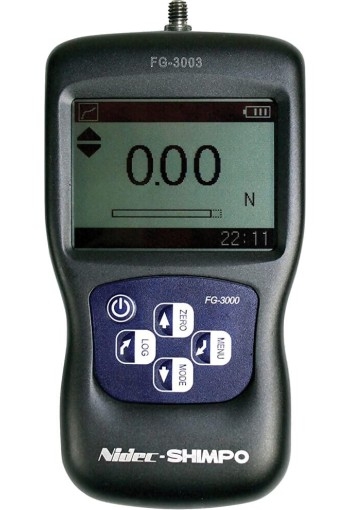

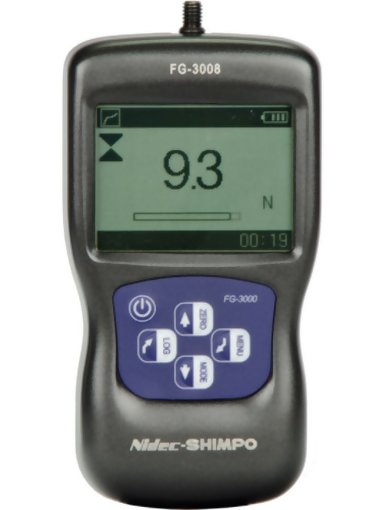

Shimpo FG-3000 Digital Force gauge with USB Output
Capacities up to 220 lbs / 100 Kg / 1000 N
±0.2% accuracy
500 data point memory

The Shimpo FG-3000 Series digital force gauges are the choice for simple, economical tension and compression testing. Combining a compact housing, yet maintaining a large back- lit LCD screen, these units are designed to fit snug in the hand for ease of use. The multi-language Shimpo FG-3000’s provide menu programming for intuitive set-up of the instrument to your desired requirements. Three modes of operation are available: Track mode displays live readings, Peak mode records the maximum values sensed during testing, and Pre-set mode, which activates user defined high and low limit set points. The programmable limits provide a fast visual and audible alert if a test passes or fails. Additionally, a comparator output enables integration of the instrument into your quality system for repetitive testing, for example production lines.

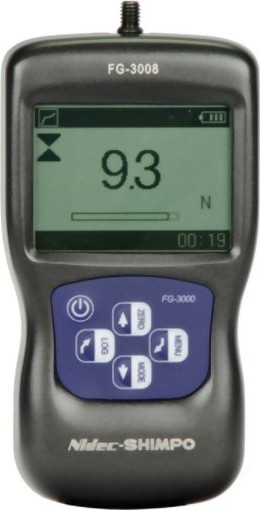

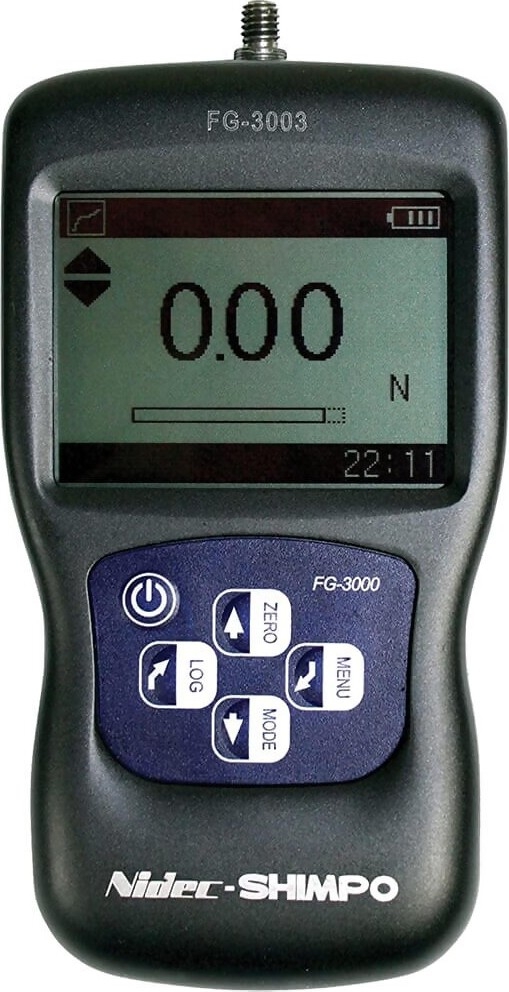

The display graphics facilitate user comprehension and operation. An analog bar graph provides perspective of current reading in comparison to the full scale range. Pass/Fail symbols provide an instant response of the testing outcome while a storage symbol acknowledges when a reading is logged. A menu-selectable display orientation streamlines switching from push to pull testing for portable or test stand applications.

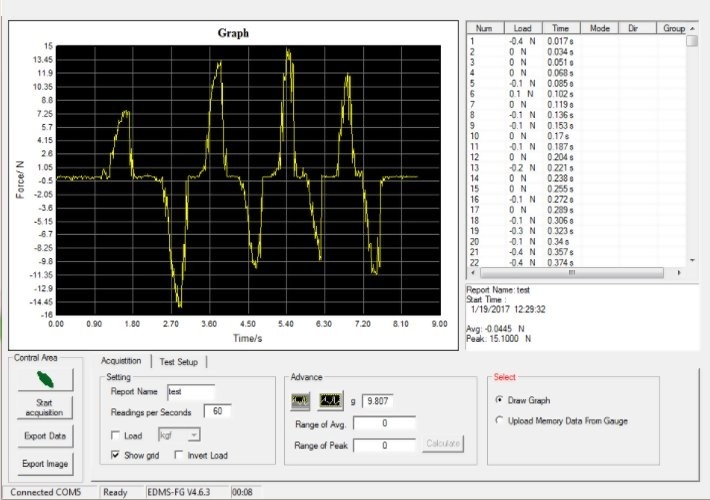

The FG-3000 series can log up to 500 readings with the push of a button for instant data retrieval. The data can be viewed on screen, sent to a printer, or uploaded on the free software program for graphing and statistical analysis


line

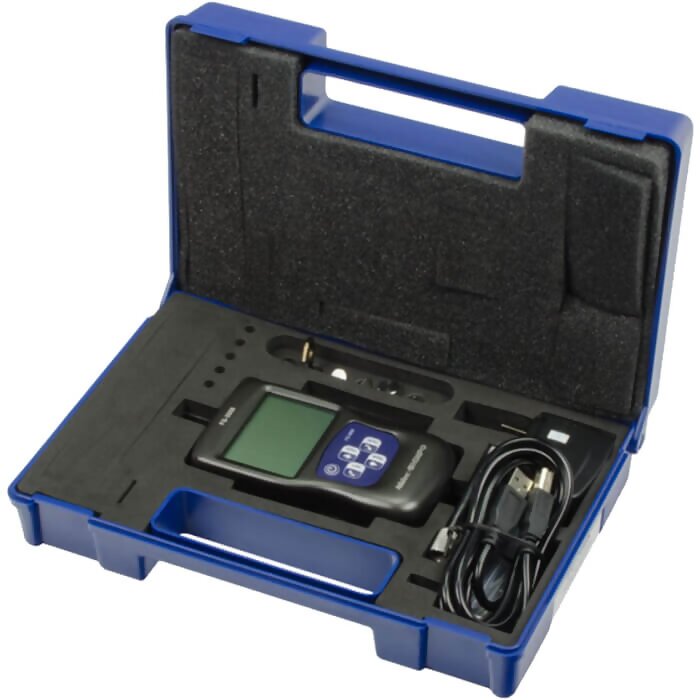

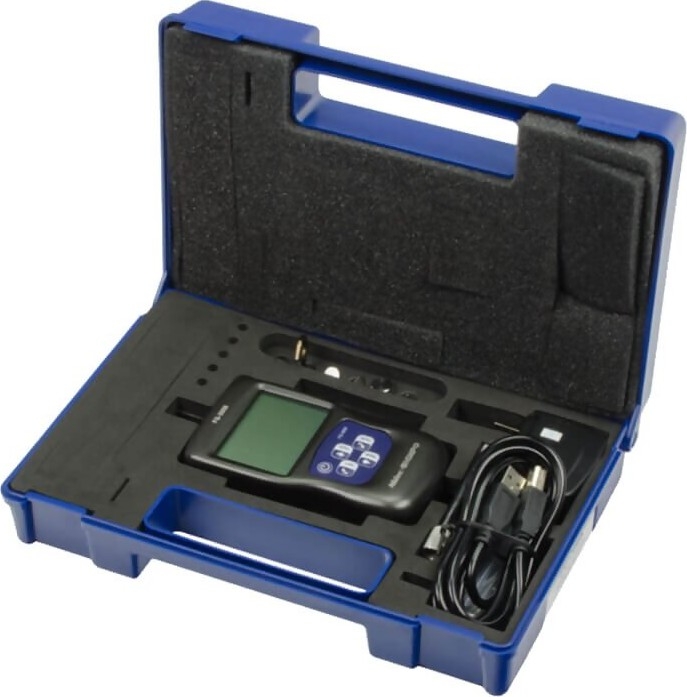

Kit Contents
line

  • Shimpo FG-3000 Digital Force Gauge
  • AC Adaptor/Charger
  • USB cable
  • Calibration cert.
  • Hook
  • Flat tip
  • Conical tip
  • Chisel tip
  • Notched tip
  • Extension shaft in an foam fitted plastic
  • Carrying case


line Features
line

  • 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
  • Three mode operation: Track, Peak & Preset Limits
  • 180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
  • Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
  • 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
  • Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
  • Comparator output function provides user with easy Pass/Fail testing system integration capabilities
  • Multi-language and engineering unit’s selection provides flexible user options
  • Field Calibration capability eliminates the need to send to a lab for calibration
  • Calibration Certificate included along with popular adapter attachments
  • Free Data logging/graphing software provided, sample rate up to 60 readings/sec


line
Specifications
line

ModelFG-3000
Accuracy± 0.3% F.S.
Selectable UnitsN, kgf, ozf, and lbf. (Depending on Range)
Overload Capacity150% of F.S. (LCD flashes beyond 110% of F.S.)
Measurement MethodPeak, Track, Preset
Data Sampling Rate1000 Hz
Display160*128 dot matrix LCD with Backlight
Display Update Rate10 times/second
Memory500 data
Set PointProgrammable high and low limits in Preset Mode
Power3.6VDC 800mAH Ni-MH rechargeable batteries
Battery LifeApproximately 16 hours continuous use per full charge
Charger / AdaptorUniversal USB/BM charger, Input: 110 ~ 240VAC
Temperature Effects<0.054% per °F (0.03% FS per °C)

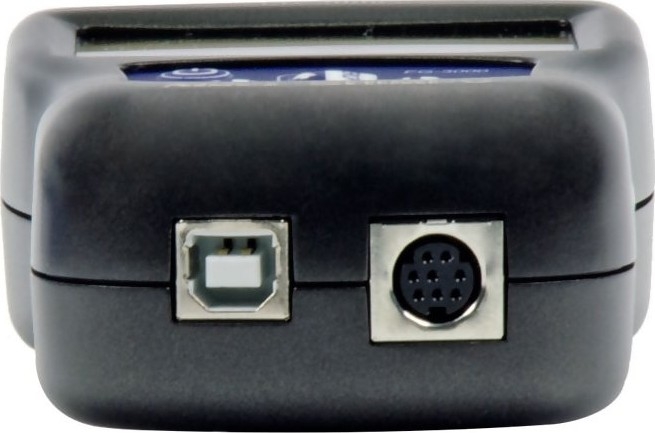

OutputsUSB, RS-232; High & Low Limit NPN’s
Operating Temperature14 to 104°F (-10 to 40°C)
Storage Relative Humidity20 to 80%
HousingAluminum

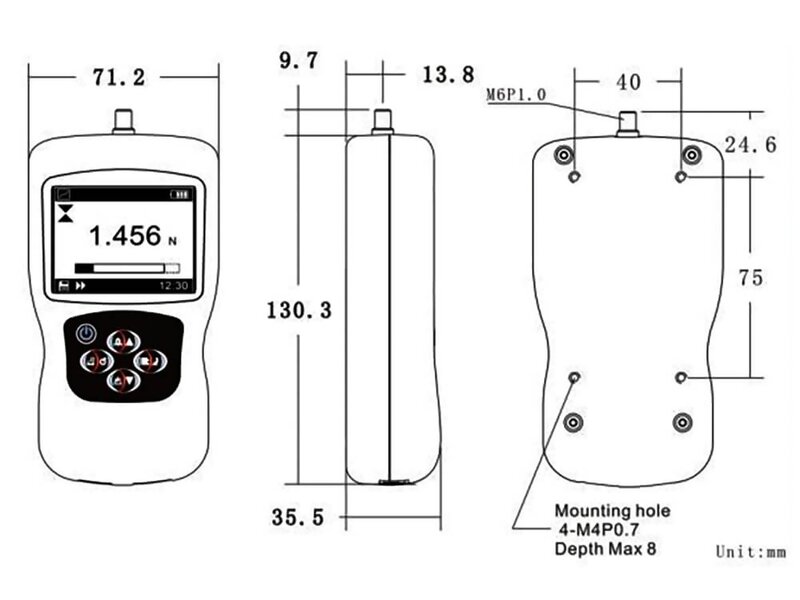

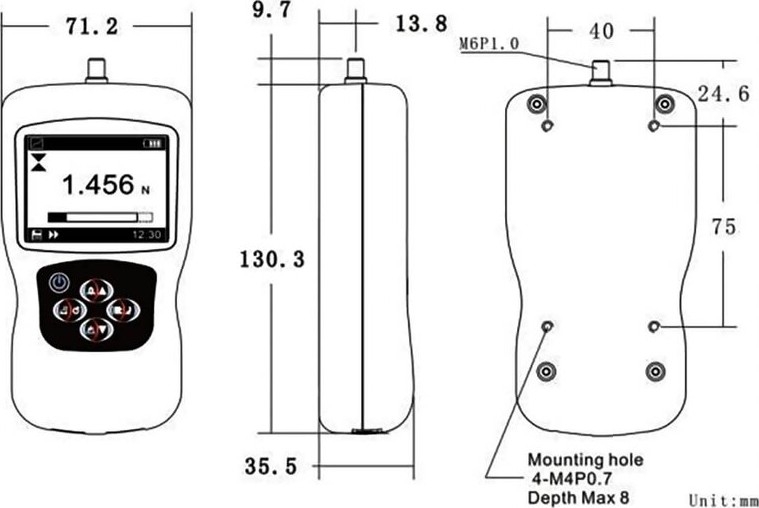

Dimensions5.5 x 2.8 x 1.4" (140 x 71 x 35.5 mm)
Product Weight0.9 lb (0.4 kg)
Warranty1-Year
Included AccessoriesAC Adaptor/Charger, USB cable, calibration cert., 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft


lineRanges
line

ModelCapacityResolution
FG-30032.2 Lb | 1 Kg | 10 N | 35 oz0.001 Lb | 0.001 Kg | 0.01 N | 0.01 oz
FG-300511 Lb | 5 Kg | 50 N | 180 oz0.01 Lb | 0.001 Kg | 0.01 N | 0.1 oz
FG-300622 Lb | 10 Kg | 100 N | 350 oz0.01 Lb | 0.01 Kg | 0.1 N | 0.1 oz
FG-3008110 Lb | 50 Kg | 500 N | 1800 oz0.1 Lb | 0.01 Kg | 0.1 N | 1 oz
FG-3009220 Lb | 100 Kg | 1000 N | 3500 oz0.1 Lb | 0.1 Kg | 1 N | 1 oz


lineDownloads
line

Shimpo FG-3000 Digital Force Gauge - Data Sheet
Shimpo FG-3000 Digital Force Gauge - Instruction Manual
Shimpo FG-3000 Digital Force Gauge - Software Manual
Shimpo FG-3000 Digital Force Gauge - Software V462 - Windows 7, 8, 8.1, 10
Shimpo FG-3000 Digital Force Gauge - Software V32
Shimpo FG-3000 Digital Force Gauge - Dimensions
