Imada GT-30-1 90° Peel Test Fixture
Maintains constant 90° angle during pull test
Perform quick and accurate 90 degree peel tests with our test fixtures.
*NOTE The Imada GT-30-1 includes slide bearing table and string bolt only. Other grips pictured are sold separately.
Mounting Options

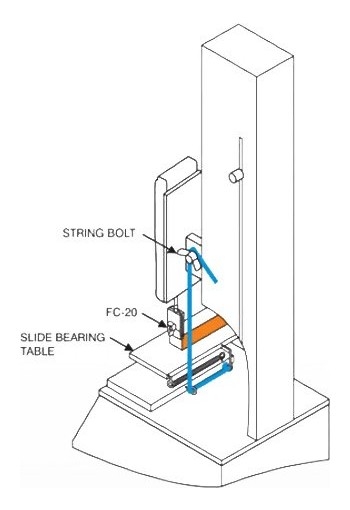

Rigid Connection - Cut the tape sample to size and affix it to the peel table, leaving one end of the tape unaffixed for gripping purposes.
- Move the gauge and FC-20 grip to the same level.
- Use the FC-20 (or FC-40) to grip the unaffixed tape end
- Loosen the string bolt
- Make sure there is no slack, then adjust the string length to move the slide bearing table and make a 90° angle
- Re-tighten the string bolt
- Press ZERO on DPS gauge, then start the peel test.
|  |
S-1 Hook Connection - Cut the tape sample to size and affix it to the peel table, leaving one end of the tape unaffixed for gripping purposes.
- Use FC-20 (or FC-40) to grip the end of the tape and hold it perpendicular while moving the gauge and hook to the same level.
- Hook the S-1 attachment hooks together.
- Loosen the string bolt.
- Make sure there is no slack between the hooks, then adjust the string length to move the slide bearing table and make a 90° angle.
- Re-tighten the string bolt.
- Press ZERO on DPS gauge, then start the peel test.
| |
