Product Description

Imada P90-200N 90° Peel Table

It keeps peel angle at 90 degree

The Imada P90-200N 90° Peel Table is ideal for 90 degree peel test or adhesion test of glue, sticker, tape and so on. Available in capacity up to 200N (440lbf, 20kgf).

line
Features
line

Ideal for adhesion test of tape, stickers, and so on
It keeps peel angle at 90 degree.

line

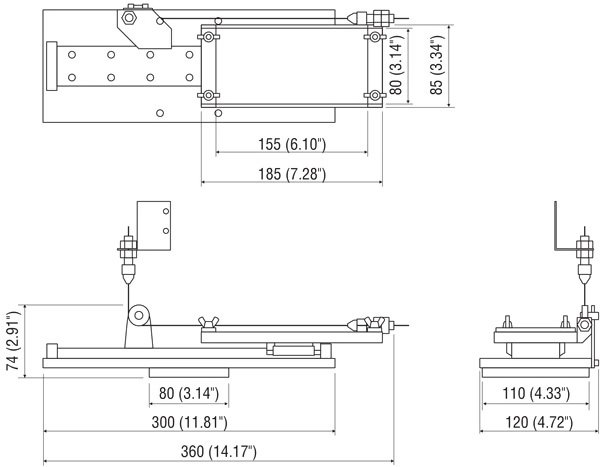

Dimensions
line

dimensions

line
Specifications
line

Allowable length of samples	Max. 155mm
Allowable width of samples	Max. 80mm
Allowable load	Up to 200N (440 lbf, 20 kgf)
Weight	Approx.3kg
Compatible Test Stands	MX-500N, MX2-500N, MX-1000N, MX2-1000N

*An attachment to grip sample is sold separately.
*Please contact us if you would like to mount it on other test stands.
