    Product Description
    Imada PGC-0510 Pincer Wedge Grip
    Capacity 110 lbs (500 N, 50 kgf)

    Easy to grip samples like as usability of clothes pins. the Imada PGC-0510 Pincer Wedge Grip is available in capacity up to 500N (110 lbf, 50 kgf).

    line
    Features
    line

    • Easy to grip samples like as usability of cloth pins
    • Easy set up (Just hang it on the hook)
    • The more it is pulled, the more strongly it grips samples

    line

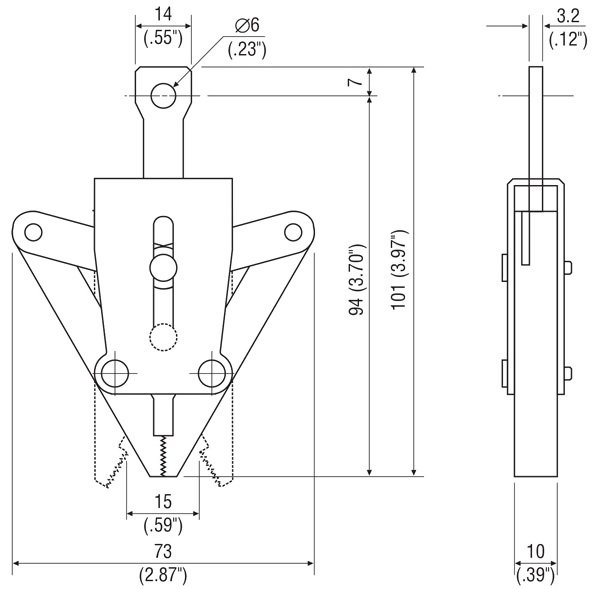

    Dimensions
    line

    dimensions

    line
    Specifications
    line

    Capacity 500N (110 lbf, 50 kgf)
    Through Hole ⌀6
    Opening Width Max. 15 mm
    Weight Approx. 110g


    line

    line
