Prevent Grip Rotation

---

Quick grip installation and removal

---

Mount to common load cells, test frames, and force gauges

---

Individual adapters and kits available

---

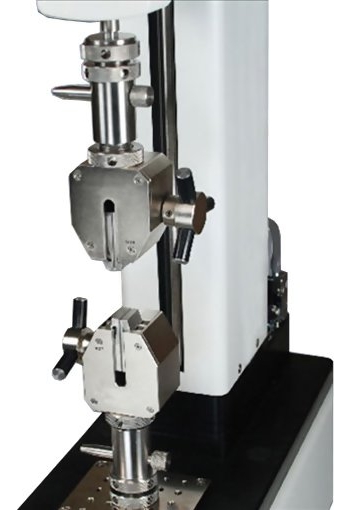

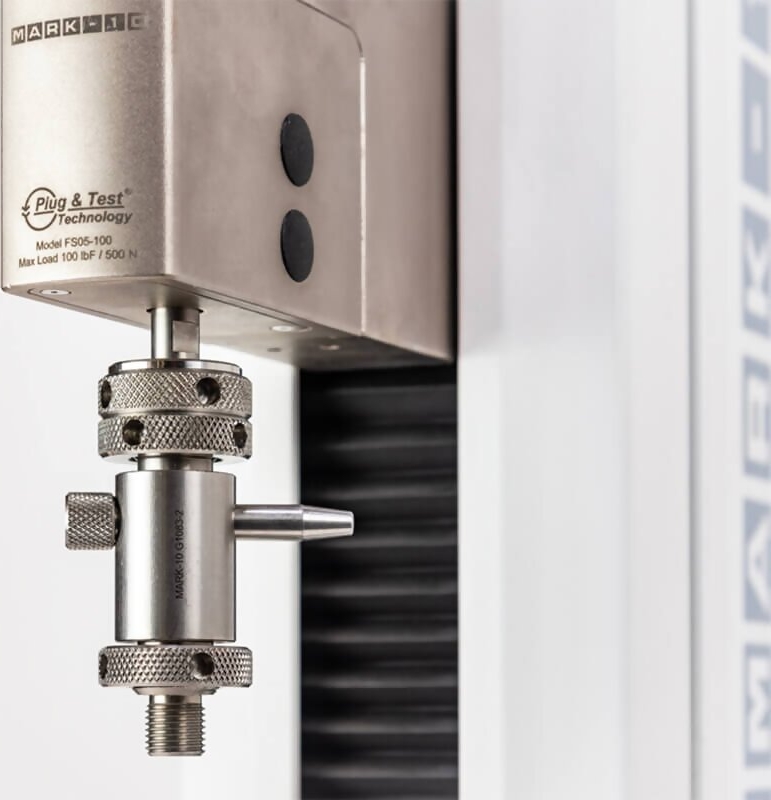

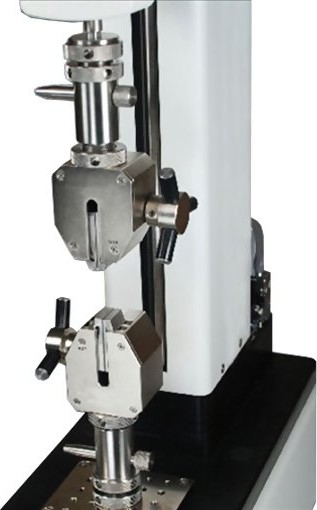

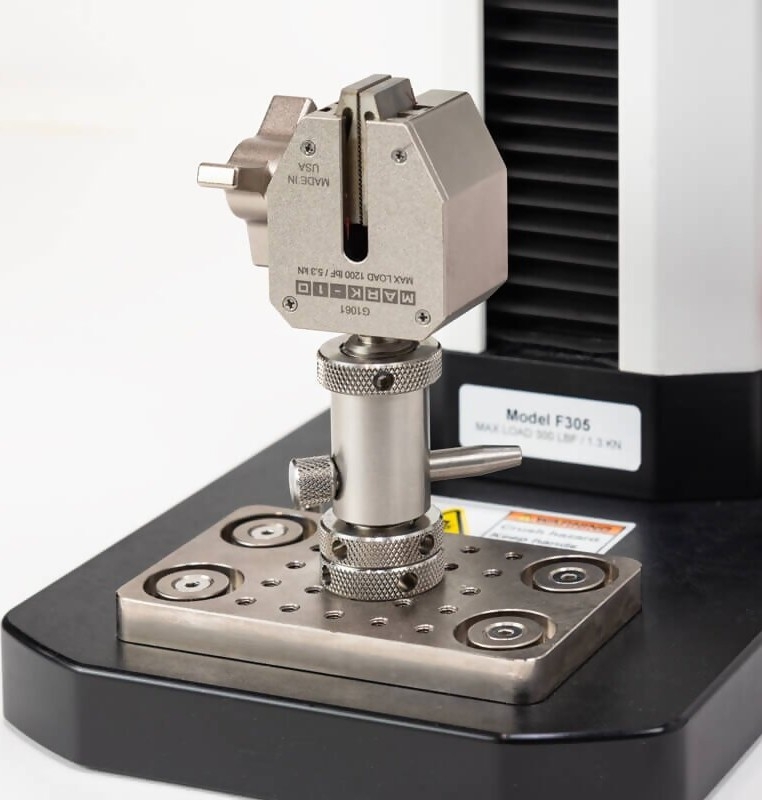

These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames. They prevent grip rotation and allow for quick removal and installation.

Several thread sizes and variations are available to suit most common test frames, load cells, grips, and force gauges. Eye ends and adapters are available individually or in kits

Load Cell / Test Frame Configuration	Model	Force Gauge Configuration	Description

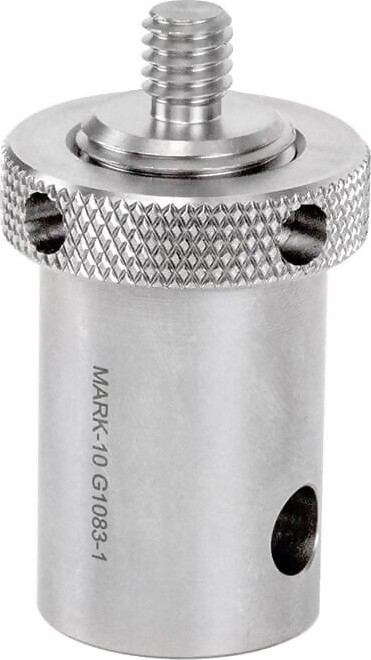

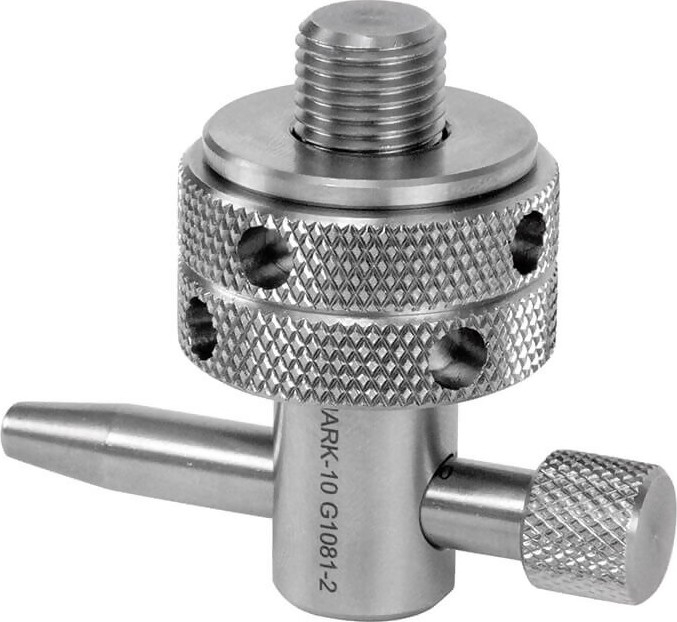

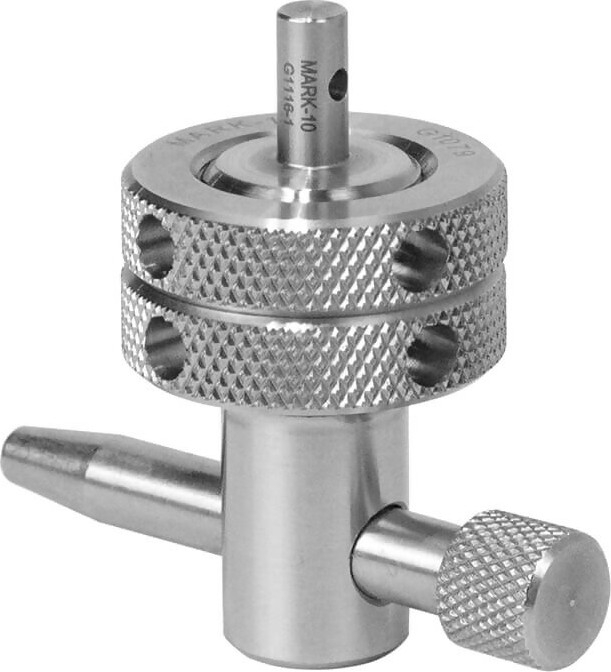

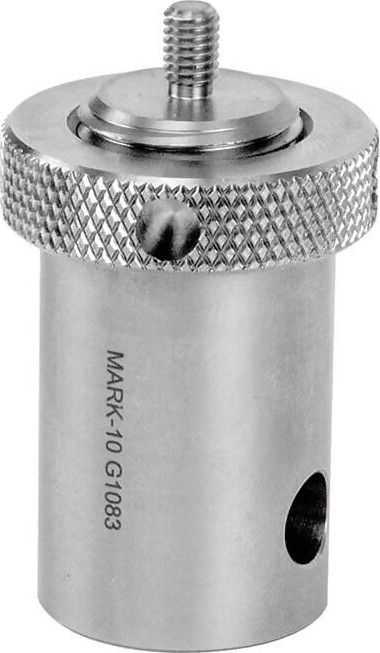

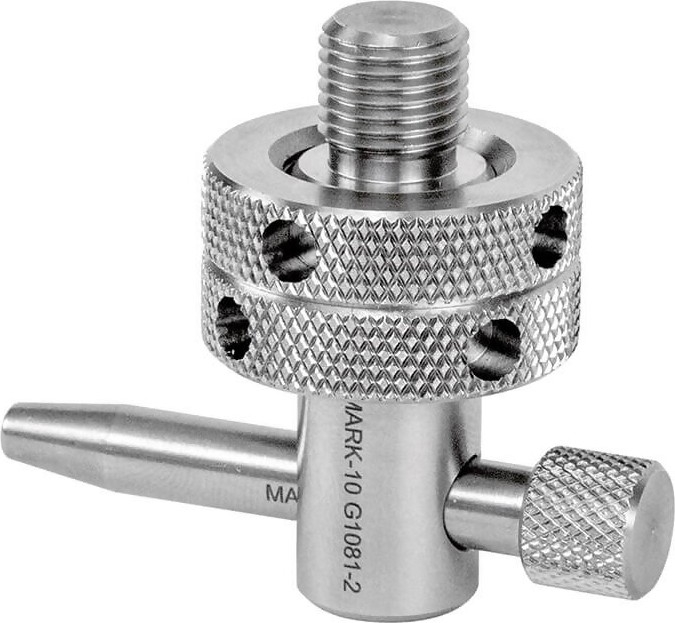

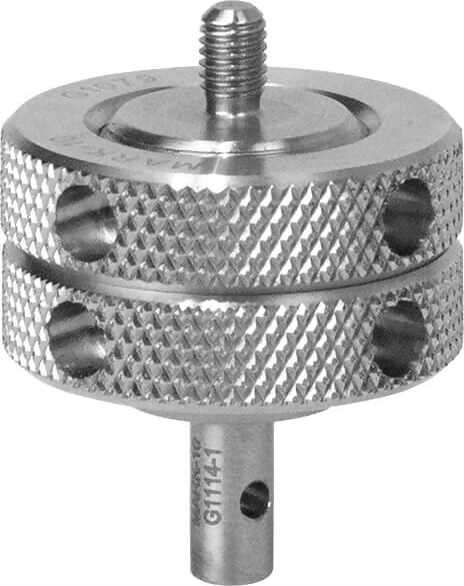

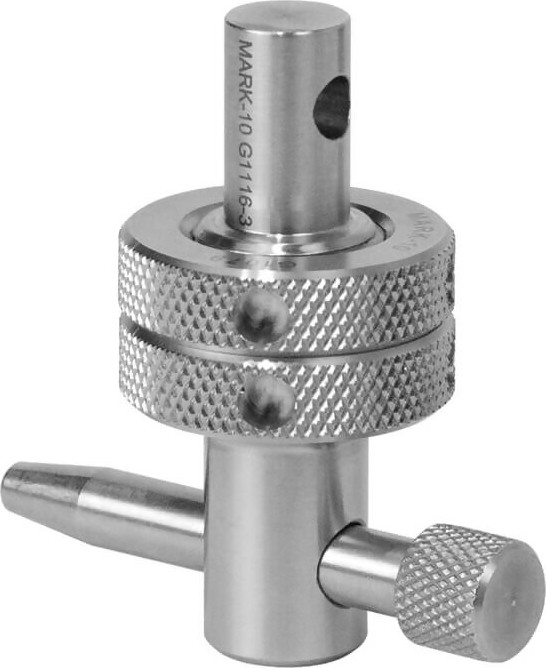

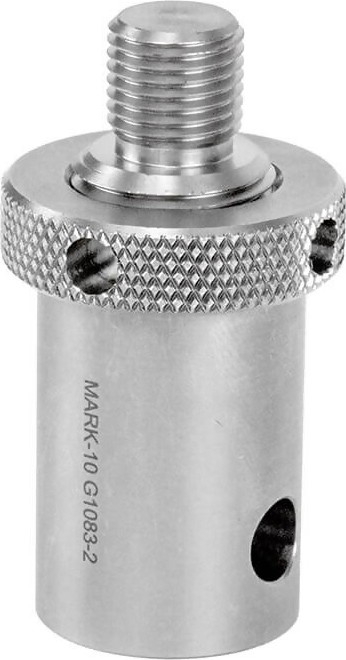

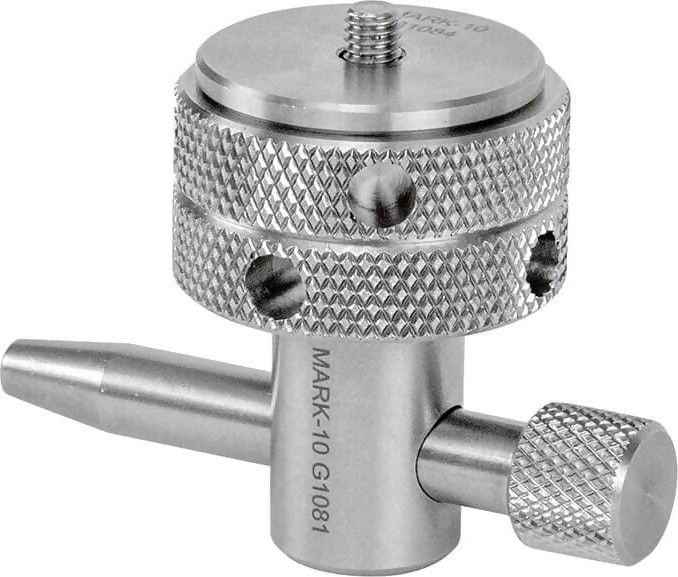

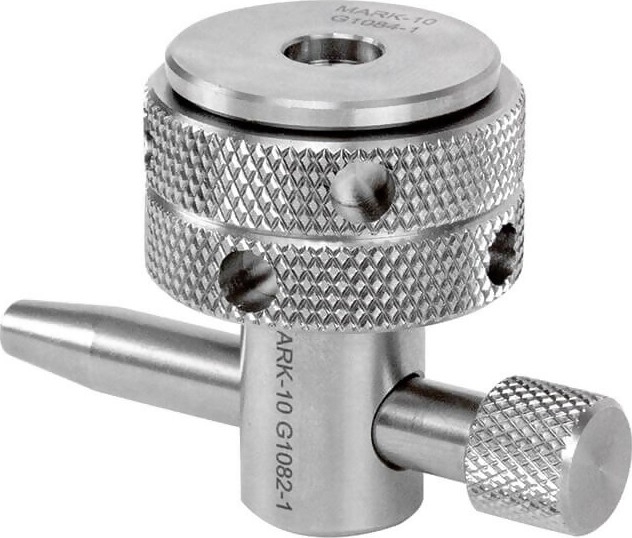

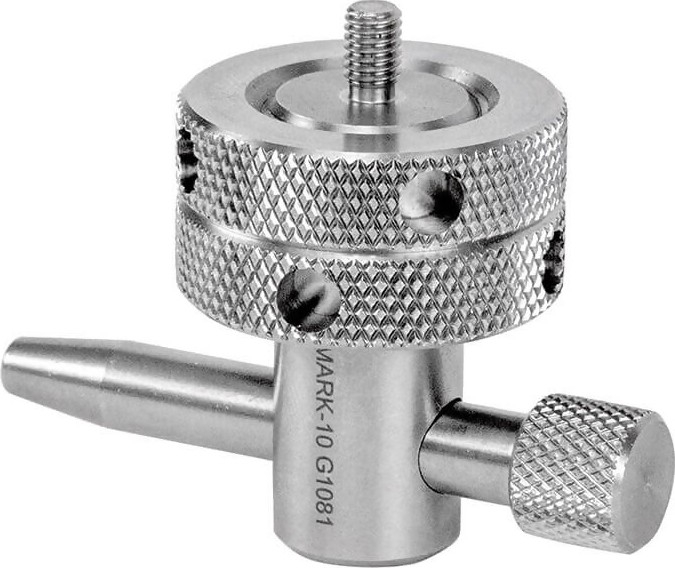

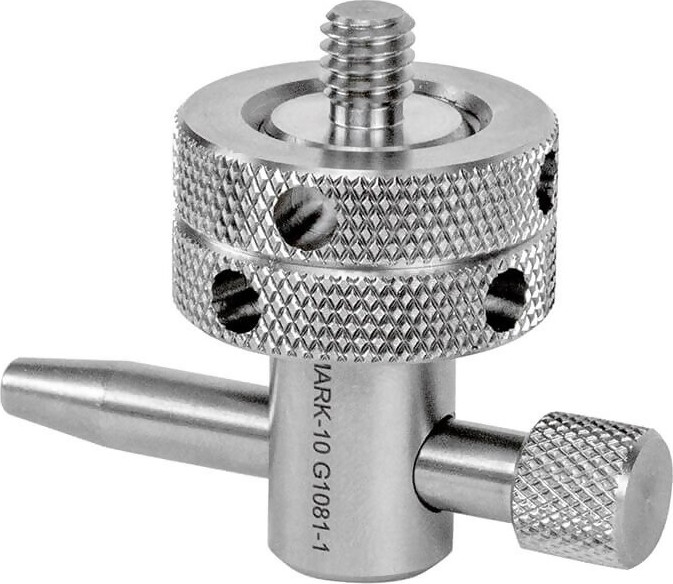

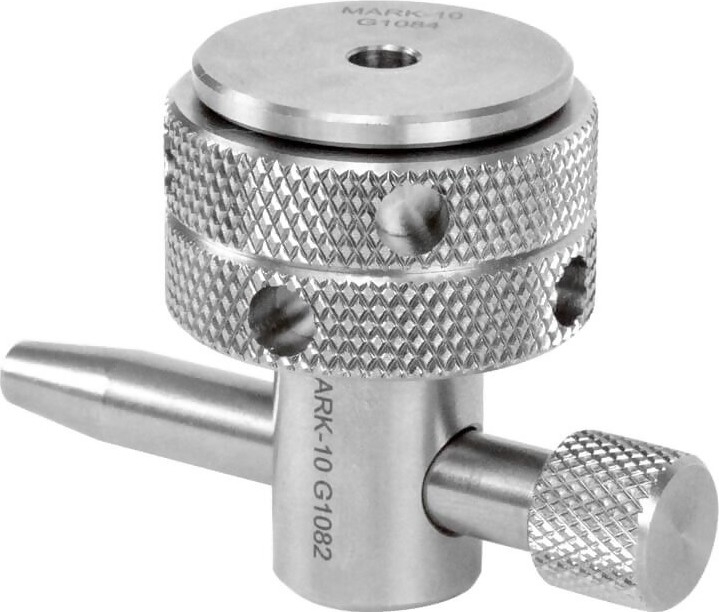

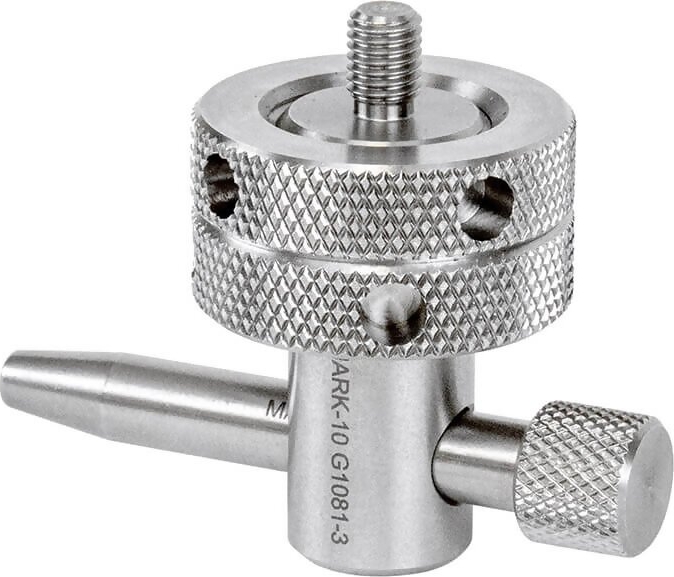

	G1079 G1081 G1081-1 G1018-2 G1080 G1083 G1083-1 G1083-2 G1084 G1084-1 G1082 G1082-1 G1088		Lock ring, 3/4-16 Eye end, #10-32M Eye end, 5/16-18M Eye end, 1/2-20M Anchor pin Eye end adapter, #10-32M Eye end adapter, 5/16-18M Eye end adapter, 1/2-20M Washer, #10-32 Washer, 5/16-18 Eye end, #10-32F Eye end, 5/16-18F Spanner wrench (not shown)

Downloads

Mark-10 Eye End Adapters - Data Sheet
