    Product Description

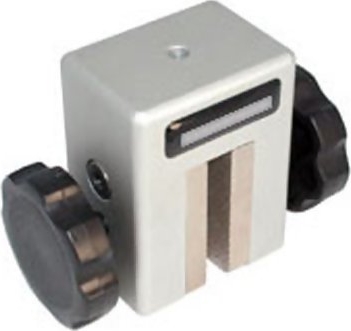

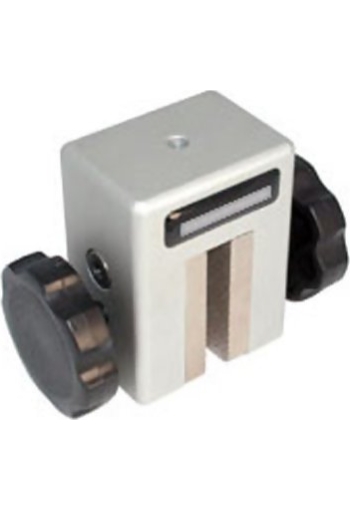

    Mark-10 G1013 Parallel Jaw Grip
    General tensile testing
    200 lb capacity

    The Mark-10 G1013 Parallel Jaw Grip is ideal for general pull testing applications. Manually tightened serrated jaws may be individually adjusted for samples up to 0.25" thick. Use this grip with a MG force gauge and test stand to create a complete testing system.


    line
    Specifications
    line

    Capacity 200 lb
    Sample size 0.25
    Thread #10-32 UNF
    Dimensions 1.25"L x 1.75"W x 2.25"H
    Weight 0.65 lb


    line

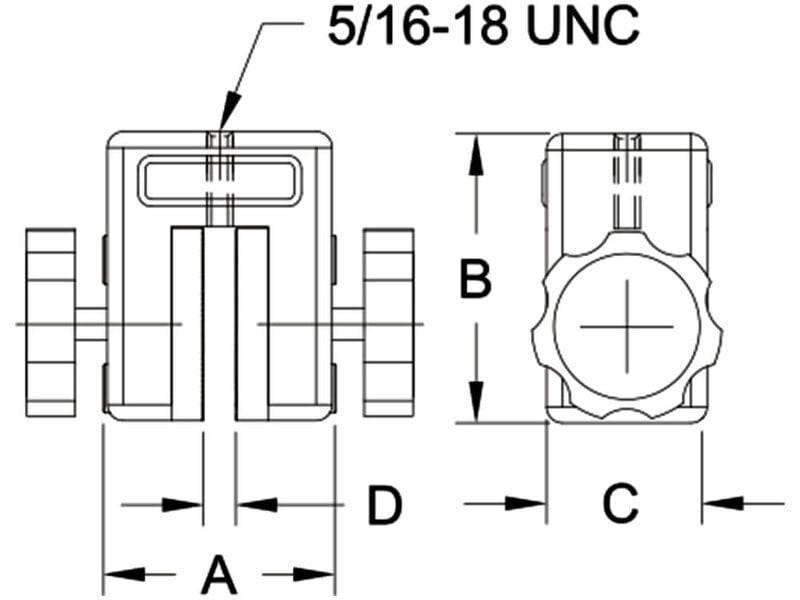

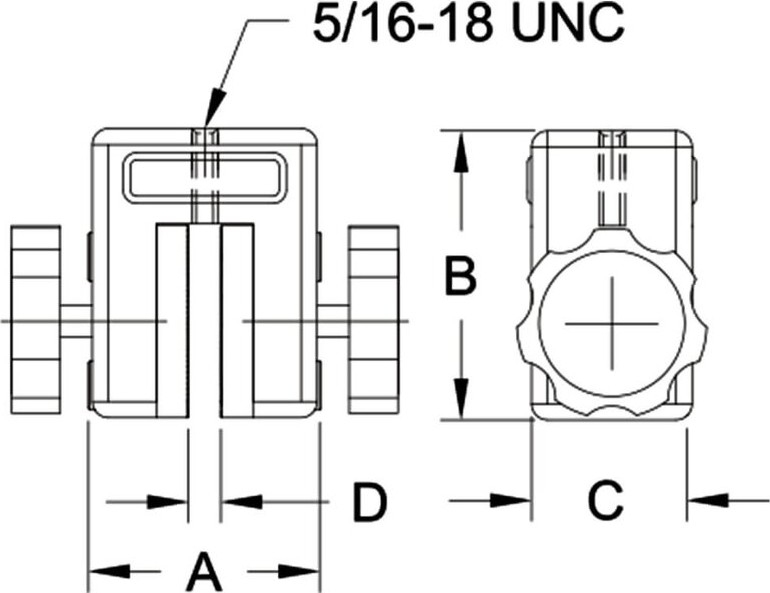

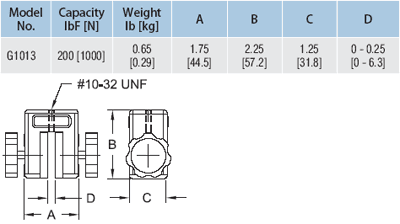

    Dimensions
    line
