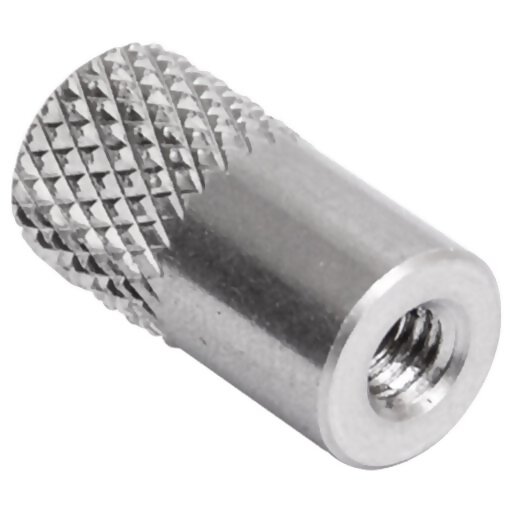

Mark-10 G1039 Coupler #10-32F to #10-32F, 200 lbf / 1000 N Capacity

See More Force Gauge Attachments

Mark-10 G1039 Coupler #10-32F to #10-32F, 200 lbf / 1000 N Capacity

See More Force Gauge Attachments
Price:
$15.00
  • Hassle Free 30-Day Returns
  • Availability: In Stock Usually ships within 1-2 business days
  • FREE - Standard Ground 3-5 Business Days on Orders Over $150 View Faster Delivery Options
warrenty

Product Description

Mark-10 Thread Adapters for Digital Force Gauges

Connect force gauges and attachments with different Mark-10 thread adapter sizes. For use between force gauges, test stands, grips, and attachments. Use them with a force gauge and a test stand to create a complete testing system

Model Capacity lbF [N] Length in [mm] Thread A
G1051 100 [500] 0.55 [14.0] #4-40M
G1050 100 [500] 0.75 [19.1] #10-32F
G1039 200 [1,000] 0.75 [19.1] #10-32F
G1030 200 [1,000] 0.50[12.7] #10-32F
G1067 200 [1,000] 0.75 [19.1] #10-32F
G1048 200 [1,000] 0.75 [19.1] #10-32F
G1057 200 [1,000] 0.75 [19.1] #10-32F
G1054 200 [1,000] 0.75 [19.1] #10-32F
G1060 200 [1,000] 0.75 [19.1] #10-32M
G1063 200 [1,000] 1.30 [33.0] #10-32M
G1047 200 [1,000] 0.75 [19.1] #10-32M
G1069 500 [2,500] 1.25 [31.8] 5/16-18F
G1037 500 [2,500] 1.00 [25.4] 5/16-18F
G1059 500 [2,500] 1.13 [28.7] 5/16-18F
G1066 500 [2,500] 0.75 [19.1] 5/16-18F
G1049 500 [2,500] 1.25 [31.8] 5/16-18F
G1040 500 [2,500] 0.92 [23.4] 5/16-18M
G1091 1,000 [5,000] 1.30 [33.0] 1/2-20F
G1041 500 [2,500] 1.06 [26.9] 1/2-20M
G1044* Adapter plate, 1/2-20F*
AC1082 100 [500] 0.75 [19.1] #10-32M
AC1082-1 500 [2,500] 1.00 [25.4] 5/16-18M
AC1082-2 2,000 [9,000] 1.50 [38.1] 1/2-20M

line

Model Capacity lbF [N] Length in [mm] Thread B
G1051 100 [500] 0.55 [14.0] #10-32M
G1050 100 [500] 0.75 [19.1] #4-40M
G1039 200 [1,000] 0.75 [19.1] #10-32F
G1030 200 [1,000] 0.50[12.7] 5/16-18M
G1067 200 [1,000] 0.75 [19.1] 1/2-20M
G1048 200 [1,000] 0.75 [19.1] M4M
G1057 200 [1,000] 0.75 [19.1] M6F
G1054 200 [1,000] 0.75 [19.1] M6M
G1060 200 [1,000] 0.75 [19.1] #10-32M
G1063 200 [1,000] 1.30 [33.0] 5/16-18F
G1047 200 [1,000] 0.75 [19.1] M4F
G1069 500 [2,500] 1.25 [31.8] 1/4-28M
G1037 500 [2,500] 1.00 [25.4] 5/16-18F
G1059 500 [2,500] 1.13 [28.7] 1/2-20F
G1066 500 [2,500] 0.75 [19.1] 1/2-20M
G1049 500 [2,500] 1.25 [31.8] M6M
G1040 500 [2,500] 0.92 [23.4] 5/16-18M
G1091 1,000 [5,000] 1.30 [33.0] 1/2-20F
G1041 500 [2,500] 1.06 [26.9] 5/16-18M
G1044* Adapter plate, 1/2-20F*
AC1082 100 [500] 0.75 [19.1] #10-32M
AC1082-1 500 [2,500] 1.00 [25.4] 5/16-18M
AC1082-2 2,000 [9,000] 1.50 [38.1] 1/2-20M

*Compatible with any Mark-10 test stand with a threaded hole matrix base plate, such as TSF, ESM303, etc.

line
Downloads
line

Mark-10 Thread Adapters for Digital Force Gauges - Data Sheet
