Mark-10 Thread Adapters for Digital Force Gauges
Connect force gauges and attachments with different Mark-10 thread adapter sizes. For use between force gauges, test stands, grips, and attachments. Use them with a force gauge and a test stand to create a complete testing system
| Model | Capacity lbF [N] | Length in [mm] | Thread A |
| G1051 | 100 [500] | 0.55 [14.0] | #4-40M |
| G1050 | 100 [500] | 0.75 [19.1] | #10-32F |
| G1039 | 200 [1,000] | 0.75 [19.1] | #10-32F |
| G1030 | 200 [1,000] | 0.50[12.7] | #10-32F |
| G1067 | 200 [1,000] | 0.75 [19.1] | #10-32F |
| G1048 | 200 [1,000] | 0.75 [19.1] | #10-32F |
| G1057 | 200 [1,000] | 0.75 [19.1] | #10-32F |
| G1054 | 200 [1,000] | 0.75 [19.1] | #10-32F |
| G1060 | 200 [1,000] | 0.75 [19.1] | #10-32M |
| G1063 | 200 [1,000] | 1.30 [33.0] | #10-32M |
| G1047 | 200 [1,000] | 0.75 [19.1] | #10-32M |
| G1069 | 500 [2,500] | 1.25 [31.8] | 5/16-18F |
| G1037 | 500 [2,500] | 1.00 [25.4] | 5/16-18F |
| G1059 | 500 [2,500] | 1.13 [28.7] | 5/16-18F |
| G1066 | 500 [2,500] | 0.75 [19.1] | 5/16-18F |
| G1049 | 500 [2,500] | 1.25 [31.8] | 5/16-18F |
| G1040 | 500 [2,500] | 0.92 [23.4] | 5/16-18M |
| G1091 | 1,000 [5,000] | 1.30 [33.0] | 1/2-20F |

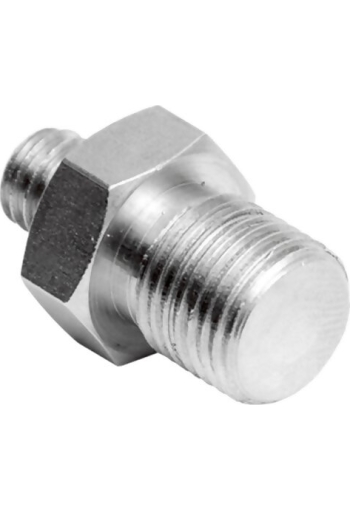

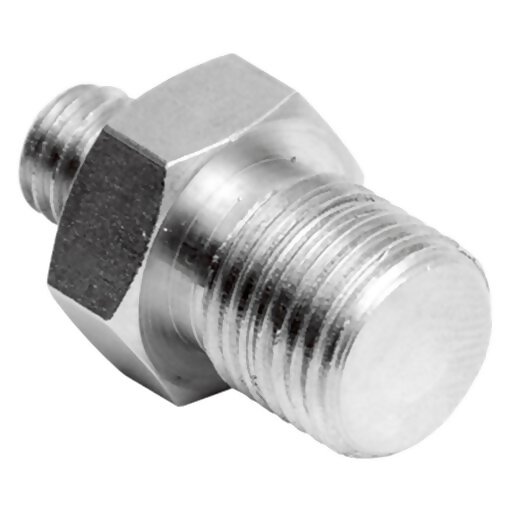

| G1041 | 500 [2,500] | 1.06 [26.9] | 1/2-20M |
| G1044* | Adapter plate, 1/2-20F* |
| AC1082 | 100 [500] | 0.75 [19.1] | #10-32M |
| AC1082-1 | 500 [2,500] | 1.00 [25.4] | 5/16-18M |
| AC1082-2 | 2,000 [9,000] | 1.50 [38.1] | 1/2-20M |
| Model | Capacity lbF [N] | Length in [mm] | Thread B |
| G1051 | 100 [500] | 0.55 [14.0] | #10-32M |
| G1050 | 100 [500] | 0.75 [19.1] | #4-40M |
| G1039 | 200 [1,000] | 0.75 [19.1] | #10-32F |
| G1030 | 200 [1,000] | 0.50[12.7] | 5/16-18M |
| G1067 | 200 [1,000] | 0.75 [19.1] | 1/2-20M |
| G1048 | 200 [1,000] | 0.75 [19.1] | M4M |
| G1057 | 200 [1,000] | 0.75 [19.1] | M6F |
| G1054 | 200 [1,000] | 0.75 [19.1] | M6M |
| G1060 | 200 [1,000] | 0.75 [19.1] | #10-32M |
| G1063 | 200 [1,000] | 1.30 [33.0] | 5/16-18F |
| G1047 | 200 [1,000] | 0.75 [19.1] | M4F |
| G1069 | 500 [2,500] | 1.25 [31.8] | 1/4-28M |
| G1037 | 500 [2,500] | 1.00 [25.4] | 5/16-18F |
| G1059 | 500 [2,500] | 1.13 [28.7] | 1/2-20F |
| G1066 | 500 [2,500] | 0.75 [19.1] | 1/2-20M |
| G1049 | 500 [2,500] | 1.25 [31.8] | M6M |
| G1040 | 500 [2,500] | 0.92 [23.4] | 5/16-18M |
| G1091 | 1,000 [5,000] | 1.30 [33.0] | 1/2-20F |
| G1041 | 500 [2,500] | 1.06 [26.9] | 5/16-18M |
| G1044* | Adapter plate, 1/2-20F* |
| AC1082 | 100 [500] | 0.75 [19.1] | #10-32M |
| AC1082-1 | 500 [2,500] | 1.00 [25.4] | 5/16-18M |
| AC1082-2 | 2,000 [9,000] | 1.50 [38.1] | 1/2-20M |
*Compatible with any Mark-10 test stand with a threaded hole matrix base plate, such as TSF, ESM303, etc.
