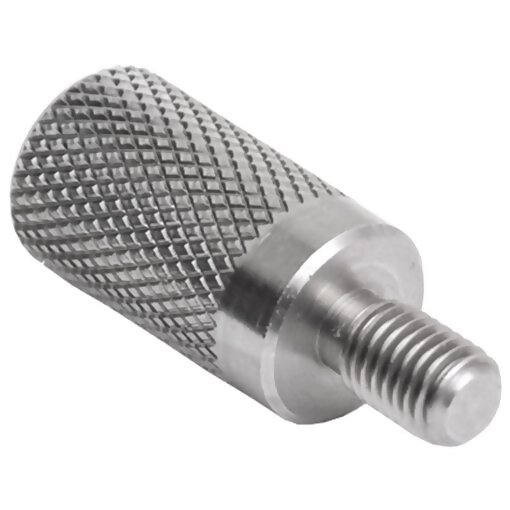

Mark-10 G1069 Thread Adapter 5/16-18F to 1/4-28M, 500 lbf / 2500 N Capacity

See More Force Gauge Attachments

Mark-10 G1069 Thread Adapter 5/16-18F to 1/4-28M, 500 lbf / 2500 N Capacity

See More Force Gauge Attachments
Price:
$20.00
    warrenty

    Product Description

    Mark-10 Thread Adapters for Digital Force Gauges

    Connect force gauges and attachments with different Mark-10 thread adapter sizes. For use between force gauges, test stands, grips, and attachments. Use them with a force gauge and a test stand to create a complete testing system

    Model Capacity lbF [N] Length in [mm] Thread A
    G1051 100 [500] 0.55 [14.0] #4-40M
    G1050 100 [500] 0.75 [19.1] #10-32F
    G1039 200 [1,000] 0.75 [19.1] #10-32F
    G1030 200 [1,000] 0.50[12.7] #10-32F
    G1067 200 [1,000] 0.75 [19.1] #10-32F
    G1048 200 [1,000] 0.75 [19.1] #10-32F
    G1057 200 [1,000] 0.75 [19.1] #10-32F
    G1054 200 [1,000] 0.75 [19.1] #10-32F
    G1060 200 [1,000] 0.75 [19.1] #10-32M
    G1063 200 [1,000] 1.30 [33.0] #10-32M
    G1047 200 [1,000] 0.75 [19.1] #10-32M
    G1069 500 [2,500] 1.25 [31.8] 5/16-18F
    G1037 500 [2,500] 1.00 [25.4] 5/16-18F
    G1059 500 [2,500] 1.13 [28.7] 5/16-18F
    G1066 500 [2,500] 0.75 [19.1] 5/16-18F
    G1049 500 [2,500] 1.25 [31.8] 5/16-18F
    G1040 500 [2,500] 0.92 [23.4] 5/16-18M
    G1091 1,000 [5,000] 1.30 [33.0] 1/2-20F
    G1041 500 [2,500] 1.06 [26.9] 1/2-20M
    G1044* Adapter plate, 1/2-20F*
    AC1082 100 [500] 0.75 [19.1] #10-32M
    AC1082-1 500 [2,500] 1.00 [25.4] 5/16-18M
    AC1082-2 2,000 [9,000] 1.50 [38.1] 1/2-20M

    line

    Model Capacity lbF [N] Length in [mm] Thread B
    G1051 100 [500] 0.55 [14.0] #10-32M
    G1050 100 [500] 0.75 [19.1] #4-40M
    G1039 200 [1,000] 0.75 [19.1] #10-32F
    G1030 200 [1,000] 0.50[12.7] 5/16-18M
    G1067 200 [1,000] 0.75 [19.1] 1/2-20M
    G1048 200 [1,000] 0.75 [19.1] M4M
    G1057 200 [1,000] 0.75 [19.1] M6F
    G1054 200 [1,000] 0.75 [19.1] M6M
    G1060 200 [1,000] 0.75 [19.1] #10-32M
    G1063 200 [1,000] 1.30 [33.0] 5/16-18F
    G1047 200 [1,000] 0.75 [19.1] M4F
    G1069 500 [2,500] 1.25 [31.8] 1/4-28M
    G1037 500 [2,500] 1.00 [25.4] 5/16-18F
    G1059 500 [2,500] 1.13 [28.7] 1/2-20F
    G1066 500 [2,500] 0.75 [19.1] 1/2-20M
    G1049 500 [2,500] 1.25 [31.8] M6M
    G1040 500 [2,500] 0.92 [23.4] 5/16-18M
    G1091 1,000 [5,000] 1.30 [33.0] 1/2-20F
    G1041 500 [2,500] 1.06 [26.9] 5/16-18M
    G1044* Adapter plate, 1/2-20F*
    AC1082 100 [500] 0.75 [19.1] #10-32M
    AC1082-1 500 [2,500] 1.00 [25.4] 5/16-18M
    AC1082-2 2,000 [9,000] 1.50 [38.1] 1/2-20M

    *Compatible with any Mark-10 test stand with a threaded hole matrix base plate, such as TSF, ESM303, etc.

    line
    Downloads
    line

    Mark-10 Thread Adapters for Digital Force Gauges - Data Sheet
