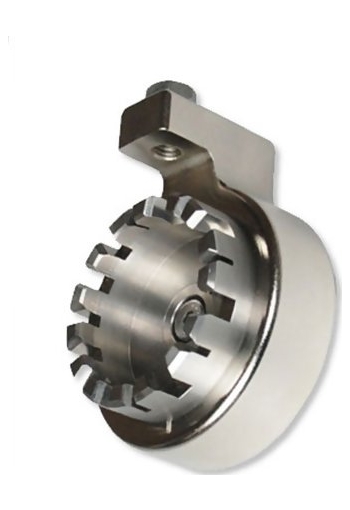

Mark-10 Wire Terminal Grip
200 lb capacity
The Mark-10 G1076 Wire Terminal Grip is designed for securing wire terminals, cables, connectors, and other samples for pull testing. Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.25 in. (6.3 mm). Simply rotate the turret wheel to the desired size. Integrated magnets hold the wheel in place to help prevent accidental rotation to a different sized groove.

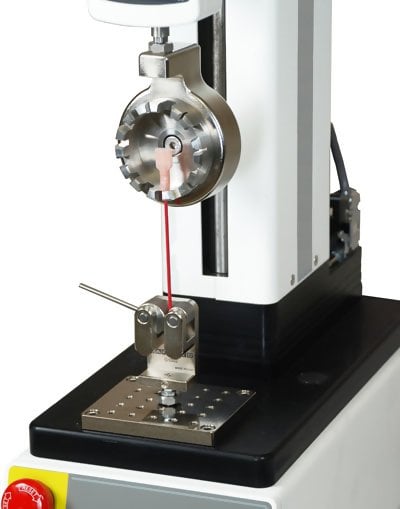

| Use this grip with the G1002 dual roller grip, and choice of test stands and force gauges to create a complete terminal and crimp testing system. |  |
Features
- Wire diameter range: 0 - 0.25 in (6.3 mm)
- Capacity: 200 lbF (1000 N)
- Weight: 1.0 lb (0.45 kg)
- Includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts.

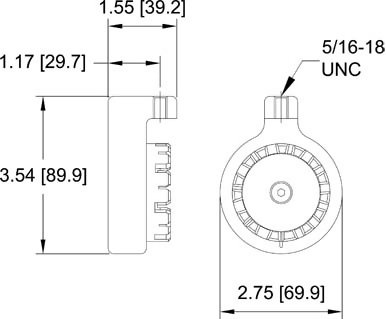

Dimensions
