Mark-10 High Capacity Compression Plates

---

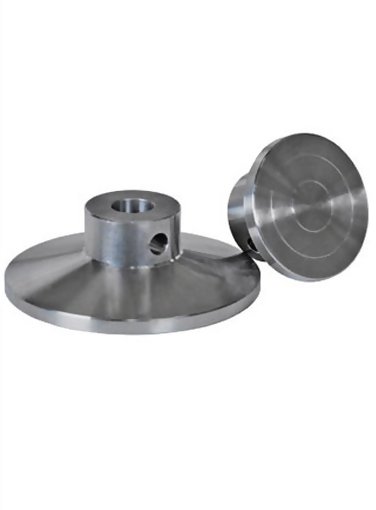

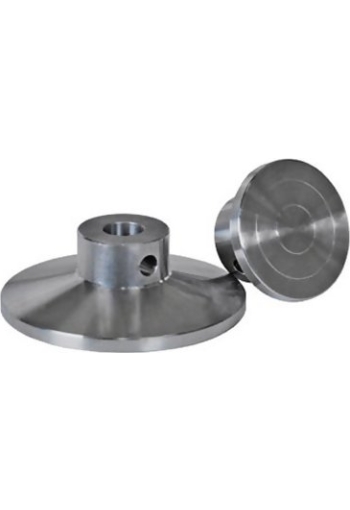

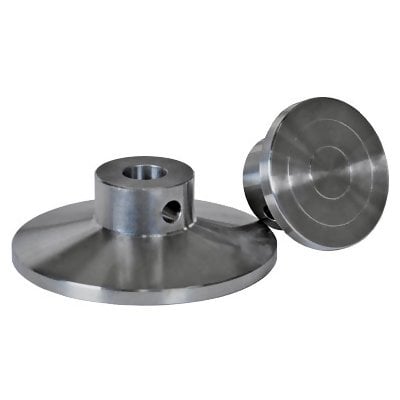

Compression plate, 3.78" dia.

---

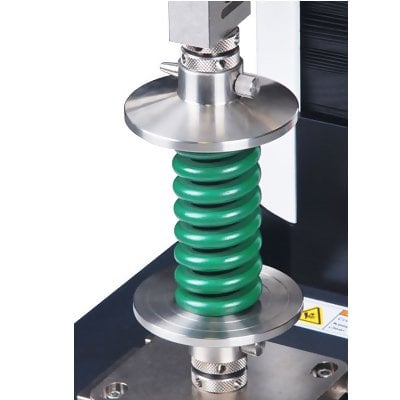

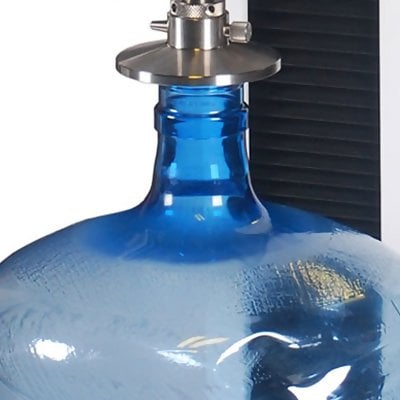

These Mark-10 G1087 Compression Plate are ideal for spring, top load, and other compression tests. The plates include an integrated eye end, and can attach to force gauges, load cells, and test stands.

Features

• Table surface material: 6061 T6 aluminum
• Sled material: 303 SS
• Maximum sled travel: 10.5 in (265 mm)
• Mounts directly to the ESM301 motorized test stand

Photo Gallery

Related Products

ESM301 Motorized Force Test Stand ESM303 NOW AVAILABLE Selectable speed units of measurement (in/min & mm/min) Stepper motor-driven, produces 0% speed variation load

ESM1500 High Capacity Motorized Test Stand Compatible with indicators and load cells, as well as force gauges

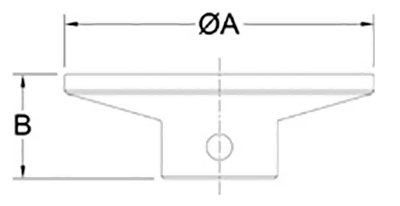

Dimensions
