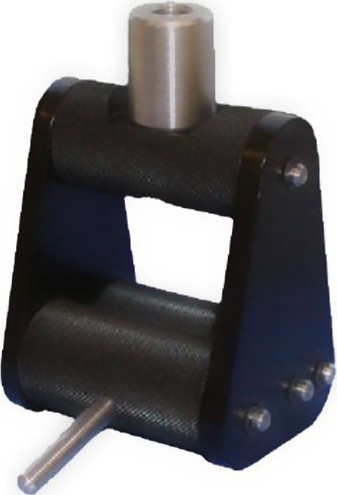

    GR-30 / GR-2000 Imada GR-30 / GR-2000 Cam Grip GR-30 / GR-2000
    LP-99 Imada LP-99 Lexan Safety Shield LP-99

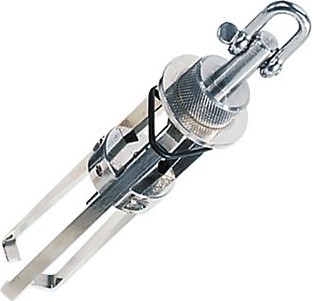

    BP-6 Imada BP-6 Button Puller BP-6
    WC-30 / WC-2000 Imada WC-30 / WC-2000 Wire Wrapping Grips WC-30 / WC-2000
    GC-1100 Imada GC Heavy-duty Flat Chuck GC-1100
    DF-60 Imada DF-60 Hook for Corrugated Cardboard Seal Strength DF-60
    PG-2 / PG-4 Imada PG-2 / PG-4 Penetrating Pin PG-2 / PG-4

    Product Description

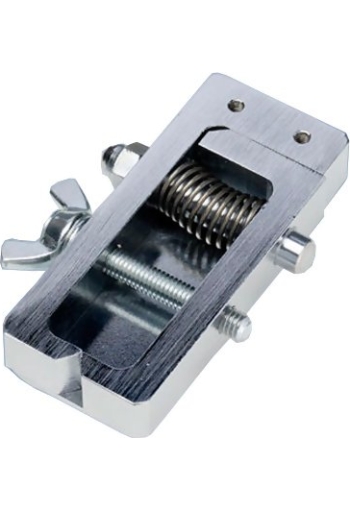

    Imada CH-500N Wire Terminal Grip
    Capacity 110 lbs (500 N, 50 kgf)

    The Imada CH-500N Wire Terminal Grip is ideal for the tensile strength test of crimped terminal. Just hang your sample to set up. Available in capacity up to 500N (110 lbf, 50kgf).

    line
    Features
    line

    • Ideal for crimp pull test.
    • Able to grip from 6 to 12 mm inner diameter of wire crimped terminal.

    line

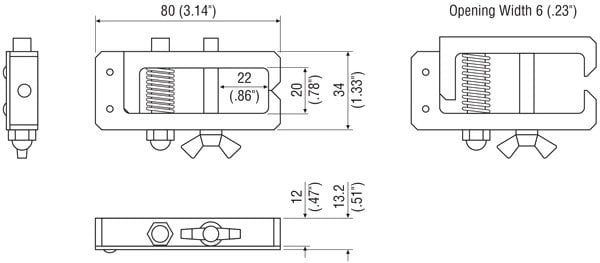

    Dimensions
    line

    dimensions

    line
    Specifications
    line

    Capacity 500N (110 lbf, 50kgf)
    Opening Width Max. 6mm
    Weight Approx. 210g
