Mark-10 G1098 ASTM D6195 Loop Tack Fixture

See More Force Gauge Attachments (Mark10)

Mark-10 G1098 ASTM D6195 Loop Tack Fixture

See More Force Gauge Attachments (Mark10)
Price:
$980.00
    warrenty

    Product Description

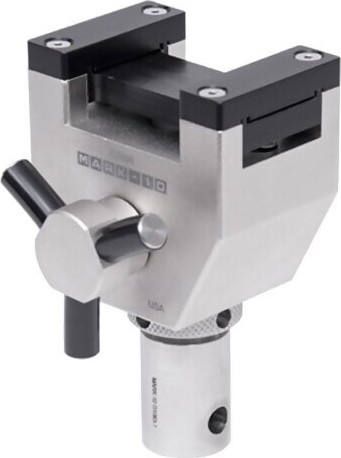

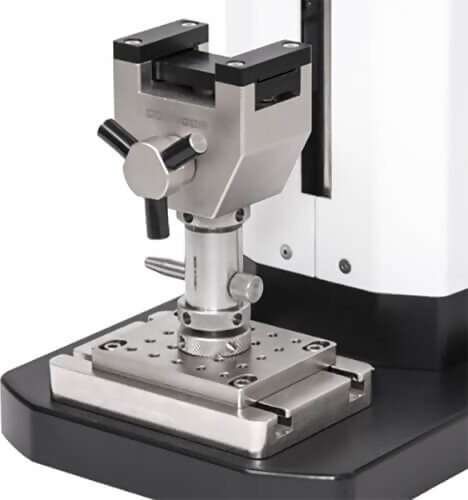

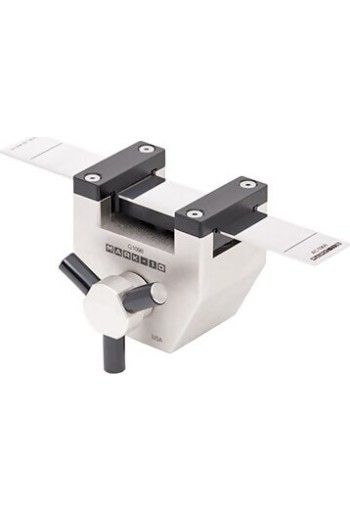

    ASTM D6195 Loop Tack Fixture
    Quick-change mechanism for test strips
    Designed for loop tack force testing

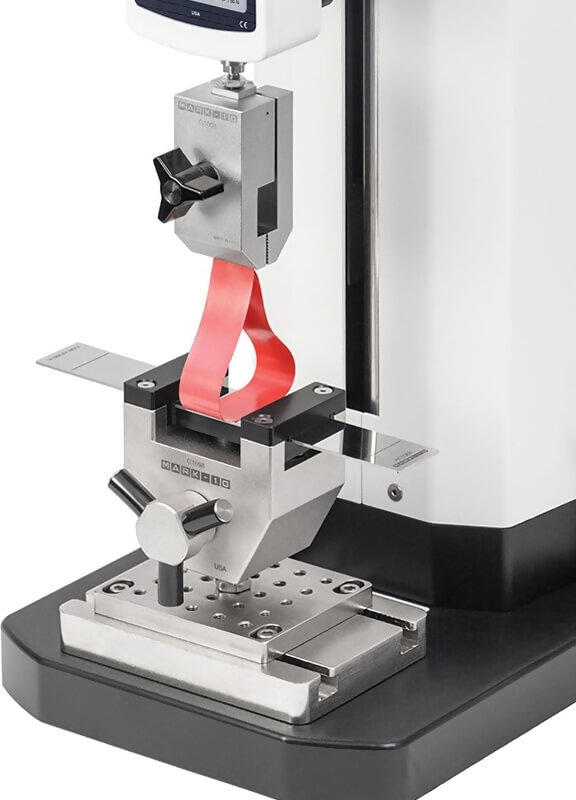

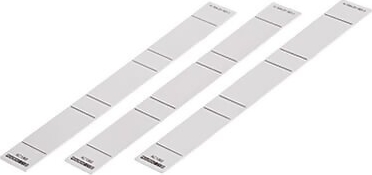

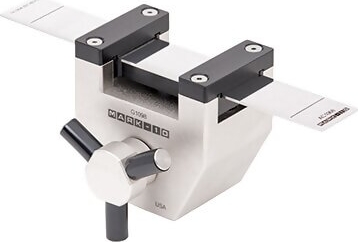

    The Mark-10 G1098 ASTM D6195 Loop Tack Fixture is designed for tack force testing of pressure-sensitive adhesives, in conformance with ASTM D6195 and related standards. A looped sample is loaded onto the test strip, and the closed end of the loop is secured by an upper grip (not included - suggested model: G1008). The test strip may be indexed in three positions, allowing for three tests to be performed between cleaning cycles. The strip is secured and released by a lever-operated clamp. An additional set of three test strips is available.


    line
    Features
    line

    • Designed for loop tack force testing
    • Quick-change mechanism for test strips
    • Conforms to ASTM D6195


    line

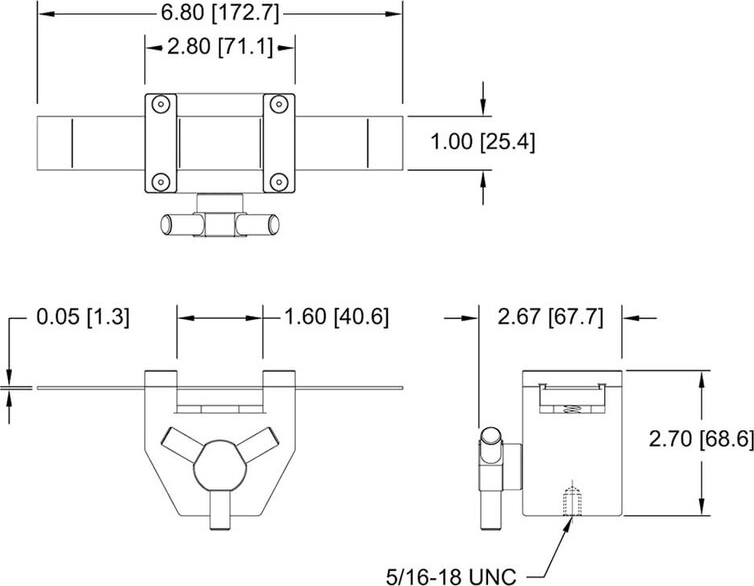

    Specifications
    line

    Capacity100 lbs / 500 N
    Weight1.10 lbs / 0.5 N
    Test strip materialT304 SS, per ASTM A666
    Standard Accessories1 Test strip and 5/16-18 M/M stud with jam nuts


    lineRelated Productsline

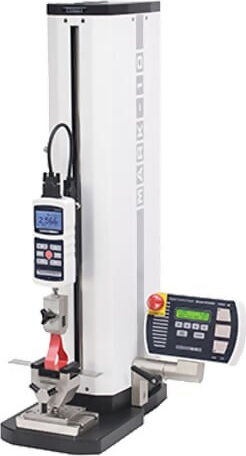

    Mark-10 ESM303 High Performance Motorized Test Stand

    • Distance Measurement, Break Detection, Load Holding and many other features

    line

    Mark-10 Eye End Adapters

    • Prevent Grip Rotation
    • Quick grip installation and removal
    • Mount to common load cells, test frames, and force gauges
    • Individual adapters and kits available

    line

    Mark-10 ES30 Hand Wheel Test Stand

    • 200lb Capacity
    • 13" Maximum Travel

    line

    Mark-10 Series 5 Advanced Digital Force Gauge

    • 7,000 Hz peak sampling rate
    • ±0.1% accuracy
    • 1,000 point data memory and statistics


    line
    Downloads
    line

    Mark-10 G1098 ASTM D6195 Loop Tack Fixture- Data Sheet
