Mark-10 G1111 Ribbon Wrap Grip for ASTM D6775 Compliance

See More Force Gauge Attachments (Mark10)

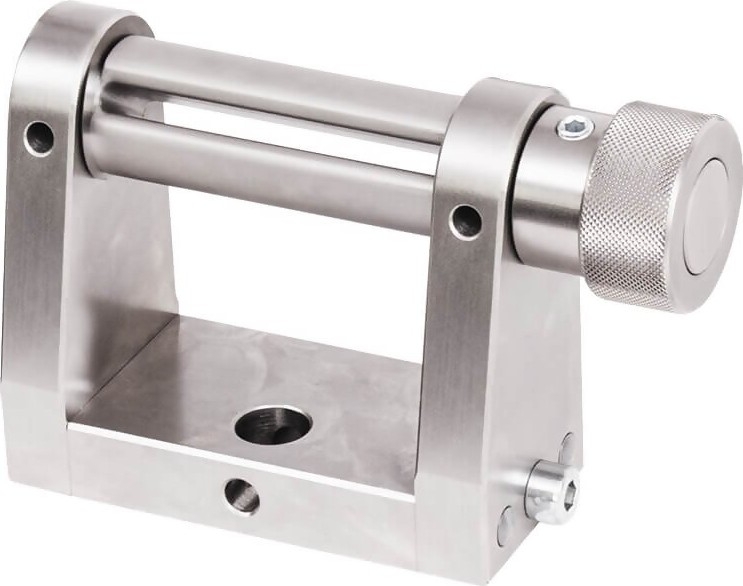

Mark-10 G1111 Ribbon Wrap Grip for ASTM D6775 Compliance

See More Force Gauge Attachments (Mark10)
Price:
$860.00
    warrenty

    Product Description
    Ribbon Wrap Grip for textile webbing, tape and braided materials
    For compliance to ASTM D6775 when tensile testing
    Capacity: 2000 lbs

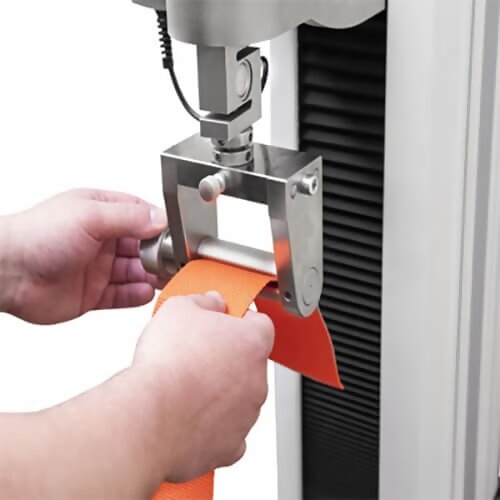

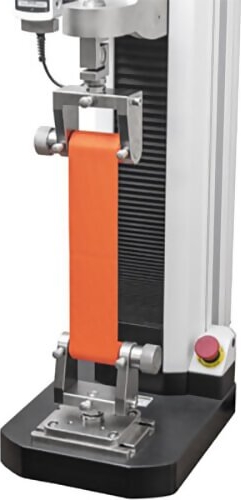

    The Mark-10 G1111 Ribbon Wrap Grip for ASTM D6775 Compliance is secures textile webbing, tape, and braided materials typically used in construction, shipping, and other industrial uses. The grip is ideal for conformance to ASTM D6775 and related standards, accommodating a wide range of sample widths and forces up to 2,000 lbF (10 kN).

    Includes integrated eye end mounting, and requires an eye end adapter to mount to Mark-10 force gauges or force sensors, and test stands.


    line
    Kit Contents
    line

    • Fixture assembly
    • Eye end anchor pin
    • 2 Anchor pin for sample drum


    line
    Features
    line

    • Secures webbing, tape, and braided materials for pull testing, as per ASTM D6775


    line
    Specifications
    line

    FunctionSecures webbing, tape, and braided materials for pull testing, as per ASTM D6775
    Capacity2,000 lbF [10 kN]
    Unit Weight5.2 lb [2.4 kg]


    lineRelated Productsline

    Mark-10 Eye End Adapters

    • Prevent Grip Rotation
    • Quick grip installation and removal

    line

    Mark-10 Series 4 Advanced Digital Force Gauge

    • 3,000 Hz peak sampling rate
    • ±0.2% accuracy

    line

    Mark-10 Series 5 Advanced Digital Force Gauge

    • 7,000 Hz peak sampling rate
    • ±0.1% accuracy


    line
    Downloads
    line

    Mark-10 G1111 Ribbon Wrap Grip for ASTM D6775 Compliance - Data Sheet
