Force Gauge Attachments (Shimpo)

Price: $95.00 - $125.00

---

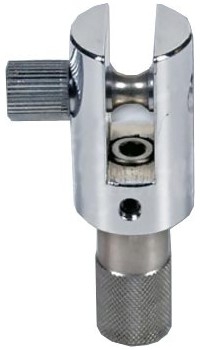

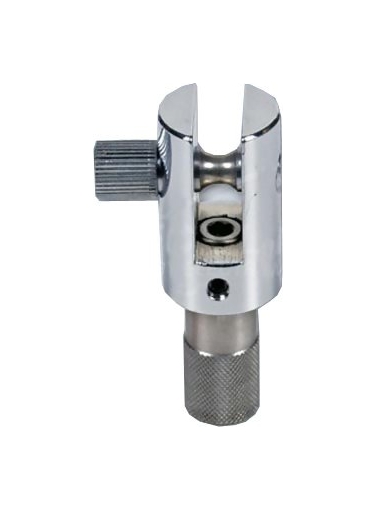

Shimpo FG-CLV Clevis Grip

---

Odd shaped parts, punched samples or tension springs are easily secured and tested. Concave shape to pins assures centering under load. Throat clearance with pin is .5" (12.7 mm) and can easily accept samples up to .375" (9.65 mm) wide.

---

Manufacturer: Shimpo

---

Warranty: One Year

---

Price: $70.00 - $135.00

---

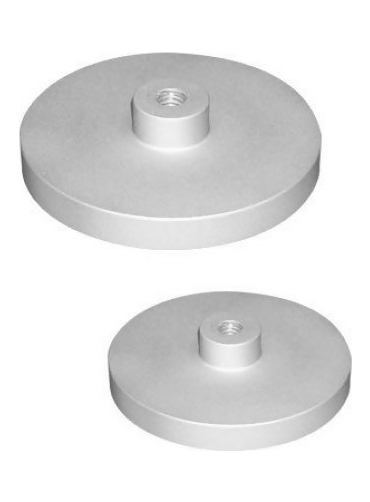

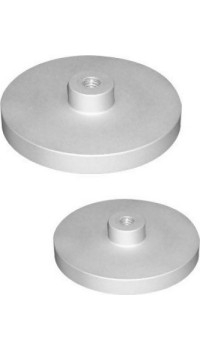

Shimpo FG-COMP Compression Plates

---

50 and 100MM steel compression plates for top load testing, large sample compression or crush testing, with polished finish. 50mm & 100mm plates available in M6 or M10 threading.

---

Manufacturer: Shimpo

---

Warranty: One Year

---

Price: $375.00

---

Eccentrically mounted, serrated roller grip allow for self tightening of specimens up to 3" (76.20 mm) wide and .25" (6.4 mm) thick.

---

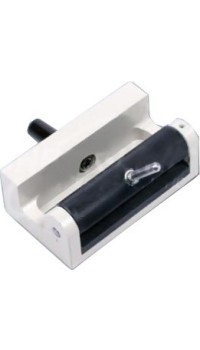

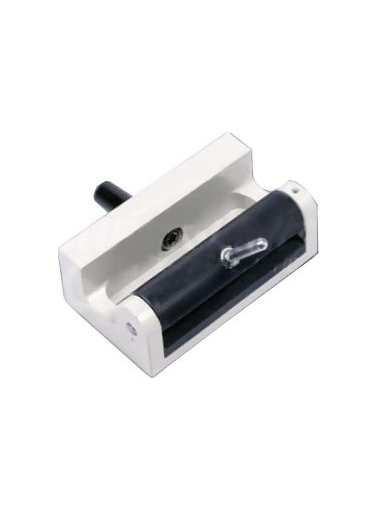

Shimpo FG-FAB Fabric Grip

---

Warranty: One Year

---

Price: $150.00

---

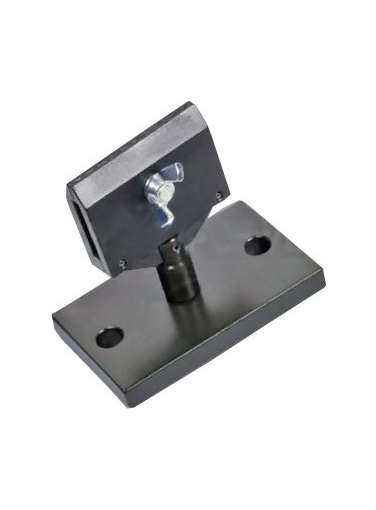

Shimpo FG-FLM Film Grip

---

These heavy-duty, spring-loaded grips have serrated jaws for handling samples up to .39" (100 mm) thick and .79"(20 mm) or 1.97" (50 mm) wide.

---

Manufacturer: Shimpo

---

Warranty: One Year

---

Price: $130.00

---

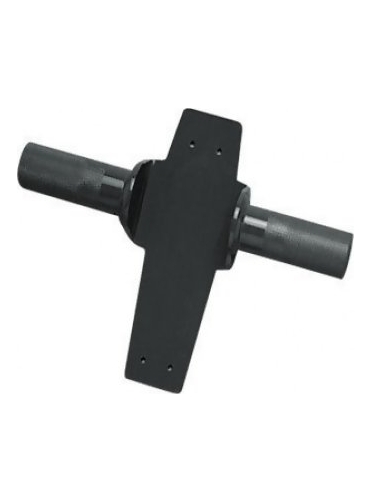

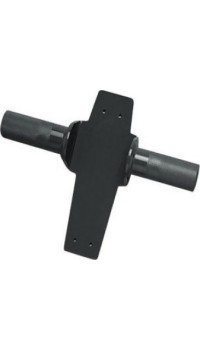

Shimpo FG-HANDLE Force Gauge Handle

---

Manufacturer: Shimpo

---

Warranty: One Year

---

Price: $325.00

---

Shimpo FG-M10TEN7 Heavy-Duty Tensile Grip

---

Manually tightened jaw faces can accept samples 1.25” (31.75 mm) wide and .25” (6.35 mm) thick. Contact faces are serrated hardened tool steel.

---

Warranty: One Year

---

Price: $185.00

---

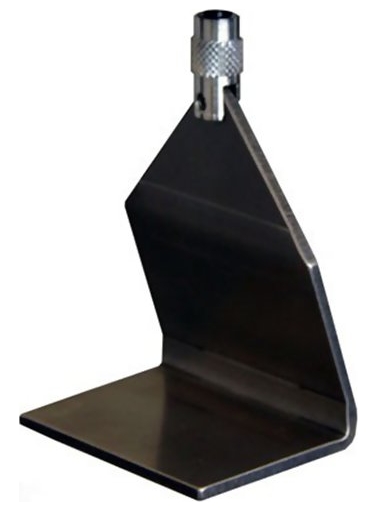

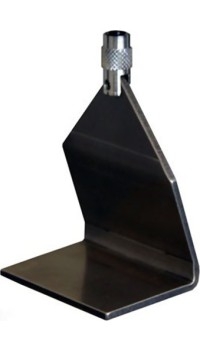

Shimpo FG-M6CBH60U Carton Box Pull Hook Grip

---

56 lb (25 kg) capacity

---

Price: $675.00

---

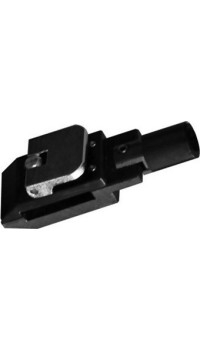

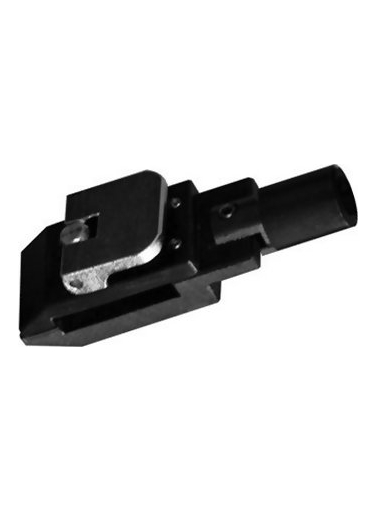

Shimpo FG-M6FLMQR20U Quick Release Film Grip, 45 lb (20 kg) Max. Capacity

---

0.8" (20 mm) width, 0.08" (2 mm) Max. Opening

---

Price: $150.00

---

Perfect for testing fine and medium gauge wire, ribbon, tape and paper. Two jaw widths and load capacities are available; both can handle material thickness up to .04" (1 mm)

---

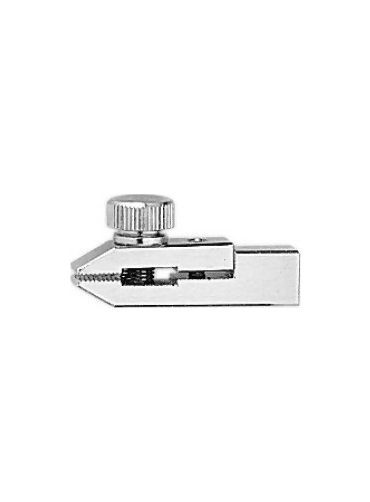

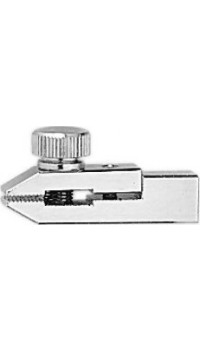

Shimpo FG-M6FPG Grips Fine & Medium Gauge Wire, Ribbon, Tapes

---

Manufacturer: Shimpo

---

Warranty: One Year

---

Price: $250.00

---

Each serrated gripping face is .79" (20 mm) square and can accept samples up to .79" (20 mm) thick.

---

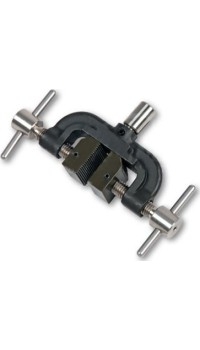

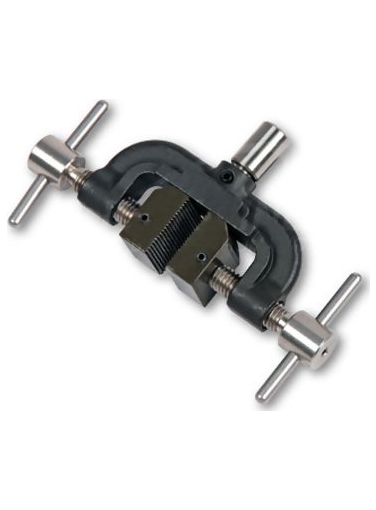

Shimpo FG-M6FTG20U Fat Chuck Tensile Grip

---

Warranty: One Year

---

Price: $160.00

---

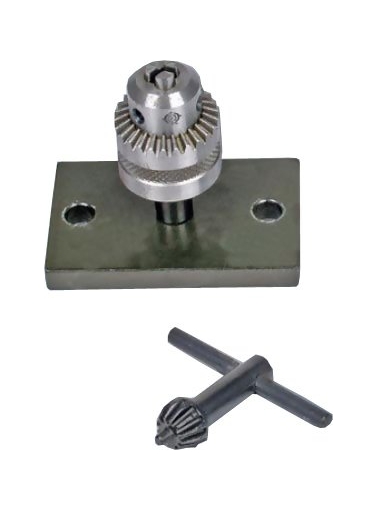

Shimpo FG-M6JAC5U Jacob’s Chuck Grip

---

Designed for testing low gauge wire and rigid rods; accepts material diameters from .02" (.05 mm) to .20" (5 mm).

---

Warranty: One Year

---

Price: $120.00 - $130.00

---

Ideal for gripping fine wires and filaments; three ranges for checking samples of .02", .04", .08" (0.5, 1 and 2 mm) thick.

---

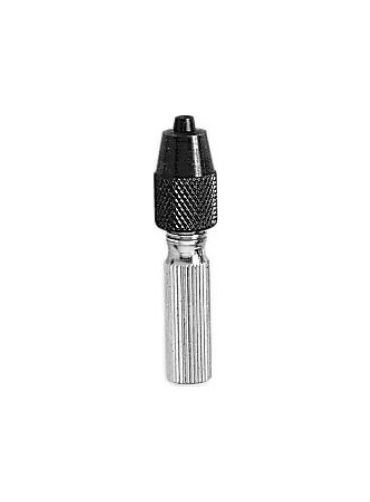

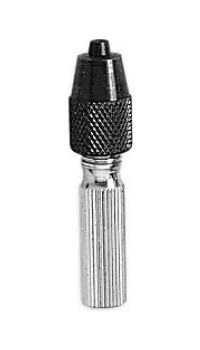

Shimpo FG-M6PIN Grips Fine Wires and Filaments

---

Manufacturer: Shimpo

---

Warranty: One Year

---
