Name: Mark-10 MR06-200 Force Sensor, Wire Crimp Pull Testing, 200 lbF / 1000 N
Brand: Mark-10
SKU: 1477
Price: 1840.00 USD
Availability: InStock

Mark-10 MR06-200 Force Sensor, Wire Crimp Pull Testing, 200 lbF / 1000 N

See More Force Sensors

Mark-10 MR06-200 Wire Crimp Pull Sensor Tester Hand-Operated Pull Tester

200 lbF / 1000 N capacity

Accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm) / 20 - 3 AWG.

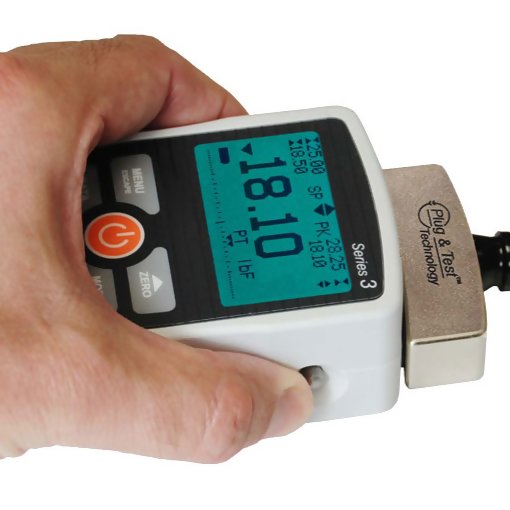

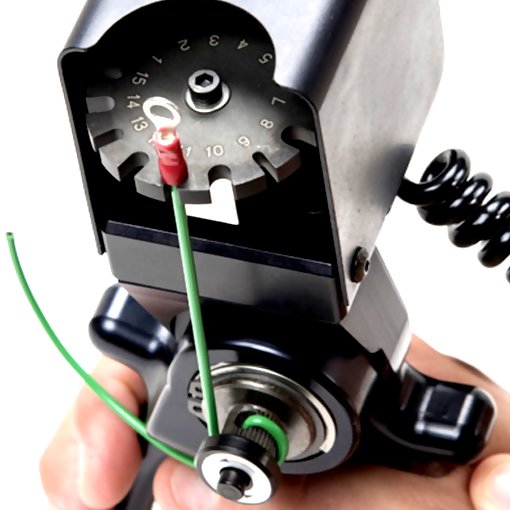

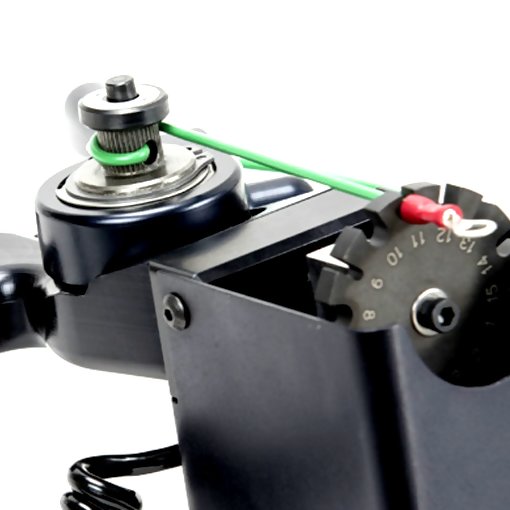

The Mark-10 MR06-200 Wire Crimp Pull Sensor Tester is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbF (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs.The peak force is recorded by a Series 7i, Series 5i or Series 3i. A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm), 20 - 3 AWG.

line Features
line

Includes NIST-traceable certificate of calibration
Compatible with the 7i, 5i and 3i digital indicators
Test wire diameters from 20 - 3 AWG

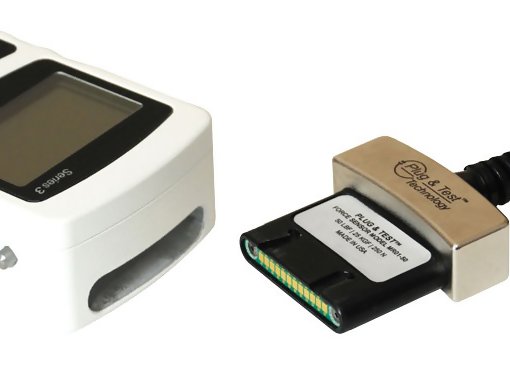

Unique Plug & TestTM connector holds all calibration and configuration data
Ergonomic handles and convenient tensioning mechanism
Measures pull forces
3 Year Warranty

line
Specifications
line

Accuracy	±0.5% of full scale + indicator
Weight	2.5 lb [1.2 kg]
Slot dimensions (in [mm])	0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4]
Slot Size in AWG	20 - 3 AWG
Warranty	3 years

line
Ranges
line

With Model 7i and 5i Indicators
