$1,020.00
    warranty 1 year
    Product Description
    General torque testing
    Jacobs chuck grip
    Capacities from 10 ozFin to 100 lbFin (7 to 1150 Ncm)
    Bi-directional

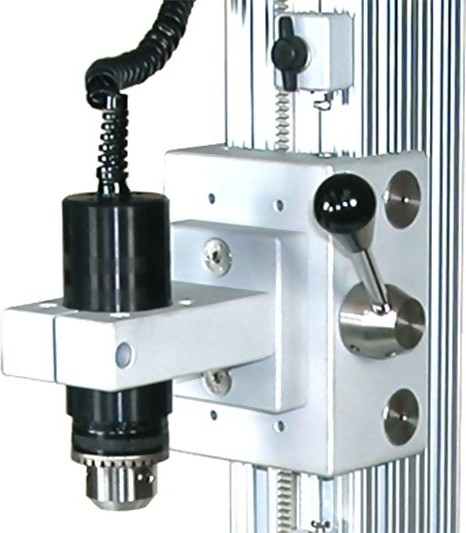

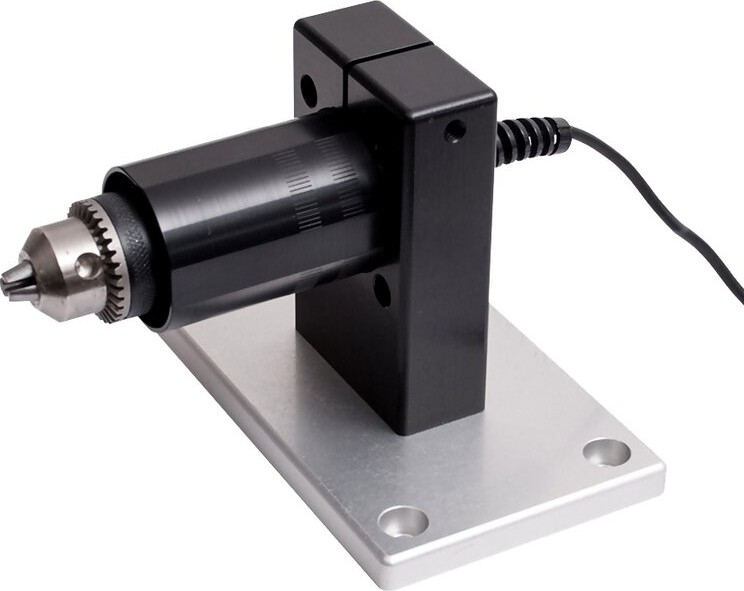

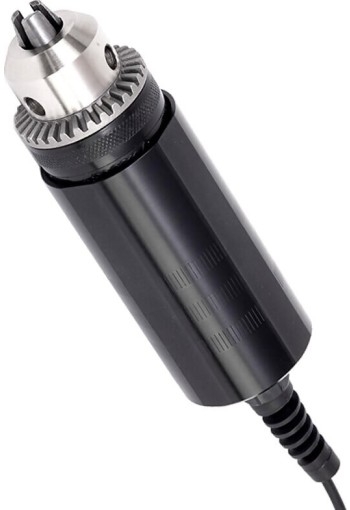

    The Mark-10 R50 Universal Torque Sensor measures bi-directional torque for a wide variety of applications. The R50 Contains achuck for samples up to 1/2" in diameter, depending on capacity. Thesensor can be used as a hand held device, or mounted to a torque teststand. Capacities available from 10 ozin to 100 lbin.

    Features

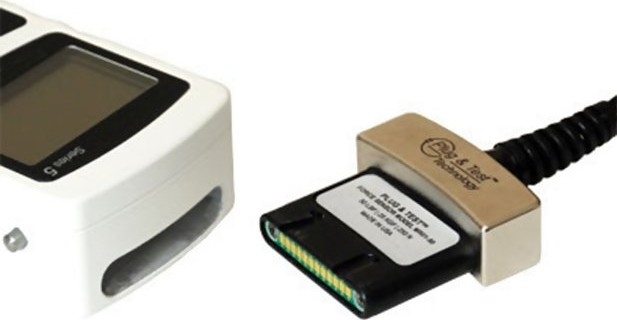

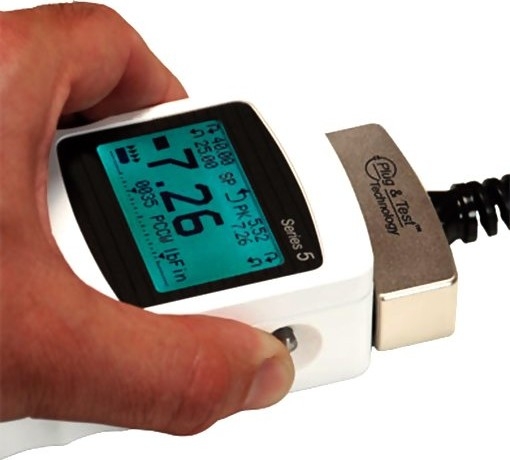

    • Member of the Plug & Test® family of interchangeable sensors and indicators
    • Rugged aluminum housing
    • NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
    • Warranty: 3 years

    Specifications


    Accuracy± 0.15% of full scale + indicator
    Weight0.015 lbs (0.007 kg)

    Force Ranges


    With Model 7I and 5I Indicators

    ModellbFinozFinlbFftgFcmkgFmmNmmNcmNm
    MR50-10Z10 x 0.005700 x 0.57 x 0.00570 x 0.057 x 0.005
    MR50-20Z20 x 0.011400 x 114 x 0.01140 x 0.114 x 0.01
    MR50-50Z50 x 0.023600 x 236 x 0.02350 x 0.235 x 0.02
    MR50-1212 x 0.005192 x 0.11 x 0.0005135 x 0.11.35 x 0.001
    MR50-5050 x 0.02800 x 0.54 x 0.002570 x 0.55.7 x 0.005
    MR50-100100 x 0.051600 x 18 x 0.0051150 x 0.511.5 x 0.005


    With Model 3I Indicator

    ModellbFinozFinkgFmmNcm
    MR50-10Z10 x 0.017 x 0.0057 x 0.005
    MR50-20Z20 x 0.0214 x 0.0114 x 0.01
    MR50-50Z50 x 0.0536 x 0.0536 x 0.05
    MR50-1212 x 0.01192 x 0.2135 x 0.1
    MR50-5050 x 0.05800 x 1570 x 0.5
    MR50-100100 x 0.11600 x 21150 x 1

    Related Products


    Series-7i
    Professional Force and Torque Indicator

    • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
    related
    Click image for more info

    Series-5i
    Advanced Force/Torque Indicator

    • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
    related
    Click image for more info

    Series-3i
    Force and Torque Indicator

    • Interchangeable force and torque sensors through Plug & Test™technology
    • USB data output
    related
    Click image for more info

    Downloads


    ABQMark-10 R50 Universal Torque Sensor - Data Sheet
