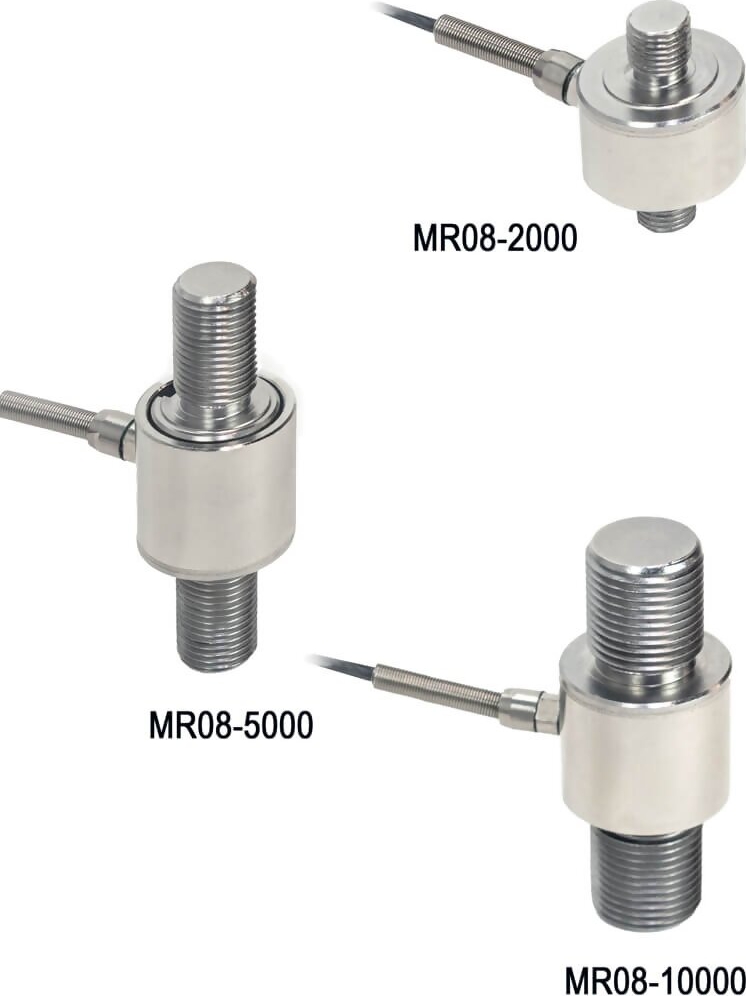

Mark-10 R08 Tension and Compression Force Sensors

See More Force Sensors

Threaded Force Sensor

3 Ranges up to 10000 lbF / 5000 kgF / 50000 N / 50 kN

Measures tensile and compressive forces

The Mark-10 R08 Tension and Compression Force Sensors is a threaded niversal sensor for tension and compression applications up to 10,000 lbF (50 kN). Threaded rods on each end allow for a variety of mounting configurations.

Compatible with Mark-10 indicators (sold separately), through unique Plug & Test® technology. A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.

line
Features
line

Member of the Plug & Test® family of interchangeable sensors and indicators

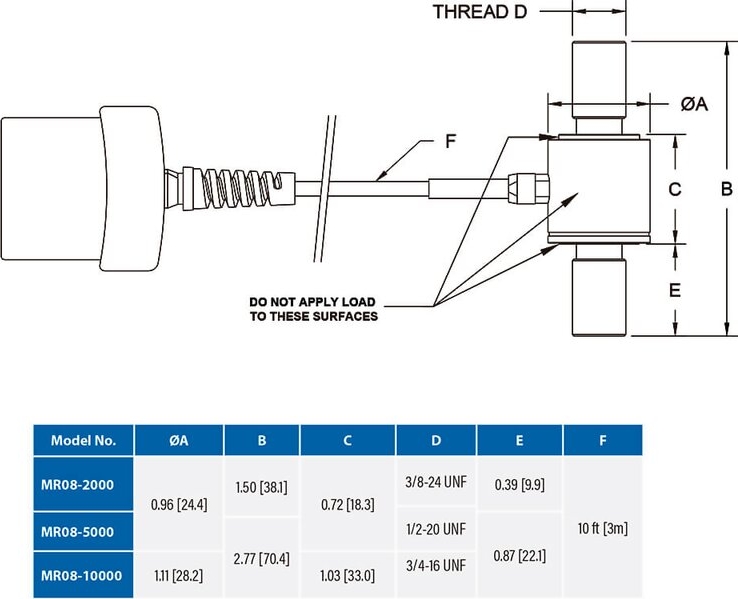

Threaded rods on both ends
17-4PH stainless steel / IP64 design withstands harsh environments
NIST-traceable certificate of calibration with data is included. A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
Warranty: 3 years

line
Specifications
line

Accuracy	±0.5% of full scale + indicator
Weight	MR08-2000: 0.3 lb [0.1 kg] MR08-5000: 0.4 lb [0.1 kg] MR08-10000:0.6 lb [0.2 kg]
Shipping weight (all models)	2 lb [0.9 kg]
Country of origin	USA

line Capacity x Resolution line With Models M7I & M5I Indicators

Model	lbF	ozF	gF	kgF	N	kN
MR08-2000	2000 x 1	32000 x 20	-	1000 x 0.5	10000 x 5	10 x 0.005
MR08-5000	5000 x 2	-	-	2500 x 1	25000 x 10	25 x 0.01
MR08-10000	10000 x 5	-	-	5000 x 2	50000 x 25	50 x 0.02
