Name: Mark-10 R51 Universal Torque Sensor
Brand: Mark-10
SKU: 829

Mark-10 R51 Universal Torque Sensor

See More Force Sensors

General torque testing

Interchangeable attachments

Capacities from 10 ozFin to 100 lbFin (7 to 1150 Ncm)

Bi-directional

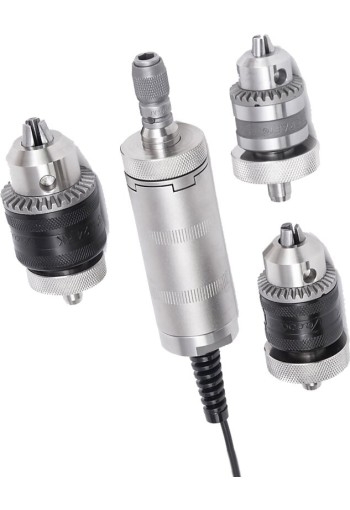

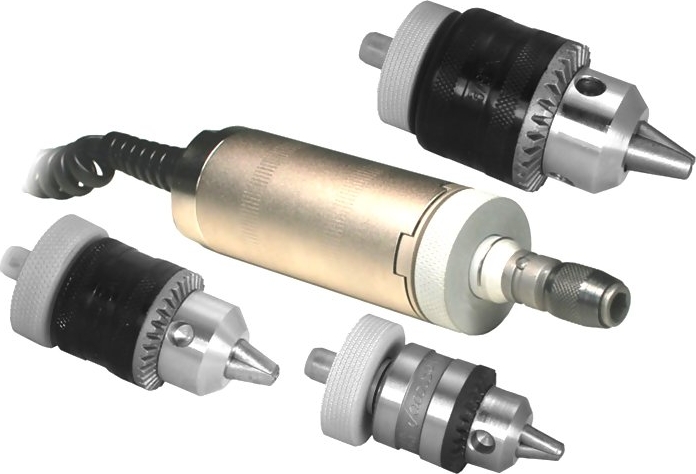

A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The Mark-10 R51 Universal Torque Sensor has superb overload protection and is available in capacities from 10 ozin to 100 lbin.

line
Features
line

Member of the Plug & Test® family of interchangeable sensors and indicators
Outstanding overload protection

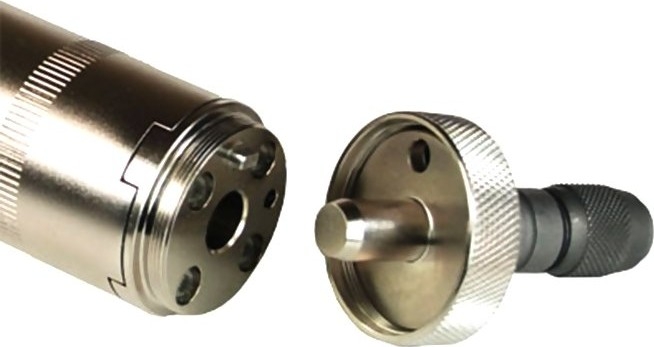

Interchangeable chucks (order separately)
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 3 years

line
Specifications
line

Accuracy	± 0.20% of full scale ±1 digit + indicator
Weight	1.4 lbs (0.6 kg)

line
Force Ranges
line

With Model 7i and 5i Indicators

Model	lbFin	ozFin	lbFft	gFcm	kgFmm	Nmm	Ncm	Nm
MR51-10Z	–	10 x 0.005	–	700 x 0.5	7 x 0.005	70 x 0.05	7 x 0.005	–
MR51-20Z	–	20 x 0.01	–	1400 x 1	14 x 0.01	140 x 0.1	14 x 0.01	–
MR51-50Z	–	50 x 0.02	–	3600 x 2	36 x 0.02	350 x 0.2	35 x 0.02	–
MR51-12	12 x 0.005	192 x 0.1	1 x 0.0005	–	–	–	135 x 0.1	1.35 x 0.001
MR51-50	50 x 0.02	800 x 0.5	4 x 0.002	–	–	–	570 x 0.5	5.7 x 0.005
MR51-100	100 x 0.05	1600 x 1	8 x 0.005	–	–	–	1150 x 0.5	11.5 x 0.005

With Model 3i Indicator

Model	lbFin	ozFin	kgFmm	Ncm
MR51-10Z	–	10 x 0.01	7 x 0.005	7 x 0.005
MR51-20Z	–	20 x 0.02	14 x 0.01	14 x 0.01
MR51-50Z	–	50 x 0.05	36 x 0.05	36 x 0.05
MR51-12	12 x 0.01	192 x 0.2	–	135 x 0.1
MR51-50	50 x 0.05	800 x 1	–	570 x 0.5
MR51-100	100 x 0.1	1600 x 2	–	1150 x 1

line
Related Products
line

Series-7i
Professional Force and Torque Indicator

Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

line

Series-5i
Advanced Force/Torque Indicator

1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs

line

Series-3i
Force and Torque Indicator

Interchangeable force and torque sensors through Plug & Test™technology
USB data output

line Downloads
line

Mark-10 R51 Universal Torque Sensor - Data Sheet

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Mark-10 MR51-10OZ Universal Torque Sensor Series R51, 10 ozFin / 7 Ncm Capacity View Model Details

$955.00

Mark-10 MR51-20Z Universal Torque Sensor Series R51, 20 ozFin / 14 Ncm Capacity View Model Details

$955.00

Mark-10 MR51-50Z Universal Torque Sensor Series R51, 50 ozFin / 35 Ncm Capacity View Model Details

$955.00

Mark-10 MR51-12 Universal Torque Sensor Series R51, 12 lbFin / 135 Ncm Capacity View Model Details

$880.00

Mark-10 MR51-50 Universal Torque Sensor Series R51, 50 lbFin / 570 Ncm Capacity View Model Details

$880.00

Mark-10 MR51-100 Universal Torque Sensor Series R51, 100 lbFin / 1150 Ncm Capacity View Model Details

$880.00

Recommended Accessories

PRICE

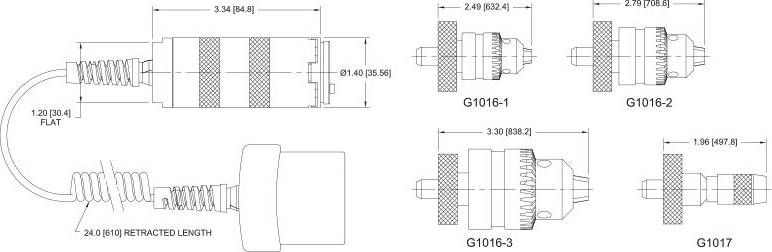

G1016-1 Jacobs chuck for STH, 0.028 in - 0.25 in

$198.00

G1016-2 Jacobs chuck for STH, 0.062 in - 0.375 in

$204.00

G1016-3 Jacobs chuck for STH, 0.078in - 0.5 in

$210.00

G1017 Bit holder for STH, 1/4 inch hex

$210.00
