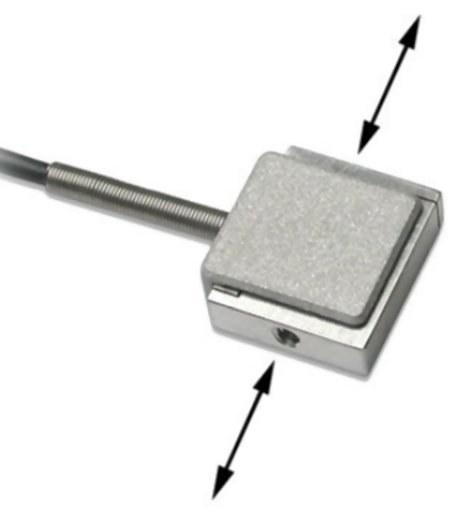

The Mark-10 Series R04 Miniature S-Beam Force Sensor is an extremely compact force measurement sensors for tensile and compressive loads in applications with limited space. The Mark-10 Series R04 Miniature S-Beam Force Sensor is available in capacities from 0.25 to 100 lbF (1 to 500 N). Every capacity has the same miniature dimensions. The sensors feature outstanding mechanical overload protection and threaded holes on two sides for the mounting of attachments or implements.

Note: Mark-10 Series R04 Miniature S-Beam Force Sensor is transitioning from #4-40 UNC to M3 x 0.5 thread. Add suffix “M” to denote M3 thread (ex. MR04-50M). #4-40 is available until inventory is depleted. Models no longer available are noted in the Ordering Information table below. Please inquire for the latest inventory information.

Features

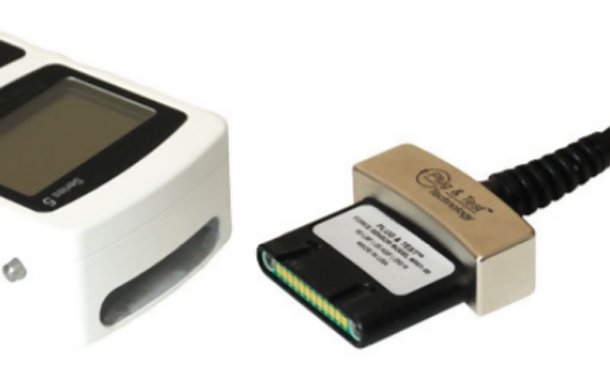

• Member of the Plug & Test® family of interchangeable sensors and indicators
• Ultra-compact size
• Measures tensile and compressive forces
• NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
• Warranty: 3 years

Specifications

Force Ranges

With Model 7i and 5i Indicators

With Model 3i Indicator

N/A = Series 3i is unable to display these units

Related Products

Series-7i Professional Force and Torque Indicator Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC

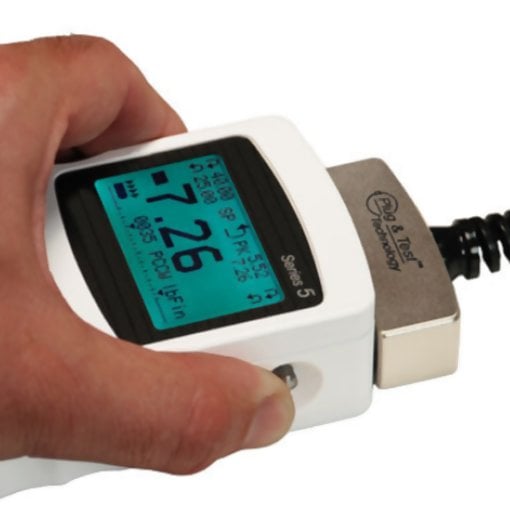

Series-5i Advanced Force/Torque Indicator 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs

Series-3i Force and Torque Indicator Interchangeable force and torque sensors through Plug & Test™technology USB data output

Dimensions

Downloads

Mark-10 R04 Miniature S-Beam Force Sensor - Data Sheet
