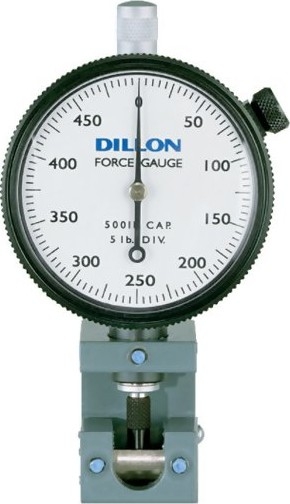

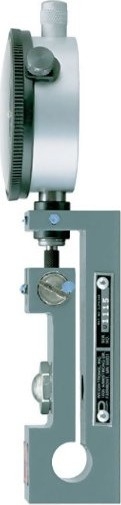

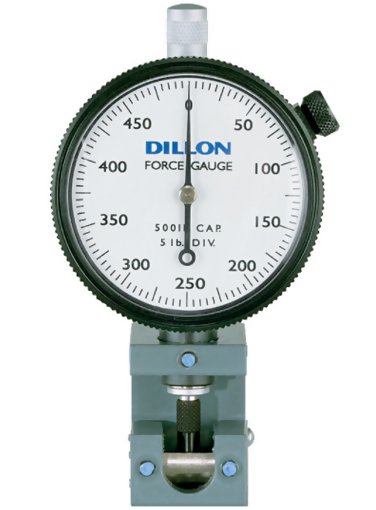

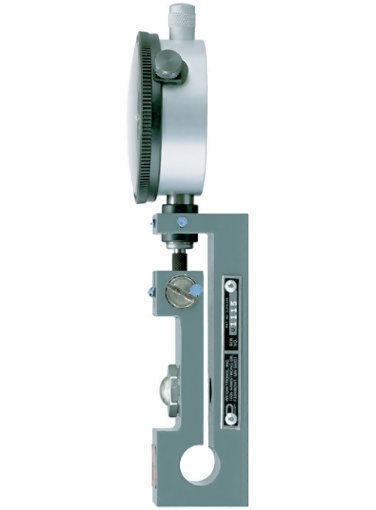

Dillon U-Force Slim-line Mechanical Force Gauge

See More Mechanical Force Gauges

Dillon U-Force Slim-line Mechanical Force Gauge

See More Mechanical Force Gauges
Price:
$2,145.00 - $3,328.00
    warrenty

    Product Description
    The Dillon U-Force Slim-line Mechanical Force Gauge is an accurate (±1% of full range) mechanical compression measurement instrument. Its slim-line design has repeatedly proven valuable in installations where space is at a premium
    6 capacities ranging from 25 lb x .25 lb to 5,000 lb x 50 lb and 4 capacities ranging from 10 kg x .1 kg to 500 kg x 5 kg.

    The Dillon U-Force Slim-line Mechanical Force Gauge is an accurate (±1% of full range) mechanical compression measurement instrument. Its slim-line design has repeatedly proven valuable in installations where space is at a premium.

    The versatility of the Dillon U-Force is demonstrated by the fact that it can be used as a hand-held device, permanently mounted on a flat surface plate, or used in test fixtures.

    The Dillon U-Force employs a deflection beam machined from aircraft quality alloy steel and heat treated to develop optimum strength and spring characteristics. A precision dial indicator is mounted at the null point of this beam.

    Compression force is normally applied against a single pressure fitting mounted on the upper half of the beam. When load is exerted, the beam moves downward causing a slanted anvil on the free end to push against the indicator plunger. The indicator reading is a direct representation of the applied load.

    Dillon U-Force are available for measurement in pounds or kilograms. There are 6-pound capacities ranging from 25 x .25 to 5,000 x 50 lb. The 4 kilogram capacities range from 10 x .1 to 500 x 5 kg.

    We also offers high-capacity gauges with pounds capacities from 500 to 5,000 lb and a metric model with a capacity of 500 kg. High-capacity gauges all have flat-bottom design.


    line
    Force Ranges
    line

    ModelCapacityResolution
    30354-001725 lbf0.25 lb
    30354-0033100 lbf1 lb
    30354-0058250 lbf2.5 lb
    30482-0020500 lbf5 lb
    30482-00531,000 lbf10 lb
    30478-00345,000 lbf50 lb
    30354-006610 kgf0.1 kg
    30354-008250 kgf0.5 kg
    30354-0090100 kgf1 kg
    30482-0079500 kgf5 kg


    line
    Options
    line

    • Zero position - The zero position on the indicator dial can be factory positioned at 12 o'clock, 3 o'clock, 6 o'clock, or 9 o'clock. The standard position is the 6 o'clock position.
    • Maximum pointer — Model U Force Gauges can include a maximum pointer which remains at peak load until it is reset.
    • Shockless dial indicator — Offers added protection in applications where force is applied or released rapidly.
    • Dial orientation — The dial indicator can be factory positioned at 0° (standard), 90°, 180°, 270° clockwise. Photos on this page show standard dial orientation.
    Note: maximum pointer and shockless dial indicator cannot be offered on the same unit


    line

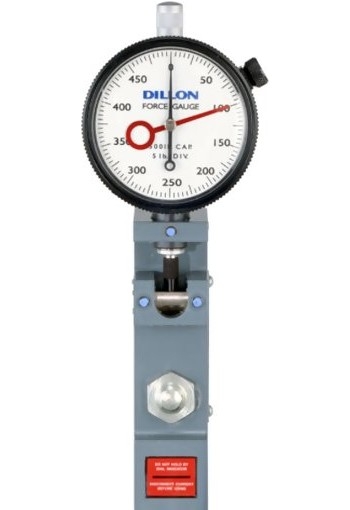

    How the U-Force Works
    line

    1.Deflection beam
    2.Dial indicator with zero at standard 6:00 position
    3.Pressure fitting
    4.Maximum load pointer (optional)
    5.Indicator plunger
    6.Slanted Anvil

    Compression force is normally applied against a single pressure fitting mounted on the upper half of the beam. (For accurate calibration, designate the type of pressure fitting you wish to use with the U Force Gauge. They are of four types: domed, cupped, flat, or a flat nylon insert. (Flat bottom gauges require only one fitting).

    When load is exerted, the beam moves downward causing a slanted anvil on the free end to push against the indicator plunger. The indicator reading is a direct representation of the applied load.


    line
    Pressure Fittings
    line

    Load is applied tot he U-Force through harded pressure fittings.

    Replacement fittings for:
    Recessed-bottom - two fittings
    Float-bottom - - one fitting

    Fittings are not included. Choose fittings from the below list.

    lineFor 25 to 250 lb (10 to 100 kg) capacity gauges:

    ABQ
    30160-0011

    Flat Surface Pressure Fitting
    ABQ
    30156-0017

    Cupped Surface Pressure Fitting
    ABQ
    30159-0014

    Domed Surface Pressure Fitting
    ABQ
    30158-0015

    Nylon Insert Pressure Fitting

    lineFor 500 lb, 1,000 lb and 500 kg capacity gauges:

    ABQ
    30483-0011

    Domed Surface Pressure Fitting
    ABQ
    30378-0019

    Cupped Surface Pressure Fitting
    ABQ
    30484-0010

    Flat Surface Pressure Fitting


    lineFor 5,000 lb capacity gauges:

    ABQ
    30125-0015

    Cupped Surface Pressure Fitting
    ABQ
    30475-0011

    Flat Surface Pressure Fitting
    ABQ
    30434-0011

    Domed Surface Pressure Fitting



    line
    Flat Bottom
    line

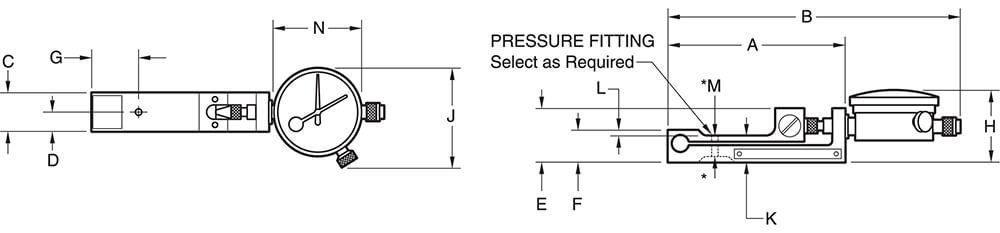

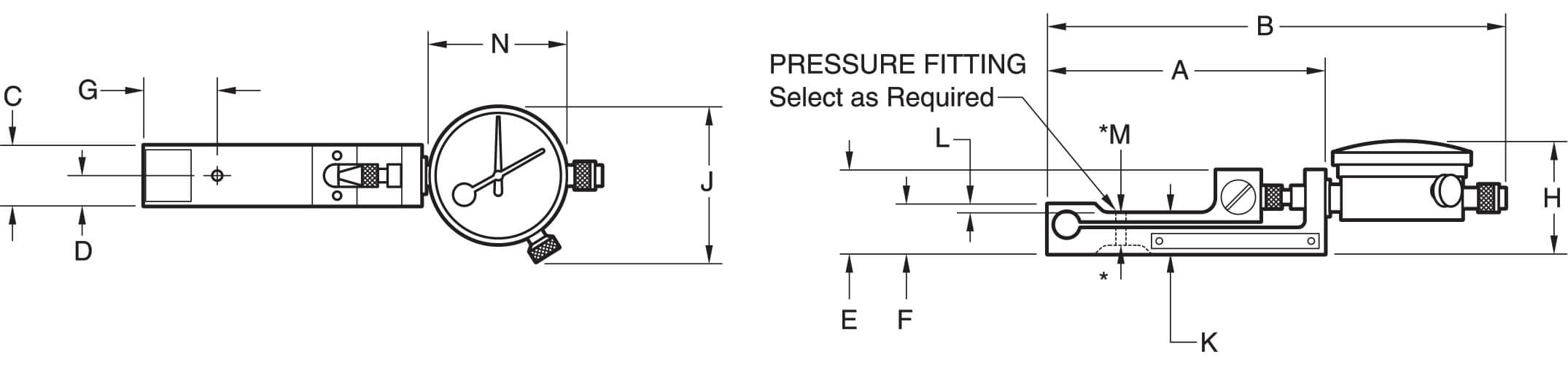

    Low-Range Flat-Bottom Model U Force Gauge

    ABQ

    Part No.ABCD
    30354-0017
    30354-0066
    30354-0033
    30354-0082
    30354-0058
    30354-0090
    3.28"
    83.3 mm
    5.50"
    139.6 mm
    0.73"
    18.5 mm
    0.36"
    9.1 mm

    Part No.EFGH
    30354-0017
    30354-0066
    30354-0033
    30354-0082
    30354-0058
    30354-0090
    0.97"
    24.6 mm
    0.56"
    14.2 mm
    0.73"
    18.5 mm
    0.36"
    9.1 mm

    Part No.JKLM
    30354-0017
    30354-0066
    30354-0033
    30354-0082
    30354-0058
    30354-0090
    1.87"
    47.5 mm
    0.46"
    11.7 mm
    0.094"
    2.4 mm
    1.67"
    42.4 mm

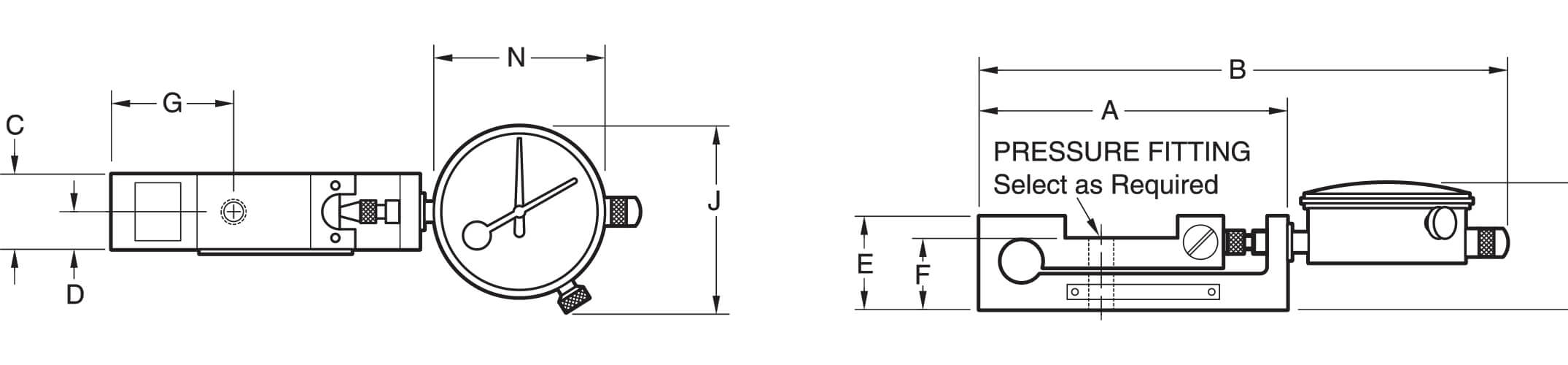

    lineHigh-Range Flat Bottom Model U Force Gauge

    ABQ

    Part No.ABCDE
    30482-0020
    30482-0053
    30482-0079
    3.87"
    98.0 mm
    6.75"
    171.3 mm
    0.98"
    24.9 mm
    0.49"
    12.4 mm
    1.25"
    31.5 mm
    30478-00344.74"
    120.1 mm
    7.94"
    201.5 mm
    0.98"
    24.9 mm
    0.49"
    12.4 mm
    1.72"
    43.7 mm

    Part No.FGHJN
    30482-0020
    30482-0053
    30482-0079
    0.92"
    23.6 mm
    1.52"
    38.6 mm
    1.67"
    42.4 mm
    2.44"
    63.5 mm
    2.25"
    57.2 mm
    30478-00341.41"
    35.5 mm
    2.06"
    52.3 mm
    2.06"
    52.3 mm
    2.88"
    72.8 mm
    2.75"
    69.9 mm


    line
    Downloads
    line

    Dillon U-Force Slim-line Mechanical Force Gauge - Instruction Manual
    Dillon U-Force Slim-line Mechanical Force Gauge - Data Sheet
