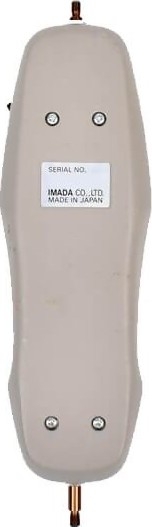

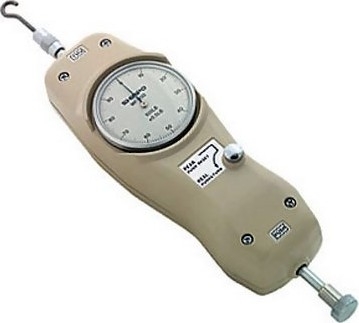

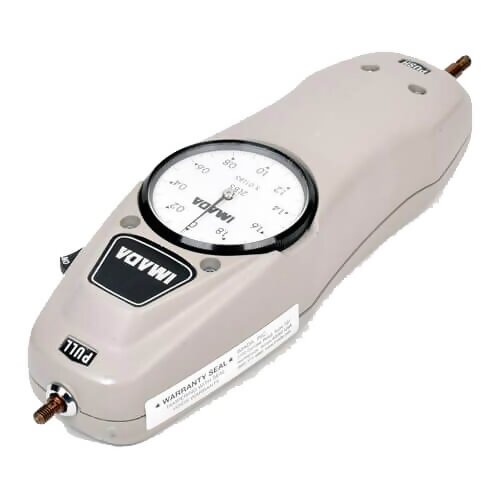

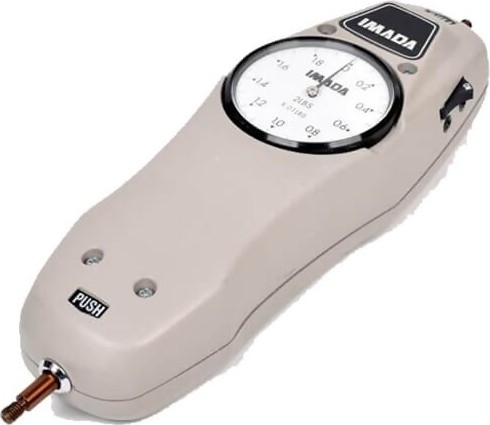

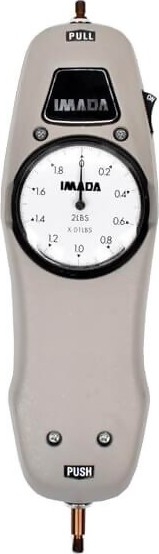

Imada MF Mechanical Force Gauge

See More Mechanical Force Gauges

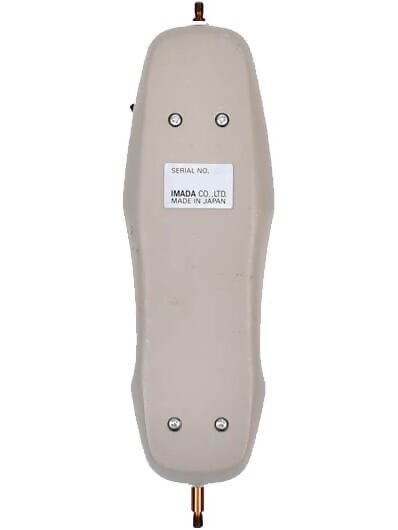

Imada MF Mechanical Force Gauge

Imada MF Mechanical Force Gauge

See More Mechanical Force Gauges
Price:
$611.00
    warrenty

    Product Description

    Ergonomic, heavy-duty metal construction



    Intrinsically safe

    Capacity up to 100 lbf

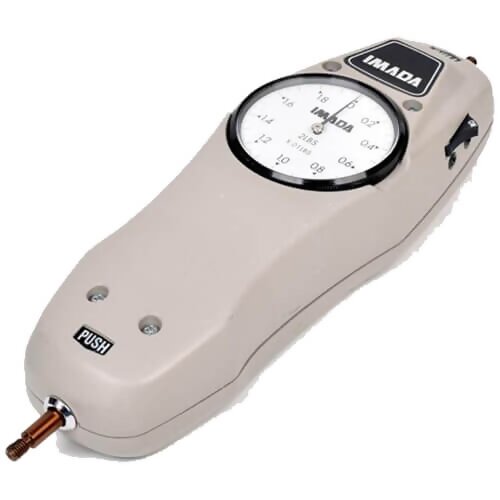

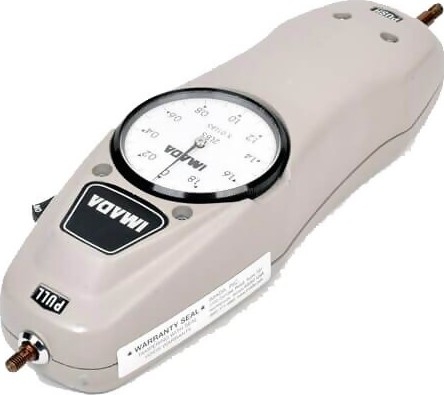

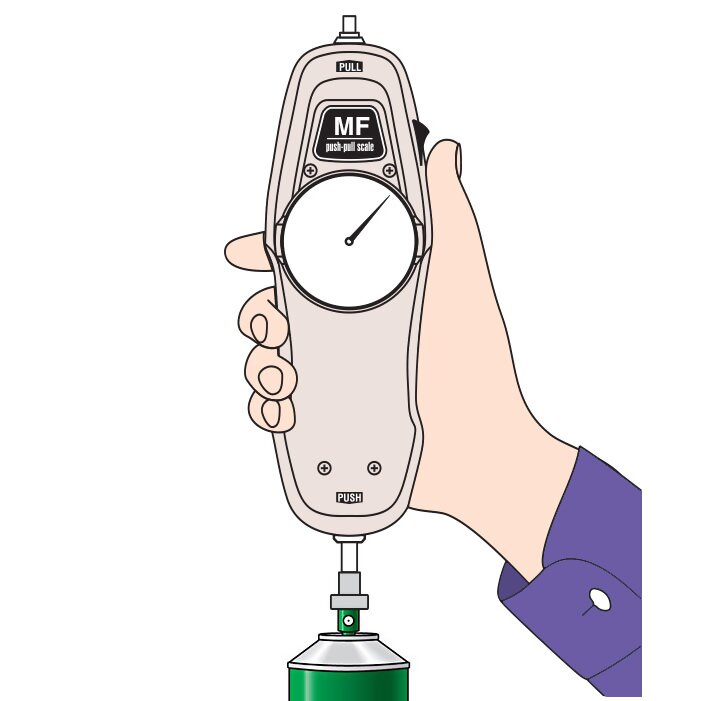

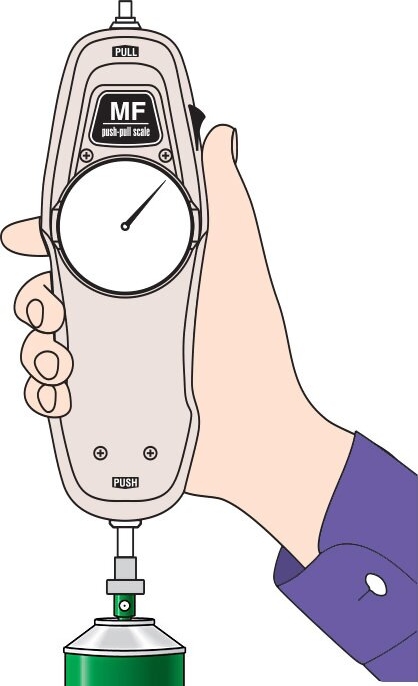

    The Imada MF Mechanical Force gauges are the highest accuracy gauges available, making them ideal for precision tension and compression measurements in laboratory environments. Ergonomic design makes it ideal for hand held use, or the force gauge can be mounted to a test stand. The Zero-Tare ring allows you to zero the gauge to compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch allows users to easily switch between Real-Time Mode and Peak Mode. The MF force gauge is an analog force gauge and does not require charging, it is available for use at any time. Many ranges are available to cover all of your measurement needs (also available in Newtons).

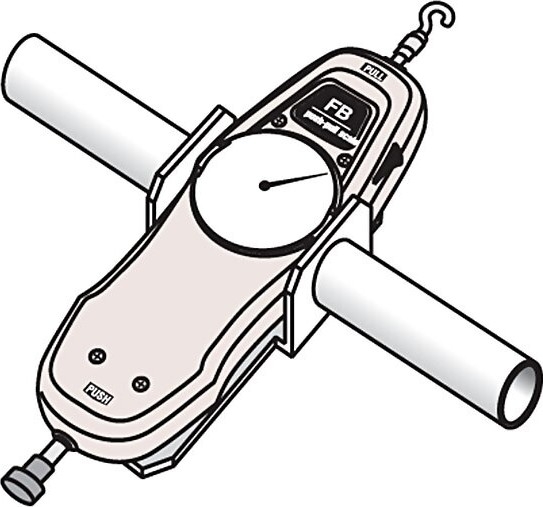

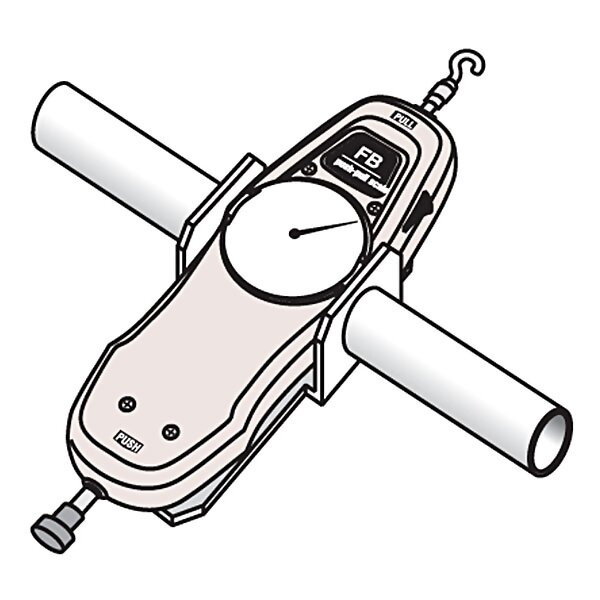

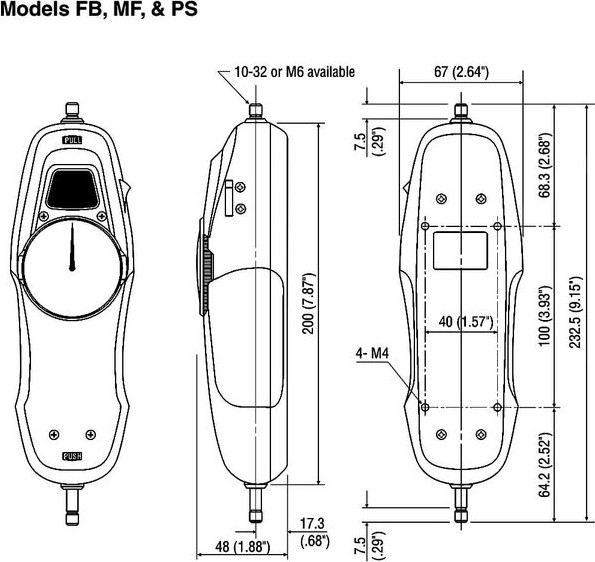

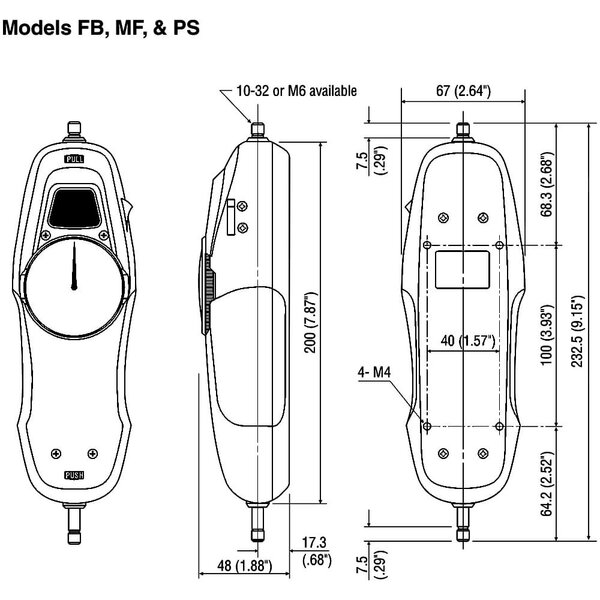

    The resolution of the MF is 2 times finer than the FB mechanical force gauge. The ergonomic design is well suited for hand held testing, and the gauges have four threaded holes for mounting to a test stand or the optional handle.


    ISO-17025 certificates are available for an additional charge.



    line
    Kit Contents
    line








    • Imada MF Mechanical Force Gauge

    • 7 Measuring Sttachments (flat head, cone, chisel, notched, small hook, large hook, and Y-hook)

    • Extension Rod

    • Certificate of Calibration Traceable to NIST

    • Hard Plastic Carrying Case



    line
    Features
    line



    • Push/Pull

    • Ergonomic, heavy-duty metal construction

    • No batteries needed

    • Intrinsically safe

    • Capacity up to 100 lbf

    • Accuracy ±0.3% F.S.

    • Overload capacity 165 lbf on all ranges

    • Tare ring

    • Real time and peak mode

    • Full set of accessories and carrying case included

    • Mechanical force gauges are not recommended for destructive testing or shock load applications


    line
    Ranges
    line


























































    Model Capacity (Resolution)
    Pounds
    MF-32oz 32 ozf (0.25 ozf)
    MF-80oz 80 ozf (1 ozf)
    MF-2 2 lbf (0.01 lbf)
    MF-5 5 lbf (0.025 lbf)
    MF-10 10 lbf (0.05 lbf)
    MF-20 20 lbf (0.1 lbf)
    MF-30 30 lbf (0.2 lbf)
    MF-50 50 lbf (0.25 lbf)
    MF-100 100 lbf (0.5 lbf)
    Kilograms
    MF-2kg 2 kgf (10 gf)
    MF-3kg 3 kgf (20 gf)
    MF-5kg 5 kgf (25 gf)
    MF-10kg 10 kgf (50 gf)
    MF-20kg 20 kgf (100 gf)
    MF-30kg 30 kgf (200 gf)
    MF-50kg 50 kgf (250 gf)
    Newtons
    MF-10N 10 N (0.05 N)
    MF-20N 20 N (0.1 N)
    MF-30N 30 N (0.2 N)
    MF-50N 50 N (0.25 N)
    MF-100N 100 N (0.5 N)
    MF-200N 200 N (1 N)
    MF-300N 300 N (2 N)
    MF-500N 500 N (2.5 N)
