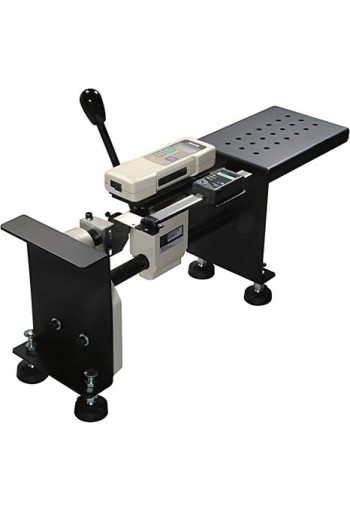

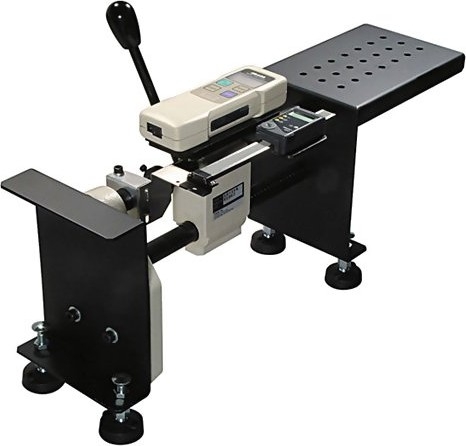

Imada NLH Horizontal Lever Test Stand
Maximum load 220 lbf (100 kgf)
Stroke 2″

The Imada NLH-220 Horizontal Lever Operated Force Measurement Test Stand is designed for a wide range of tension and compression force testing applications. The rugged design provides maximum versatility and reliability.

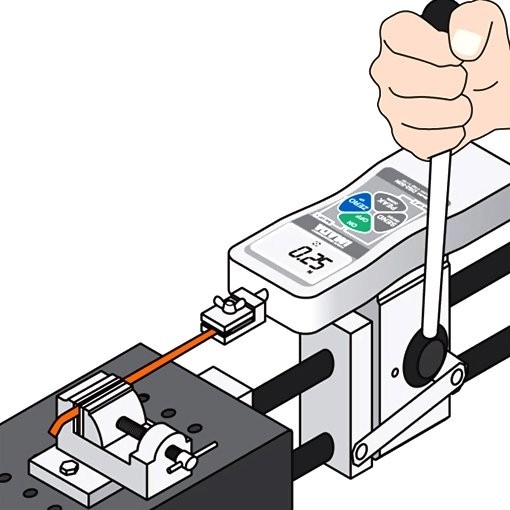

Rubber feet and a rugged metal construction provide a stable platform for tension or compression testing. The Imada NLH-220 is unaffected by gravity and does not employ a return spring, making it perfect for crimp testing and force testing where rapid sample loading is desirable. A horizontal setup creates unlimited clearance, and can also be ideal for testing very large objects.

For applications requiring distance measurement, the Imada NLH-220-S is equipped with a digital distance meter to measure displacement. The digital distance meter has PC output capabilities, for more information click here. The stand will accommodate any of the standard range Imada force gauges. The large working platform has a 7 x 3 array of M8 holes to accommodate a variety of holding fixtures. AP-002 Adapter Plate is available to mount most other brand force gauges to the NLH test stand.


line
Features
line

  • Force Gauge and Distance Sensor are Sold Separately
  • Tension and compression testing
  • Horizontal positioning is easy to control
  • Lever action allows for rapid testing
  • Large work area accommodates a wide variety of samples


line
Specifications
line

Capacity220 lbs / 100 Kg
Stroke2" / 50mm
Optional Distance Meter Specifications
Resolution0.0005" / 0.01 mm
Accuracy0.1% of reading or 0.005"/0.1 mm whichever is greater
