Product Description

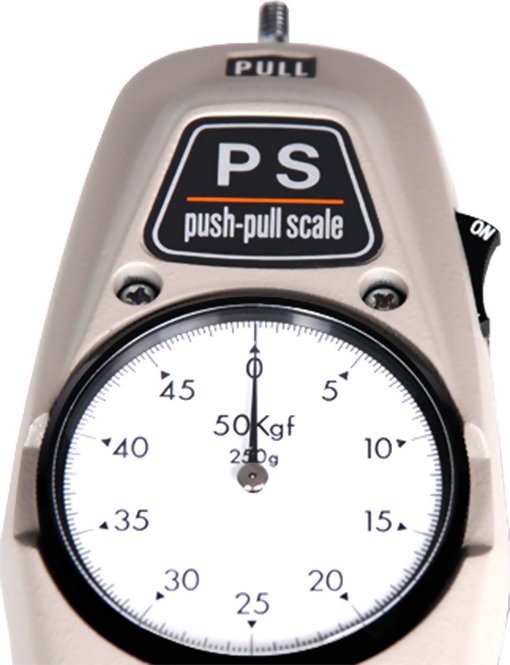

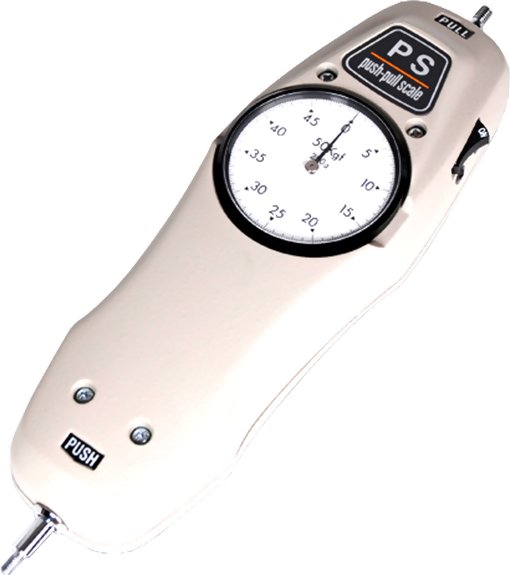

High Precision Mechanical Force Gauge
25 Ranges up 100lbs / 50 Kg / 500 N
Intrinsically Safe for use in hazardous environments

Accuracy of ± 0.2%
23 Ranges Available

Rugged construction and excellent accuracy make Imada PS High Precision Mechanical Force Gauge ideal for tension and compression quality control measurements. Many ranges are offered, calibrated in Pounds, Kilograms, or Newtons.


line

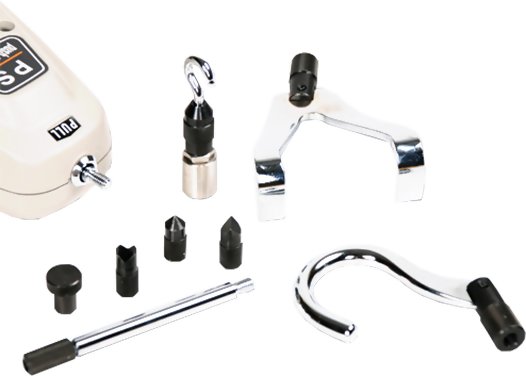

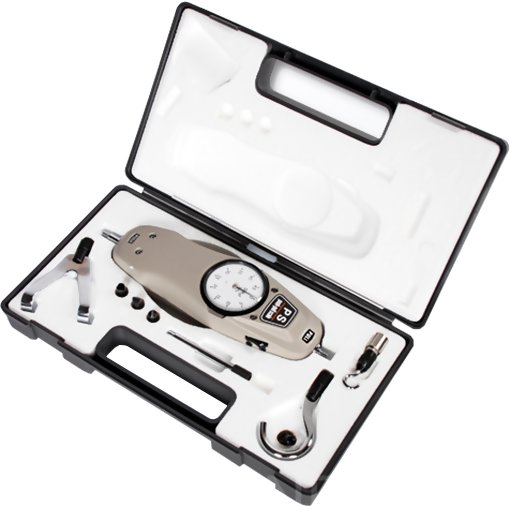

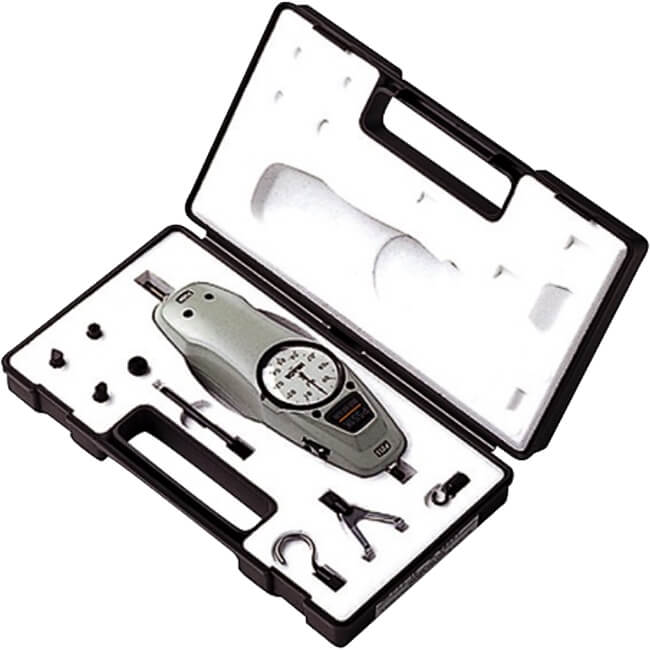

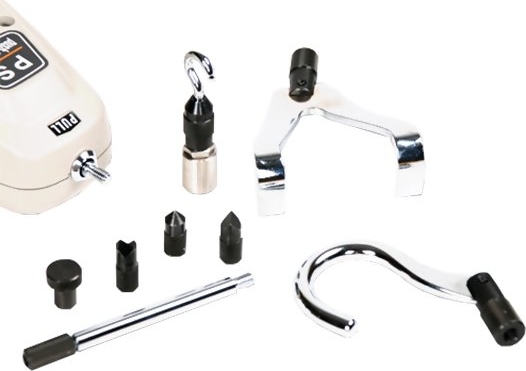

Kit Contents
line

  • Imada PS High Precision Mechanical Force Gauge
  • Flat head
  • Cone
  • Chisel notched
  • Small hook
  • Large hook
  • Y-hook
  • 3 three inch extension rod
  • Instruction manual
  • Carrying case


line
Features
line

  • Ideal for push / pull measurements in all environments
  • Real Time force display with peak capture
  • Free manufacturer´s calibration report
  • Full set of accessories and carrying case included
  • Zero Tare Ring to zero the gauge in each position
  • Hand-held use or can be mounting a on test stand
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty


line
Force Ranges
line

ModelCap. / Res ModelCap. / Res
PS-22 lb (0.01 lb)PS-20KG20 kg (100 g)
PS-55 lb (0.025 lb)PS-30KG30 kg (200 g)
PS-1010 lb (0.05 lb)PS-50KG50 kg (250 g)
PS-2020 lb (0.1 lb)PS-10N10 N (0.05 N)
PS-3030 lb (0.2 lb)PS-20N20 N (0.1 N)
PS-5050 lb (0.25 lb)PS-30N30 N (0.2 N)
PS-100100 lb (0.5 lb)PS-50N50 N (0.25 N)
PS-1KG1 kg (5 g)PS-100N100 N (0.5 N)
PS-2KG2 kg (10 g)PS-200N200 N (1 N)
PS-3KG3 kg (20 g)PS-300N300 N (2 N)
PS-5KG5 kg (25 g)PS-500N500 N (2.5 N)
PS-10KG10 kg (50 g)

Displacement at full scale capacity is 10mm


line

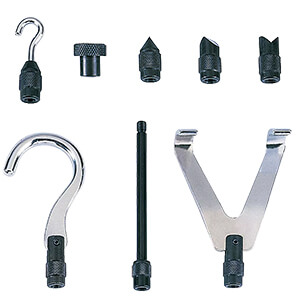

Standard Attachments
line

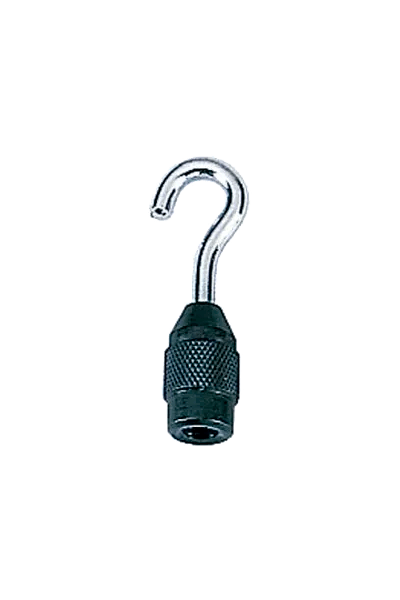

Small Hook

  • A-1 20 lbf capacity
  • S-1 110 lbf capacity
  • SH-1 220 lbf capacity

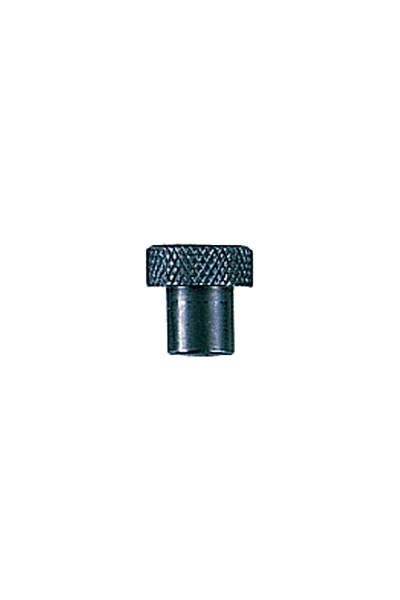

Flat Tip

  • A-2 20 lbf capacity
  • S-2 110 lbf capacity
  • SH-2 220 lbf capacity

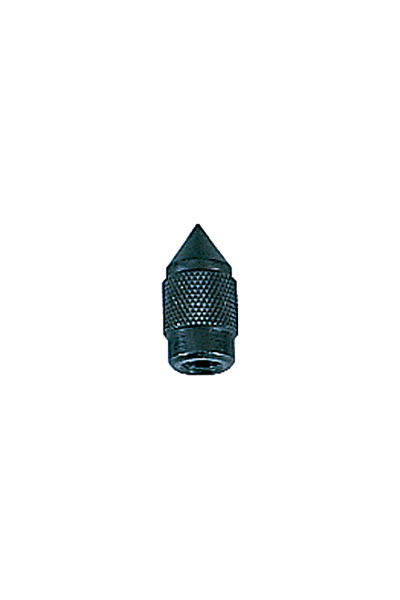

Conical Tip

  • A-3 20 lbf capacity
  • S-3 110 lbf capacity
  • SH-3 220 lbf capacity

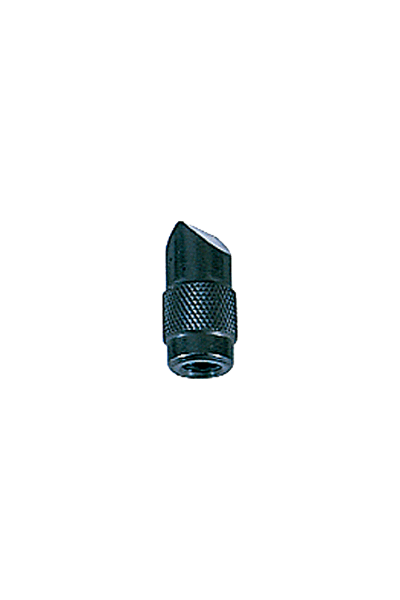

Chisel Tip

  • A-4 20 lbf capacity
  • S-4 110 lbf capacity
  • SH-4 220 lbf capacity

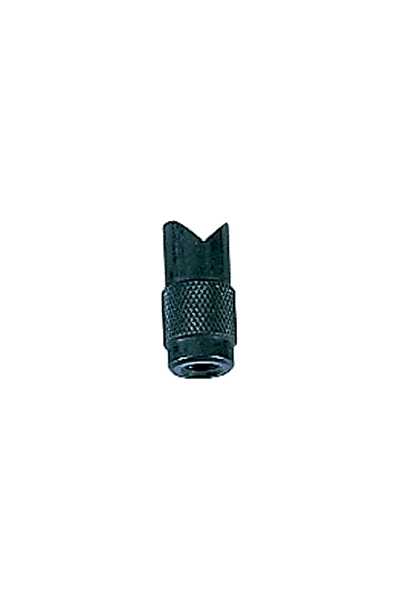

Notched Tip

  • A-5 20 lbf capacity
  • S-5 110 lbf capacity
  • SH-5 220 lbf capacity

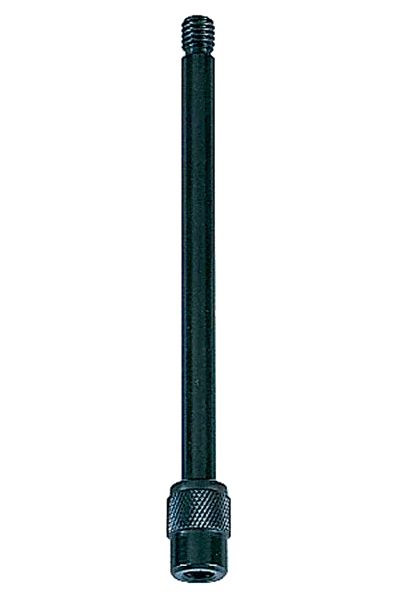

Extension Shaft

  • A-6 20 lbf capacity
  • S-6 110 lbf capacity
  • SH-6 220 lbf capacity

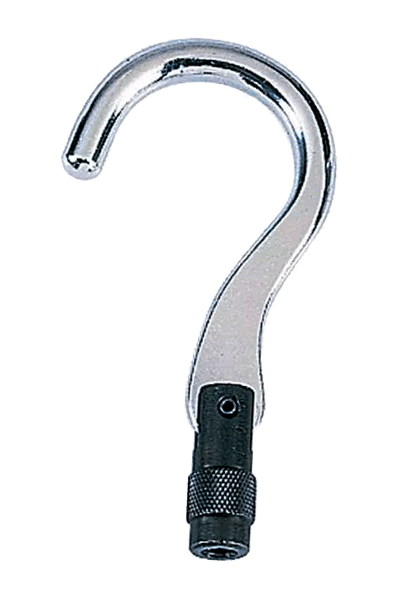

Large Hook

  • A-7 20 lbf capacity
  • S-7 220 lbf capacity
  • SH-7 220 lbf capacity


Y-Hook

  • A-8 20 lbf capacity
  • S-8 220 lbf capacity
  • SH-8 220 lbf capacity


line
Related Products
line

Imada Force Gauge Attachments


line
Downloads
line

Imada PS High Precision Mechanical Force Gauge - Dimensional Drawing
