Name: Imada PS-2 High Precision Mechanical Force Gauge PS Series, 2 lbf
Rating: 5.0 (1 reviews)

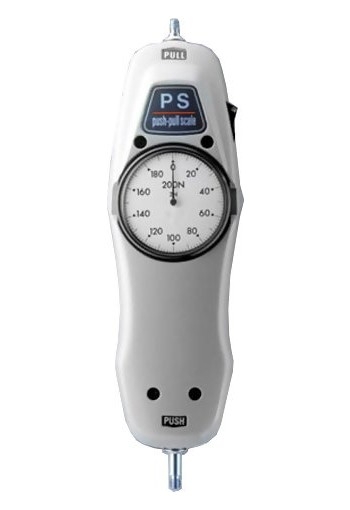

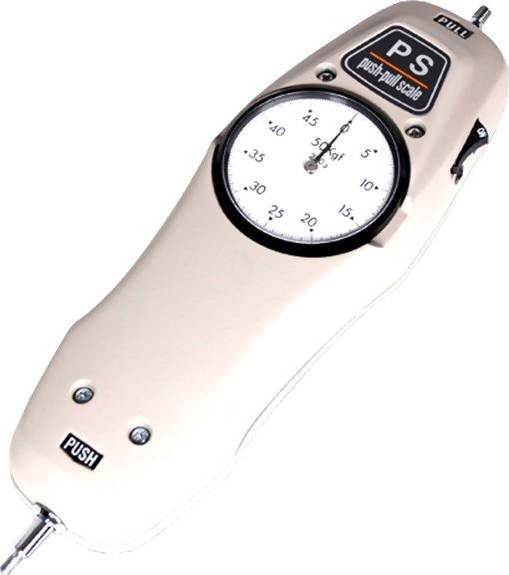

Imada PS High Precision Mechanical Force Gauge

See More Mechanical Force Gauges

High Precision Mechanical Force Gauge

25 Ranges up 100lbs / 50 Kg / 500 N

Intrinsically Safe for use in hazardous environments

Accuracy of ± 0.2%
23 Ranges Available

Rugged construction and excellent accuracy make Imada PS High Precision Mechanical Force Gauge ideal for tension and compression quality control measurements. Many ranges are offered, calibrated in Pounds, Kilograms, or Newtons.

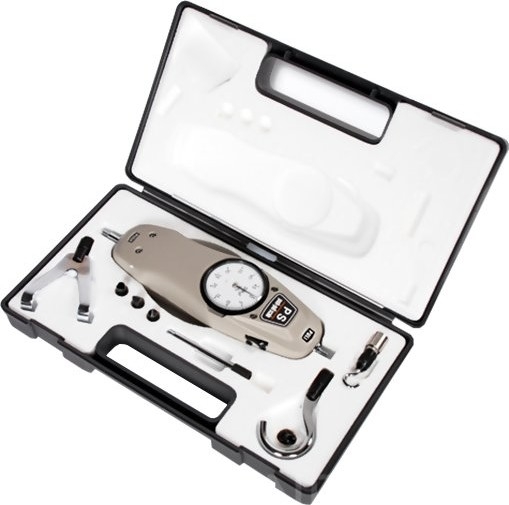

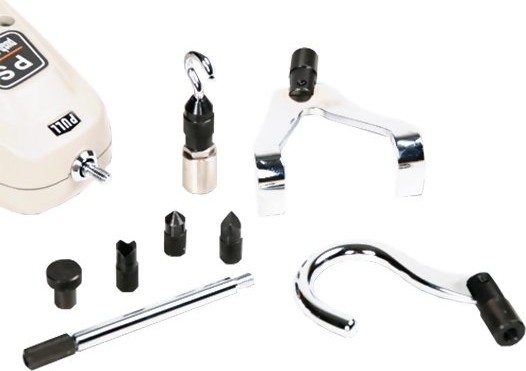

Kit Contents

Imada PS High Precision Mechanical Force Gauge
Flat head
Cone
Chisel notched
Small hook
Large hook
Y-hook
3 three inch extension rod
Instruction manual
Carrying case

Features

Ideal for push / pull measurements in all environments
Real Time force display with peak capture
Free manufacturer´s calibration report
Full set of accessories and carrying case included
Zero Tare Ring to zero the gauge in each position
Hand-held use or can be mounting a on test stand
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
2 Year Warranty

Force Ranges

Model	Cap. / Res	Model	Cap. / Res
PS-2	2 lb (0.01 lb)	PS-20KG	20 kg (100 g)
PS-5	5 lb (0.025 lb)	PS-30KG	30 kg (200 g)
PS-10	10 lb (0.05 lb)	PS-50KG	50 kg (250 g)
PS-20	20 lb (0.1 lb)	PS-10N	10 N (0.05 N)
PS-30	30 lb (0.2 lb)	PS-20N	20 N (0.1 N)
PS-50	50 lb (0.25 lb)	PS-30N	30 N (0.2 N)
PS-100	100 lb (0.5 lb)	PS-50N	50 N (0.25 N)
PS-1KG	1 kg (5 g)	PS-100N	100 N (0.5 N)
PS-2KG	2 kg (10 g)	PS-200N	200 N (1 N)
PS-3KG	3 kg (20 g)	PS-300N	300 N (2 N)
PS-5KG	5 kg (25 g)	PS-500N	500 N (2.5 N)
PS-10KG	10 kg (50 g)
