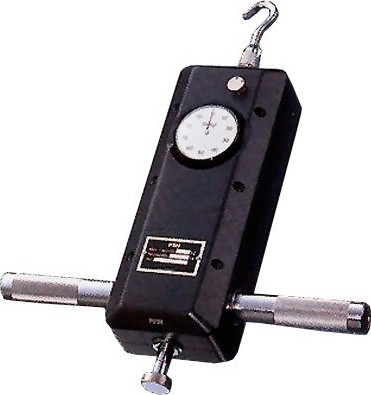

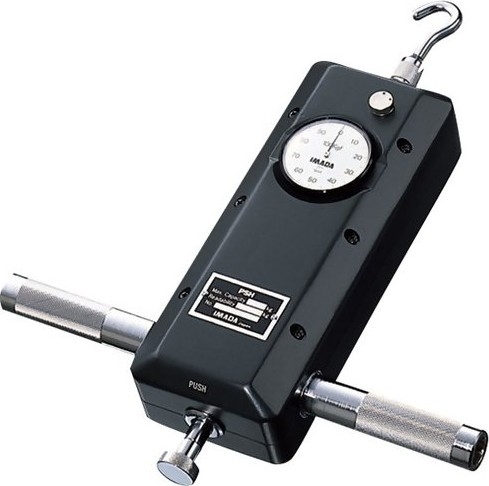

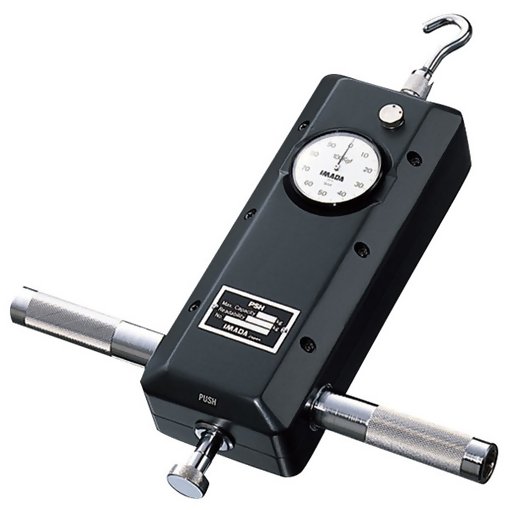

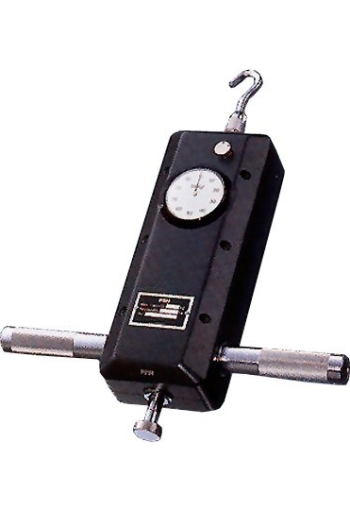

Imada PSH High Capacity Mechanical Force Gauge

11 Ranges up 500lbs / 300 Kg / 3000 N

Intrinsically Safe for use in hazardous environments
Accuracy ± 0.3%

The Imada PSH Precision High Capacity Mechanical Force Gauge is designed for high capacity measurements with ten separate models offered for forces up to 500 Lb/300Kg/3000N. The rugged metal housing and heavy duty springs will withstand the harsh rugged environment of a manufacturing plant, yet the highly accurate, matched springs will ensure reliable results and retain their accuracy over long periods. The tare ring allows you to zero the gauge and compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch enables you to observe transients or capture peaks. PSH force gauges are available in pounds, kilograms and Newtons. No batteries are needed and the unit is intrinsically safe in hazardous environments.


line

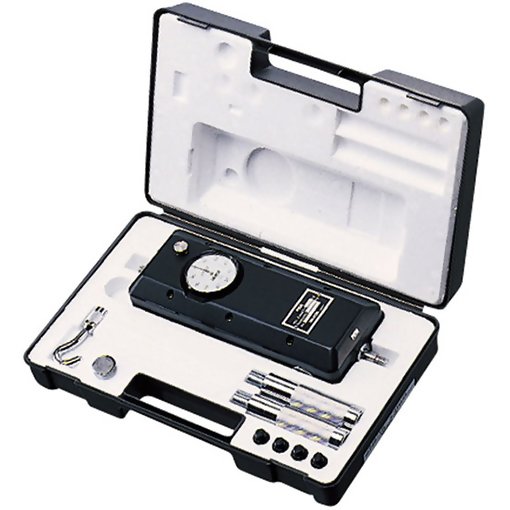

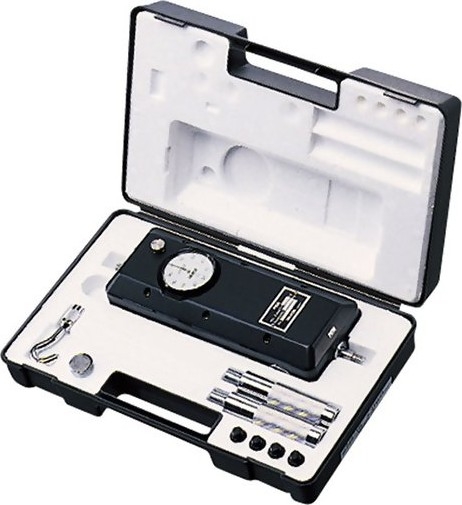

Kit Contents
line

  • Imada PSH High Capacity Mechanical Force Gauge
  • Handles
  • Measuring attachments (hook and flat head)
  • Extension shaft
  • hard plastic carrying case


line Features
line

  • Real time and peak hold modes
  • Simple, rugged, virtually maintenance free
  • No batteries needed
  • Full set of accessories and carrying case included
  • Capacities up to 500 lbs, 300Kg or 3000N (push and pull)
  • Intrinsically safe in hazardous environments
  • Heavy duty metal construction with "Tare Ring" to zero gauge before use
  • 2 Year Warranty
  • Traceable Calibration Certificate supplied at no additional charge.
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available


line
Specifications
line

Accuracy ± 0.3% Full Scale
Stroke 10 mm
Weight 3.1 Kg
Warranty 2 Years


line
Force Ranges
line

Model Capacity Resolution
PSH-200 200 lb 2 lb
PSH-300 300 lb 2.5 lb
PSH-400 400 lb 4 lb
PSH-500 500 lb 5 lb
PSH-100KG 100 kg 1 kg
PSH-200KG 200 kg 2 kg
PSH-300KG 300 kg 2.5 kg
PSH-1000 N 1000N 10 N
PSH-2000 N 2000N 20 N
PSH-3000 N 3000N 25 N

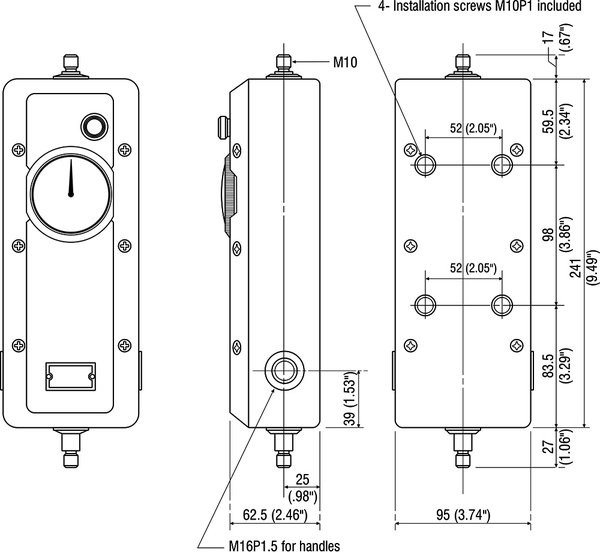

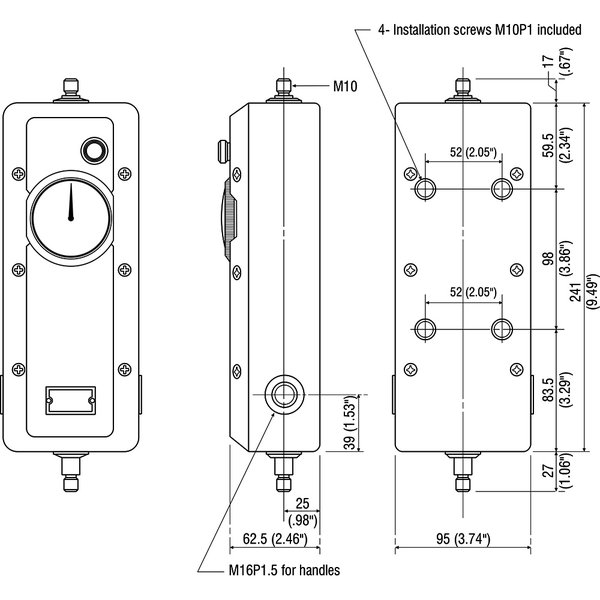

M10p1.5 Threaded measuring shaft (top & bottom)
Displacement at full scale capacity is 10mm
The PSH is available with a reverse display for use on vertical test stands
