Mark-10 Series E Ergonomics Force Gauges Kit EKE

---

Measure real time and peak push and pull forces

---

Click-LockTM accessory mounting technology

---

USB data output

---

Mark-10 Series E Ergonomics Force Gauge make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. The Mark-10 Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.

Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.

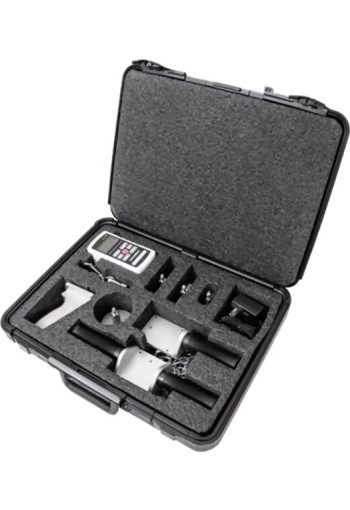

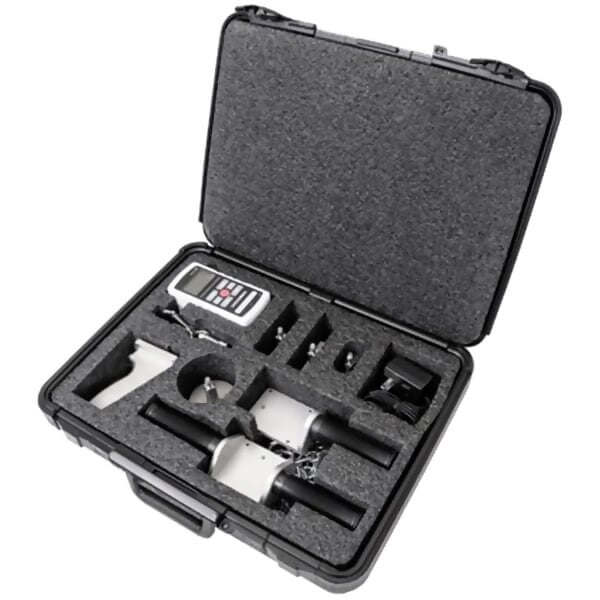

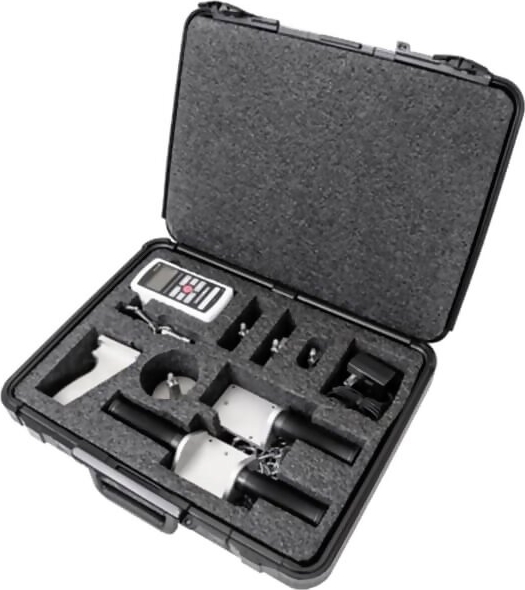

Kit Options

Mark-10 ME Digital Force Gage E1002 Square Padded attach E1003 Rectangular Padded attach E1004 Curved Padded attach E1005 Circular Padded attach E1006 Hook E1007 Chain/Hook Assembly E1008 Single Handle Grip E1009 Double Handle Grip E1010 Pistol Grip E1001 Large Carrying Case

* Kits include a force gauge with 110V AC adapter.

Features

• Measure real time and peak push and pull forces
• Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
• Click-Lock™ accessory mounting technology
• USB data output
• High / low limit indicators, for pass / fail and minimum force testing
• Averaging mode calculates average force over a period of time
• 5,000-point data memory - data points may be saved individually orlogged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR™ Lite data collection software.
• Statistical calculations for saved data points

Specifications

Accuracy	±0.2% of Full Scale
Sampling rate	7,000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units	lbF, ozF, gF, kgF, N, kN (depending on model)
USB Output	Configurable up to 115,200 baud
Safe overload	200% of full scale (display shows "OVER" at 110% and above)
Weight	1.7 lb (0.8 kg)
Included items	Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR™Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data
Warranty	3 years

Ranges (Capacity / Resolution)

Model	lbF	ozF	kgF	gF	N	kN
ME-100	100 0.002	1600 0.5	50 0.01	50000 10	500 0.1	-
ME-200	200 0.05	3200 1	100 0.02	-	1000 0.2	1 0.0002
ME-500	500 0.1	8000 2	250 0.2	-	2500 0.5	2.5 0.0005

Ordering Guide

EKE-100-1	Advanced ergonomics kit, 100 lbF / 500 N
EKE-200-1	Advanced ergonomics kit, 200 lbF / 1,000 N
EKE-500-1	Advanced ergonomics kit, 500 lbF / 2,500 N
EKE-100-2	Professional ergonomics kit, 100 lbF / 500 N
EKE-200-2	Professional ergonomics kit, 200 lbF / 1,000 N
EKE-500-2	Professional ergonomics kit, 500 lbF / 2,500 N

Accessories

	Model	Description	Advanced Kit1	Professional Kit1
	ME-100 ME-200 ME-500	ME-100 ME-200 ME-500
	E1002	Padded attach., square
	E1003	Padded attach., rectangular
	E1004	Padded attach., curved
	E1005	Padded attach., circular
	E1006	Hook
	E1007	Chain / hook assembly
	E1008	Single handle grip
	E1009	Double handle grip
	E1010	Pistol grip
	E1011	Grip adapter
	E1012	Looped cable2
	E1013	Myometer kit3
	E1000	Carrying case, small
	E1001	Carrying case, large

1. Kits include a force gauge with 110V AC adapter. Add suffix ‘E’ for Euro plug, ‘U’ for UK plug, or ‘A’ for Australian plug. Ex: EKE-100-1E
2. Does not fit into carrying cases
3. Does not fit into carrying cases. Requires E1006 hook

Downloads

Mark-10 Series-E Ergonomics Force Gauge - Instruction Manual
