Shimpo Digital PT-Kits Physical Therapy Kits for testing muscle strength and ergonomic force
Ranges from 100 to 500 lbs (50 to 250 kg)
For muscle strength and ergonomic force testing, the Shimpo Digital PT-Kits Physical Therapy Kits have just the right ingredients for the professional Physical Therapist, or Ergonomist. Lightweight, rugged and attractive, these kits are great for Isokinetic testing and job task analysis. The Shimpo Digital PT-Kits Physical Therapy Kits with digital force gauges are ergonomically crafted and are easy to operate. In addition, the FGV-PT series kits are equipped with free software for Force data collection.
All Shimpo PT-kits are capable of displaying peak compression, tension or real time forces. These handsome padded kits are furnished with padded ERGO accessories, handle adapters and N.I.S.T. traceable certicates of calibration. The digital PT Kits are ideal for A.D.A Compliance, workplace design and ergonomic studies.

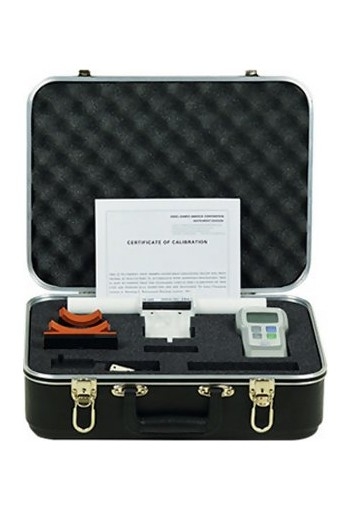

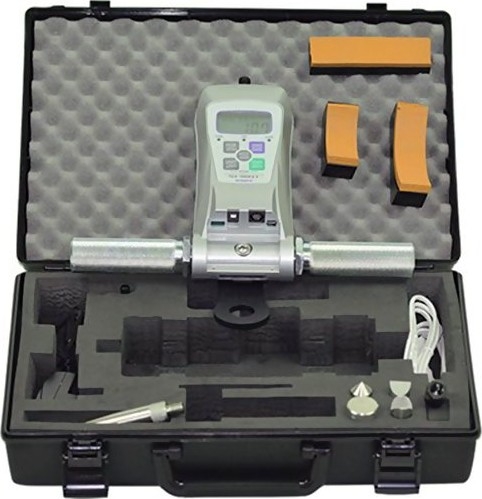

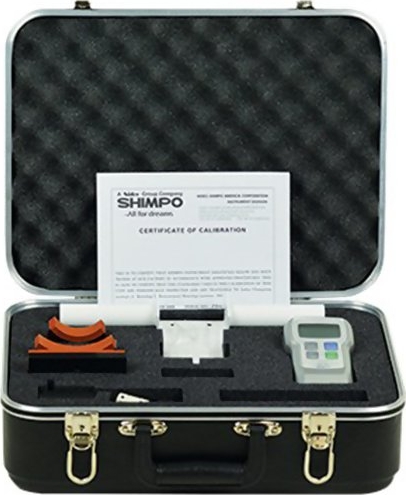

Kit Contents
- Shimpo Digital PT-Kits Physical Therapy Kits

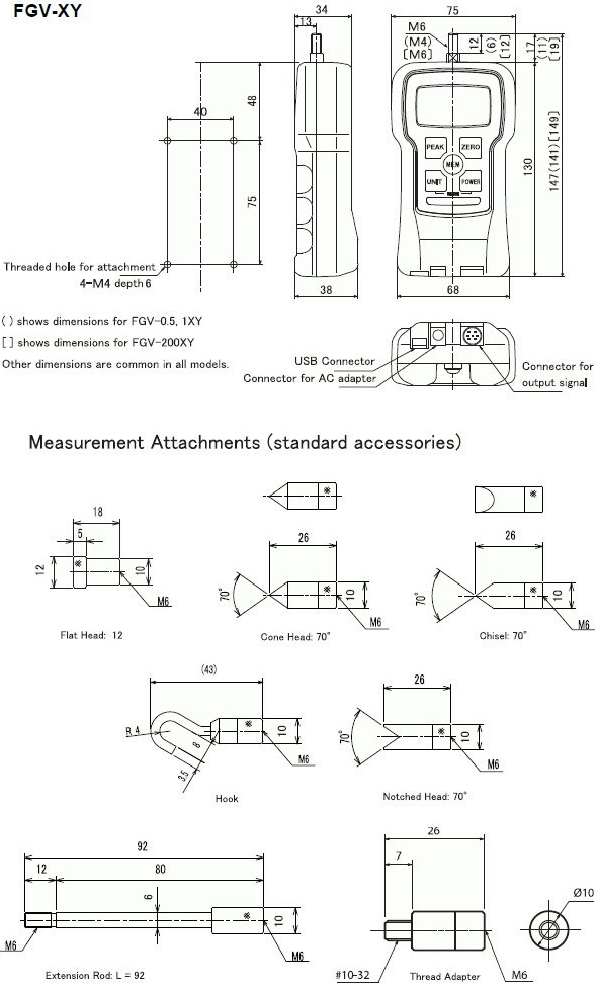

- Attachments (hook, chisel, flat head, notched head, hanger, cone head, extension rod, metric to inch adapter)
- Padded ERGO accessories
- Handle
- AC adapter/charger
- N.I.S.T. traceable certificate of calibration
- Carrying Case
Features
- Ranges from 100 to 500 lbs (50 to 250 kg)
- Large easy to read LCD display with units selection
- Peak hold tension and compression or real time force mode
- 180° Reversible display aids user operation in various test configurations
- Compact, ergonomic design is perfect for handheld use
- Outstanding ±0.2% F.S. accuracy allows usage in strictest applications
- Rugged, die cast aluminum housing provides proper protection
- Operate with the rechargeable batteries or AC Power Adapter
- CE Mark & RoHS Approval
Specifications
| Accuracy | ± 0.2% F.S. @ 73°F (23°C) |
| Display | Reversible 4-Digit LCD, 0.47" high (12 mm) with various indicators including tension and low battery indication |
| Mode | Real time or Peak hold mode |
| Display Update | Selectable |
| Sampling Rate | 1000/sec |
| Overload Capacity | 150% of F.S.; 200% of F.S. for 100 lb |
| Power | Rechargeable Ni-battery or universal AC adapter/charger (100 – 240 VAC 50/60 Hz) |
| Auto Power Shut-Off | Yes (not active if adapter/charge is in use) |
| Temperature Limits | 32 to 104°F (0 to 40°C) |
| Dimensions | PT100,PT200: 5.8" x 3" x 1.5" (147 x 75 x 38 mm)
PT500: 8.43" x 3.23" x 2.25" (214 x 82 x 57 mm) |
| Kit Weight | PT100 Kits: 6.3 lb (2.85 kg)
PT200 Kits: 6.65 lb (3 kg)
PT500 Kits: 7.5 lb (3.4 kg) |
| Certification | CE, RoHS |
| Warranty | 1 Year |
Force Ranges
