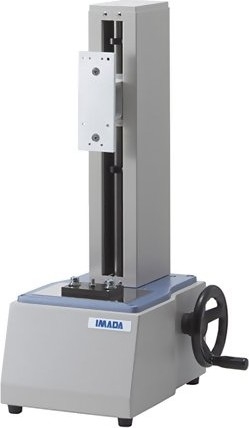

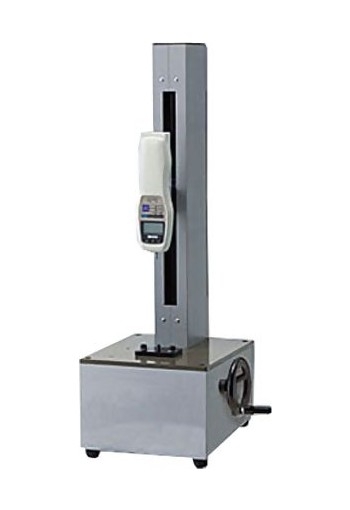

Imada HV-300 / HV-500 Manual Hand Wheel Test Stand
Force Gauge sold Separately
2 Ranges Up to: 0-500 lbs / 0-250 Kg / 0-2500N
12" (300mm) Maximum Travel
The Imada HV-300 / HV-500 Manual Hand Wheel Test Stand have greater clearance to accommodate oversize materials and a long stroke to test materials that require a greater range of movement. The Imada HV-300/500 are precise push/pull test stands that are ideal for force applications requiring relatively consistent speed and maximum gauge control. The force gauge remains in position when the wheel is released which allows the user to easily change samples between tests. The hand wheel operation will provide repeatable test results from sample to sample.
*FORCE GAUGE NOT INCLUDED
Designed to work with the DS2 & Z2 force gauges.
Features
- Hand wheel design provides a high degree of precise control
- Gauge remains in place when hand wheel is released
- One stand for both compression (push) and tension (pull) tests
- Maximum clearance 15"
Specifications
| Capacity | HV-300: 300 lbs (150 Kg)
HV-500: 500 lbs (250 Kg) |
| Stroke | 12" (300mm) |
| Dimensions | Download PDF |
| Weight | HV-300: 60
HV-500: 65 |
| Compatible Gauges | DS2 and Z2 |
| Warranty | 3 years |
Downloads
