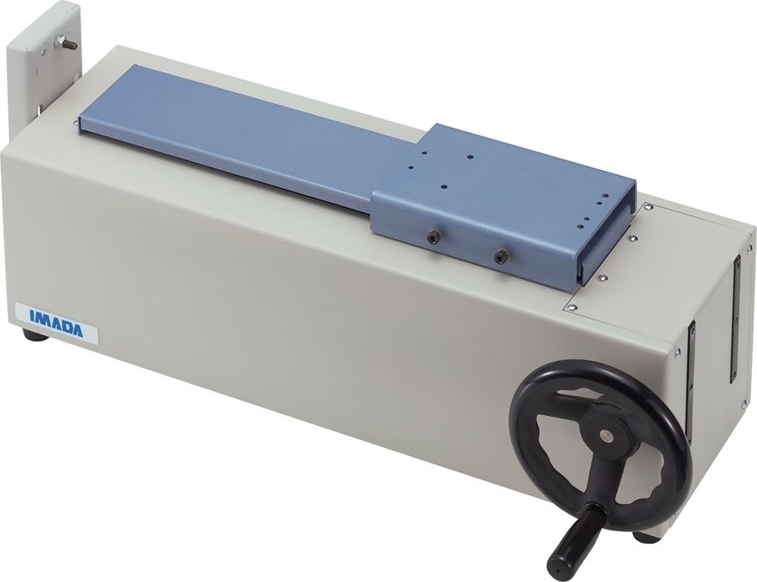

Imada SH-220 Horizontal Hand Wheel Test Stand

The Imada SH-220 Horizontal Hand Wheel Test Stand is ideal for doing peel tests and other force measurements where a horizontal test stand is required. With all of the advantages of the hand wheel design (relatively consistent speed, precise gauge positioning, bi-directional movement) in a low-profile horizontal package, the Imada SH-220 accepts many of the standard range force gauges and special attachments.

*FORCE GAUGE NOT INCLUDED
Designed to work with the DS2 & Z2 force gauges.

Features

• Hand wheel provides relatively consistent speed for repeatable tests
• Gauge remains in place when hand wheel is released
• Continuous stroke 11.8"

Specifications

Downloads

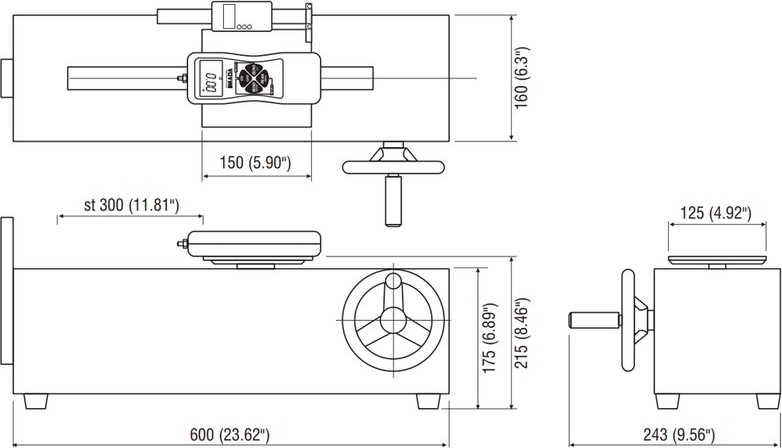

SH-220 Horizontal Hand Wheel Test Stand - Dimensions
