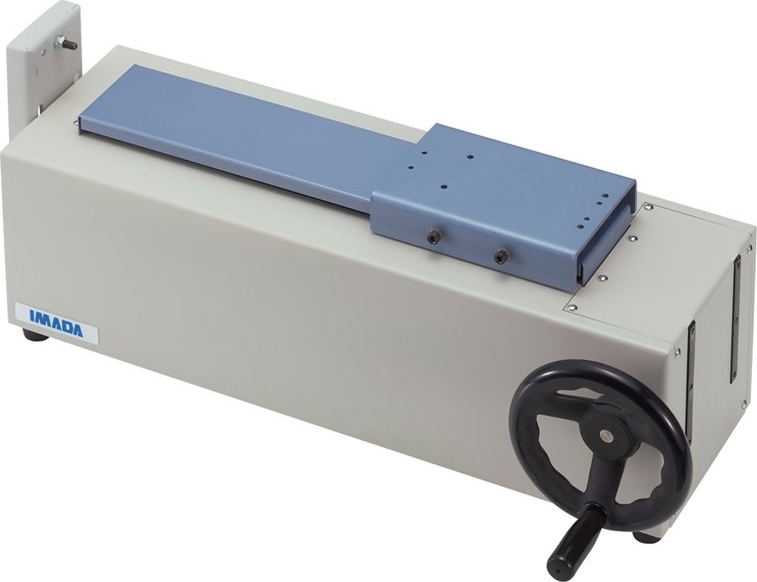

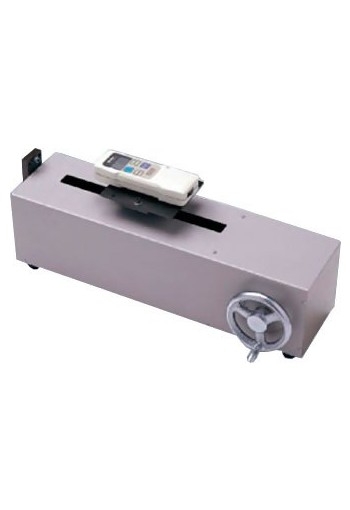

Imada SH-220 Horizontal Hand Wheel Test Stand
Force Gauge sold Separately
2 Ranges Up to: 0-220 lbs / 0-100 Kg / 0-1000N
The Imada SH-220 Horizontal Hand Wheel Test Stand is ideal choice or push / pull tests where a horizontal setup is required. Horizontal setups are ideal for testing on large objects. The all metal construction of the test stand ensures a stable measurement platform. The SH series is available in two capacities, 220 lbf and 750 lbf.
The test stand features the advantages of the hand wheel design; relatively consistent speed, precise gauge positioning, and bi-directional movement. The low-profile SH-220 accepts any of the standard range Imada force gauges and special attachments.
*FORCE GAUGE NOT INCLUDED
Designed to work with the DS2 & Z2 force gauges.
Features
- Horizontal design is ideal for push / pull testing and other applications
- Hand wheel provides relatively consistent speed for repeatable tests
- Gauge remains in place when hand wheel is released
- One stand for both compression (push) and tension (pull) tests
- Stroke: 11.8" (300mm)
- Travel distance per wheel rotation 1.2mm
- Optional digital distance meter
Specifications

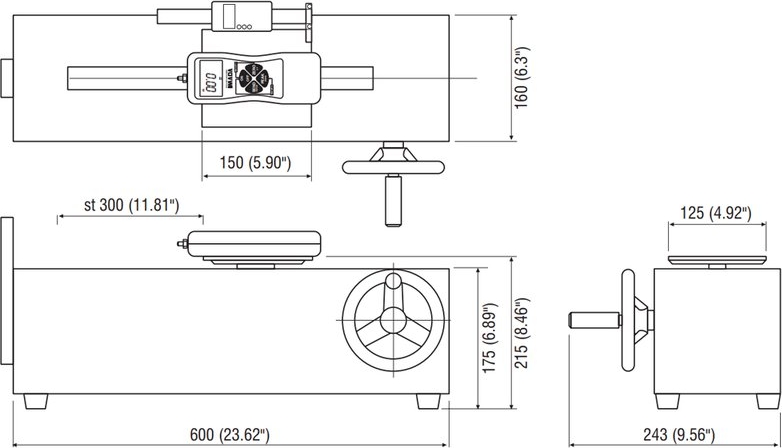

| Capacity SH-220, SH-220-S | 220 lbf | Capacity SH-750, SH-750-S | 750 lbf | Stroke SH-220, SH-220-S | 11.8" (300 mm) | Stroke SH-750, SH-750-S | 14.5" (370mm) | Travel Rate SH-220, SH-220-S | 1.2mm/rev of hand wheel | Travel Rate SH-750, SH-750-S | 0.6mm/rev of hand wheel | Dimensions | Download PDF | Compatible Gauges | Z2, ZP and DS2 | Warranty | 2 years |
