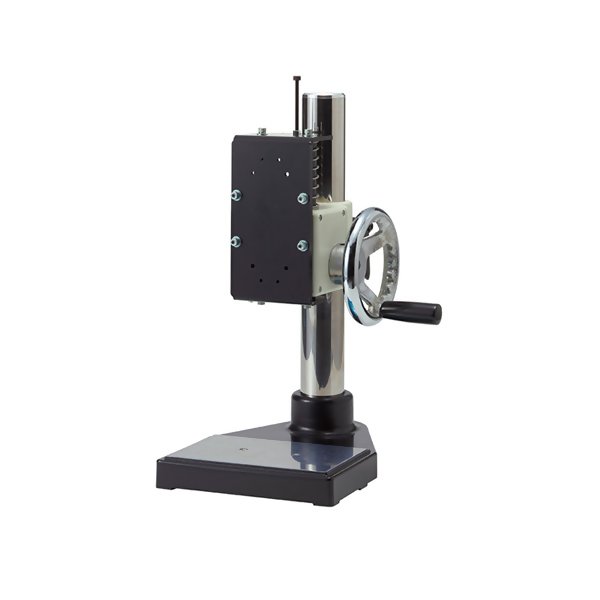

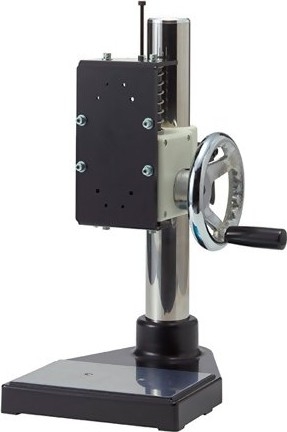

Imada SVH-220 Vertical Hand Wheel Test Stand


Force Gauge Sold Separately
Travel: 3mm per wheel rotation
220 Lb Capacity

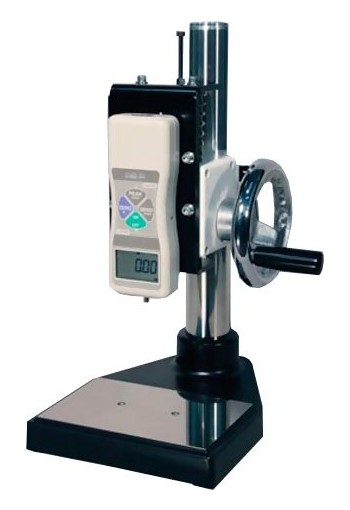

The Imada SVH-220 are compact test stands with a maximum capacity of 220 lbs. The handwheel offers precise movement that is ideal for applications requiring relatively consistent speed and maximum gauge control. The gauge re­mains in position when the wheel is released which allows the user to easily change samples between tests. Hand wheel operation provides repeat­able test results from sample to sample. The stroke can be adjusted with a mechanical limit. The Imada SVH-220 accommodate any of our standard range mechanical or digital force gauges.

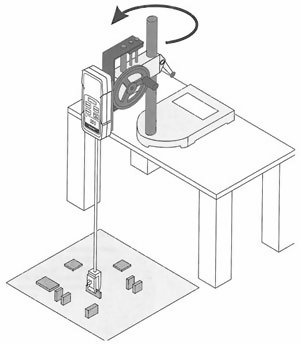

SVH-220 can be rotated 180 degrees around the column axis so for use without the base interfering on the underside. When located at the edge of workbench, the available working area is unlimited.


line
Features
line

  • Maximum load 220 lbf (100 kgf)
  • Travel: 3mm per wheel rotation
  • Gauge remains in place when hand wheel is released
  • Optional digital distance meter
  • Stroke: 2.3" / 60mm
  • Hand wheel design provides a high degree of precise control
  • One stand for both compression (push) and tension (pull) tests


line
Specifications
line

Capacity 220 lbf / 100 kgf
Stroke 2.3" / 60mm
Travel 3mm per wheel rotation
Resolution 0.0005" / 0.01 mm
Accuracy 0.1% of reading or 0.005" / 0.1mm, whichever is greater
Display Push button for inch/mm, zero set and on/off
