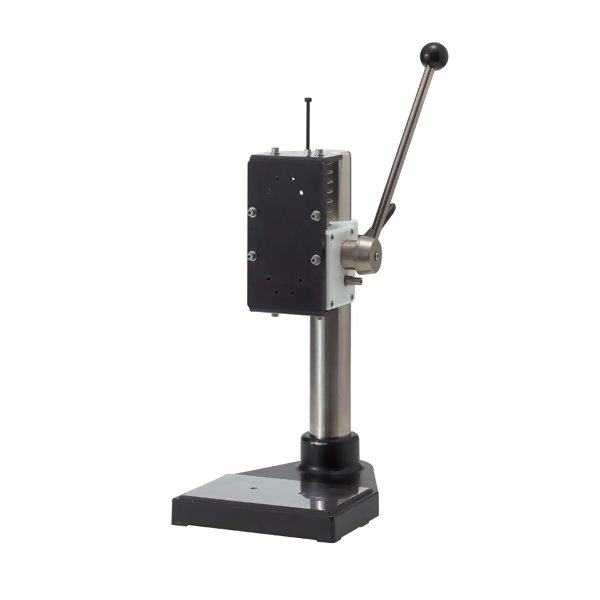

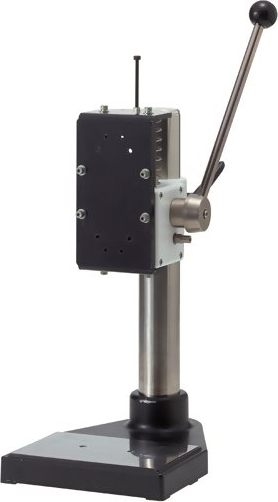

Imada SVL-220 Manual Lever Test Stand


Force Gauge sold Separately
Easy to change from tension to compression mode
220 Lb Capacity

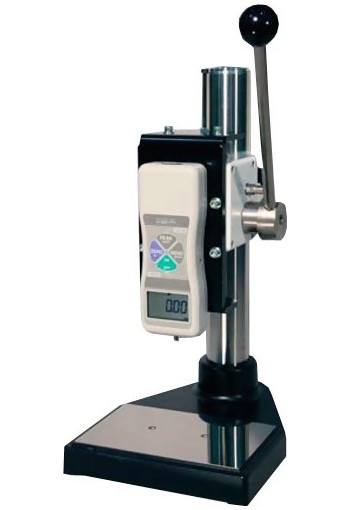

Imada SVL-220 Manual Lever Test Stands provide quick, consistent testing. Both compression and tension tests can be performed with a simple downward stroke of the lever. The test stand is designed to provide a simple move to change from compression to tension mode. Return springs reset the lever in compression mode and gravity does the work in tension mode. The stroke can be adjusted with a mechanical limit. The stands accommodate any of the standard range mechanical or digital force gauges and can be equipped with a precision digital distance meter. SVL-220 is perfect for compression and tension applications where rapid action is desired.

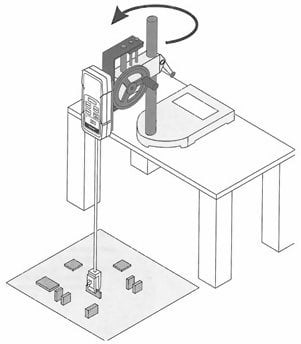

Imada SVL-220 Manual Lever Test Stand can be rotated 180 degrees around the column axis so for use without the base interfering on the underside. When located at the edge of workbench, the available working area is unlimited. (SVH-220 show below for illustrative purpose).


line
Features
line

  • Maximum load 220 lbf (100 kgf)
  • Easy to change from tension to compression mode
  • Stroke: 2.3" / 60mm per 170°
  • Optional digital distance meter


line

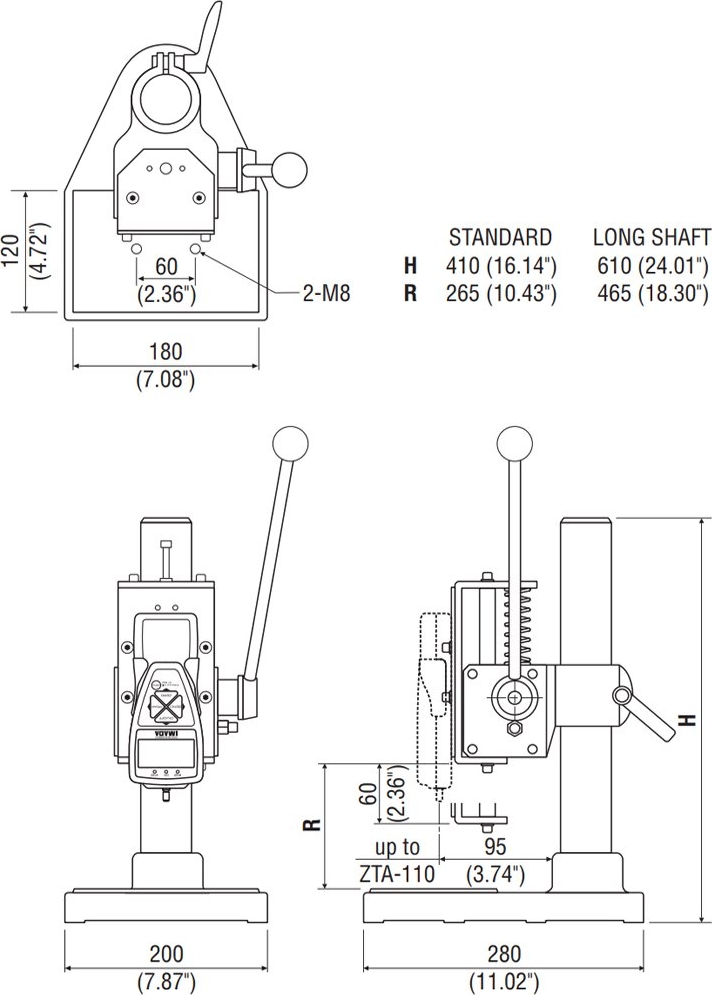

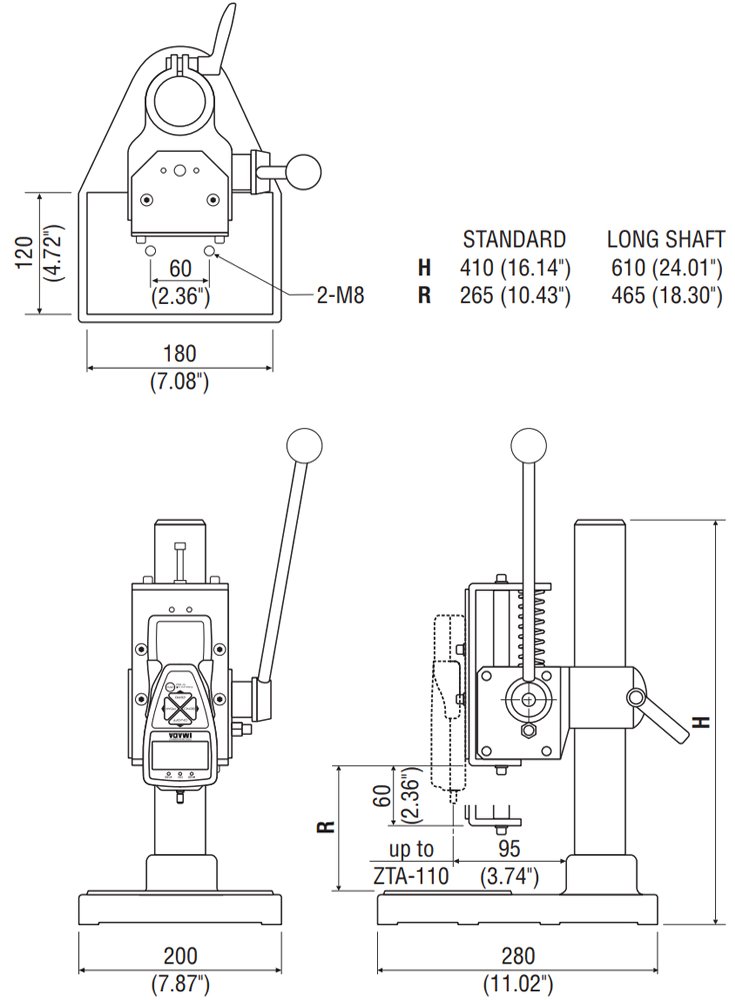

Specifications
line

Capacity 220 lbf / 100 kgf
Stroke 2.3" / 60mm per 170°
Resolution 0.0005" / 0.01 mm
Accuracy ± 0.01" / 0.2mm
Display Push button for inch/mm, zero set and on/off
