Mark-10 AC1095-1 Double column extension for F105, F305, F505, and ESM303, 6"

See More Test Stands, Mechanical

Mark-10 AC1095-1 Double column extension for F105, F305, F505, and ESM303, 6"

See More Test Stands, Mechanical
Price:
$1,925.00
warrenty

Product Description

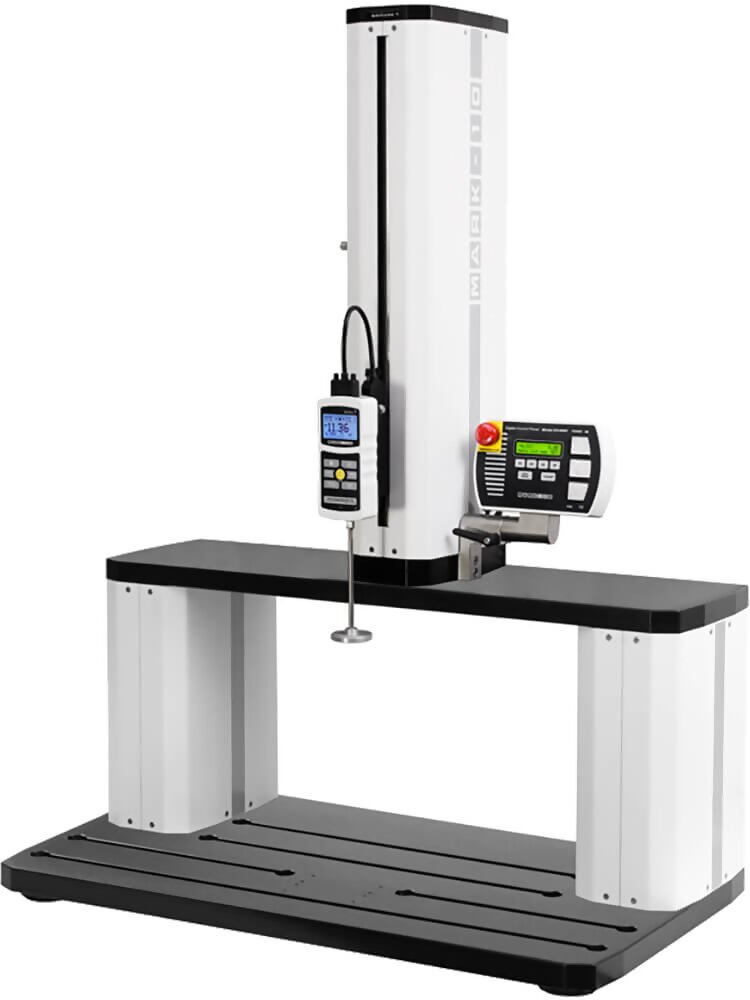

Double column extensions for Motorized Test Stands
This double column extension accommodates up to a 20 in. [508 mm] wide sample
Double column extensions AC1095-1, AC1095-2, AC1095-3

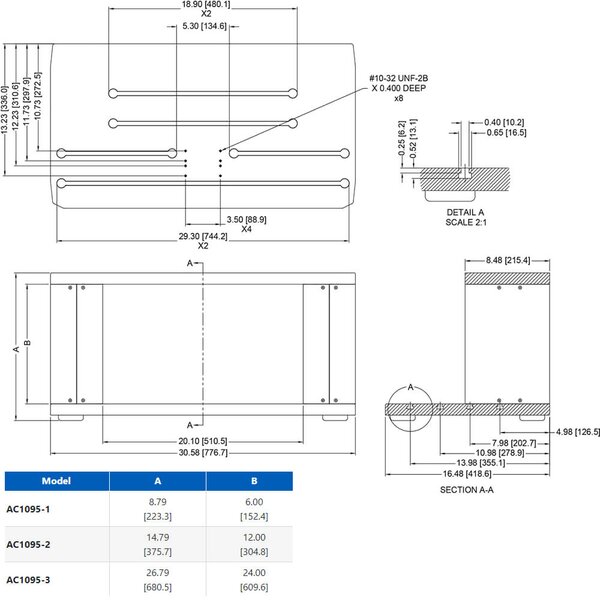

Accommodate up to a 20 in. [508 mm] wide sample, or ø21.5 in [ø546 mm] round sample. Three heights are available – 6, 12 and 24 in [150, 300, and 600 mm]. Base contains rows of T-slots, with available fixture mounting plates.

Compatible with:

  • Models F105 / F305 / F505 test frames - these test frames include a base plate with matrix of threaded holes, which may be mounted to the column extension’s base.

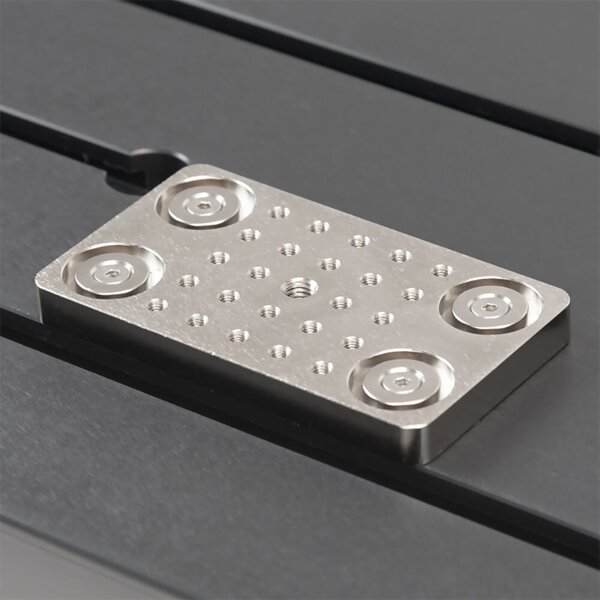

  • Model ESM303 test stand - if a base plate with matrix of threaded holes is needed, add part no. AC1096.
  • Not compatible with shields.


line
Features
line

  • Increase horizontal and vertical clearances for large samples
  • Anodized aluminum base features rows of T-slots for fixture mounting, with rubber bench mounts


line
Specifications
line

WeightAC1095-1: 100 lb [45.4 kg] | AC1095-2: 105 lb [47.6 kg] | AC1095-3: 123 lb [55.8 kg]
HS Code9024800000
ECCNEAR99
Country of originUSA


lineRelated Productsline

Mark-10 Easy MESUR-LR Tension and Compression Test Frame

  • Capacities up to 500 lbs / 2.2 kN
  • Force vs Distance Measurement, Break Detection, Load Holding, and many other features OPTIONAL

line

Mark-10 F105 / F305 / F505 / F505H Series-F Advanced Force Test Stands

  • Computer Controlled Force Test Frame
  • Force Capacities up to 500 lbF (2.2 kN)
  • Easily Program Multi-Step Tests


line
Downloads
line

Mark-10 AC1095 Double column extensions for Motorized Test Stands - Solid Models

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
Models Price
$1,925.00
Recommended Accessories PRICE
$126.00
