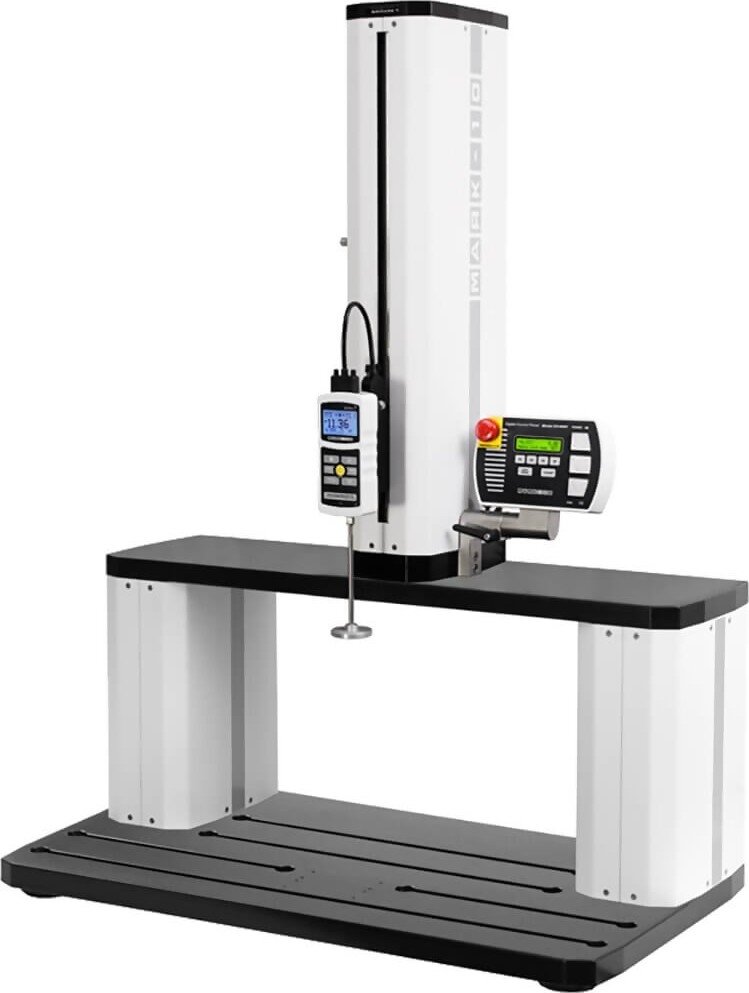

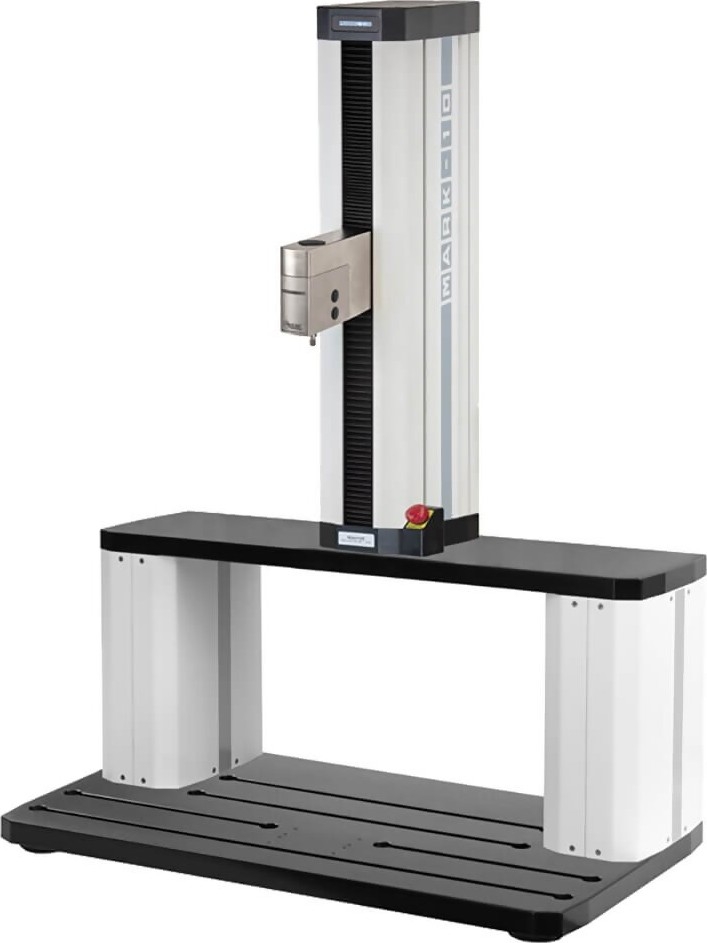

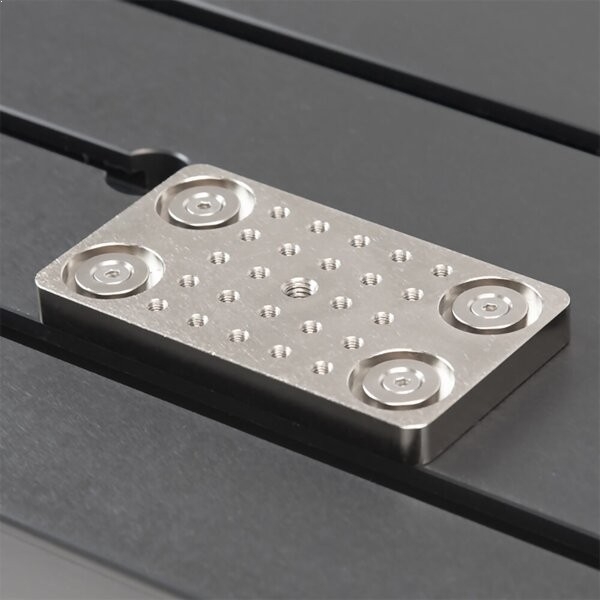

Accommodate up to a 20 in. [508 mm] wide sample, or ø21.5 in [ø546 mm] round sample. Three heights are available – 6, 12 and 24 in [150, 300, and 600 mm]. Base contains rows of T-slots, with available fixture mounting plates.

Compatible with:

• Models F105 / F305 / F505 test frames - these test frames include a base plate with matrix of threaded holes, which may be mounted to the column extension’s base.
• Model ESM303 test stand - if a base plate with matrix of threaded holes is needed, add part no. AC1096.
• Not compatible with shields.

Features

• Increase horizontal and vertical clearances for large samples
• Anodized aluminum base features rows of T-slots for fixture mounting, with rubber bench mounts

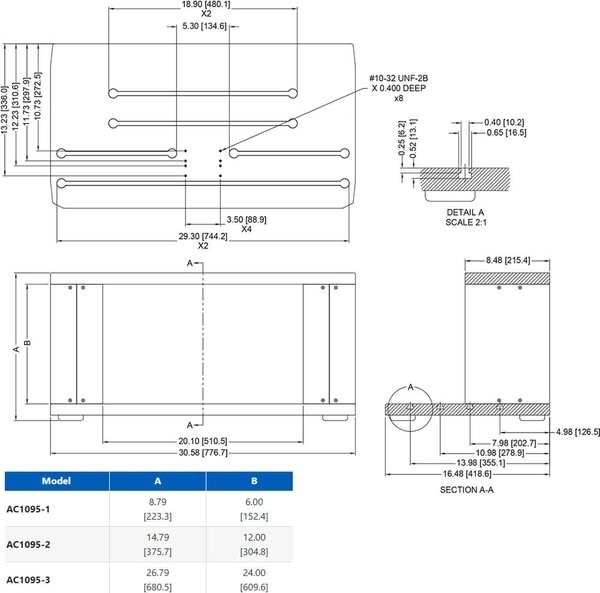

Specifications

Related Products

Mark-10 Easy MESUR-LR Tension and Compression Test Frame Capacities up to 500 lbs / 2.2 kN Force vs Distance Measurement, Break Detection, Load Holding, and many other features OPTIONAL

Mark-10 F105 / F305 / F505 / F505H Series-F Advanced Force Test Stands Computer Controlled Force Test Frame Force Capacities up to 500 lbF (2.2 kN) Easily Program Multi-Step Tests

Downloads

Mark-10 AC1095 Double column extensions for Motorized Test Stands - Solid Models
