    Product Description

    Mark-10 ES20 Mechanical / Manual Test Stand, 100 Lb Capacity


    Force Gauge sold Separately
    100lb Capacity

    9" Maximum Travel

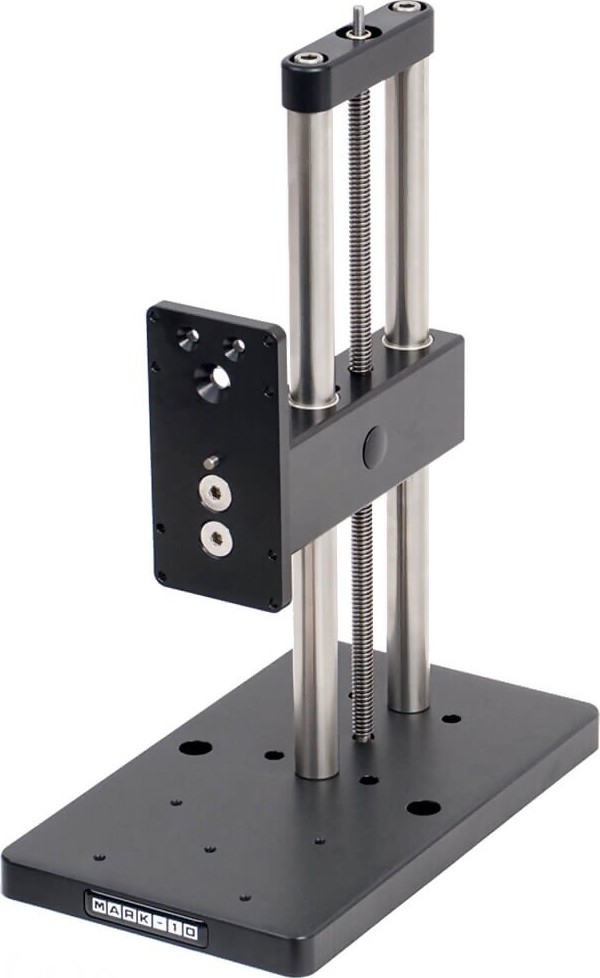

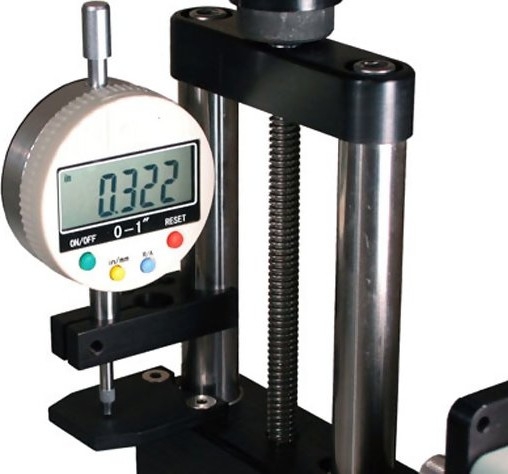

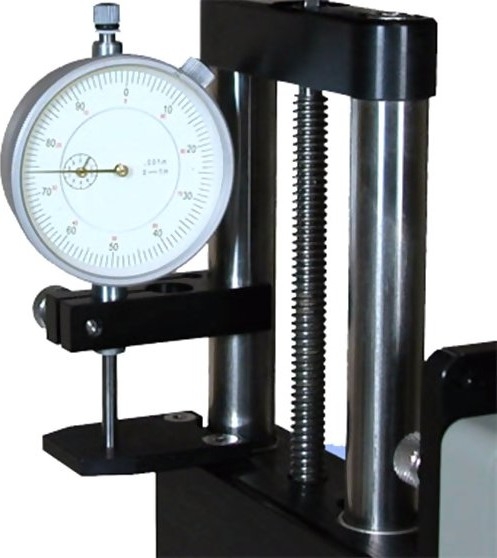

    The Mark-10 ES20 Mechanical / Manual Test Stand is a compact solution for compression and tensile testing of small samples. The precision hand wheel allows fine control with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement. Use the ES20 with our force gauges and grips to create complete testing systems.

    *Force Gauge & Distance Meter are Not Included


    line

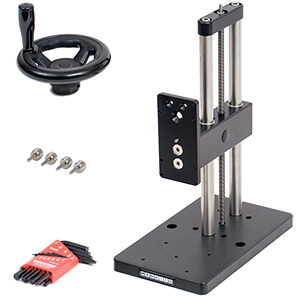

    Kit Contents
    line

    • Mark-10 ES20 Mechanical / Manual Test Stand, 100 Lb Capacity
    • Allen wrench set
    • Hand wheel
    • Thumb screw for force gauge


    line
    Features
    line

    • Small size
    • Compatible with all Mark-10 force gauges, accessories and grips
    • Mounting holes for bench mounting

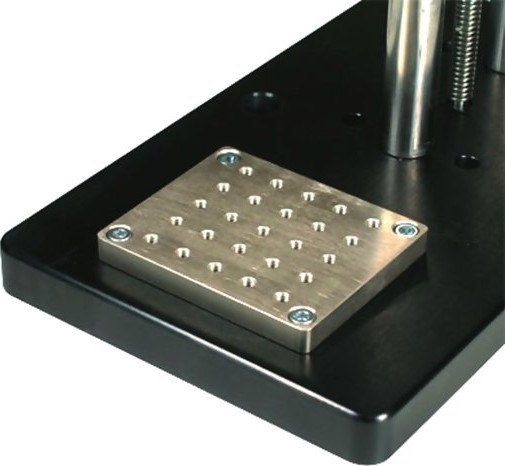

    • Large base plate with 5 #10-32 UNF holes for fixture mounting
    • Competitor force gauge mounting kits available


    line
    Specifications
    line

    Maximum Force100 lbF [500 N]
    Maximum Travel9" [229 mm]
    Loading MethodTop-mounted hand wheel
    Travel Rate0.083" [2.1 mm] / wheel rev.
    Weight10 lb [4.5 kg]


    line
    Downloads
    line

    Mark-10 ES20 Mechanical / Manual Test Stand - Instruction Manual
    Mark-10 ES20 Mechanical / Manual Test Stand -Data Sheet
