This product has been replaced by the Mark-10 AC1092

---

Mark-10 ESM303-003 Safety Shield for ESM303 Test Stand

---

Test Stand and Force Gauge sold Separately

---

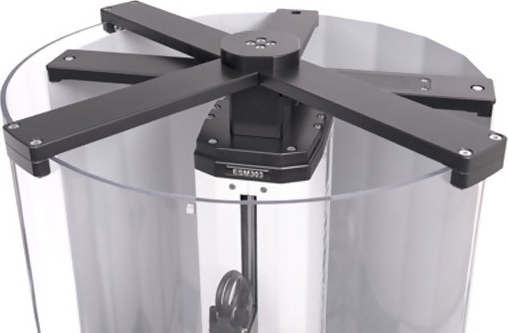

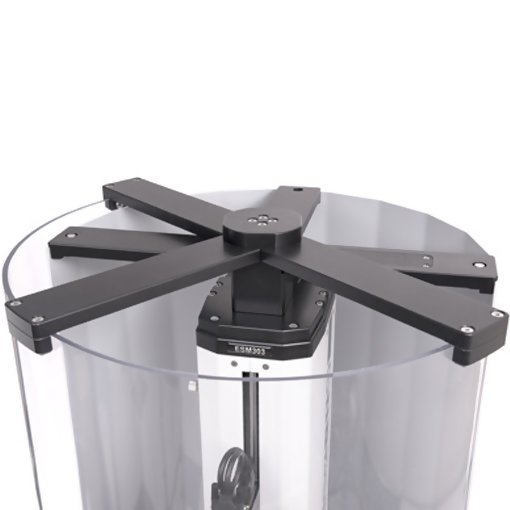

The ESM303-003 safety shield attaches to an ESM303 test stand, providing pinch and sample debris protection for the operator.

---

The Mark-10 ESM303-003 Safety Shield for ESM303 Test Stand is used to provide pinch and sample debris protection for the operator.

The shields are constructed of rugged PETG material. They rotate via ultra-smooth bearings in both the clockwise and counter-clockwise directions, guided into the open or closed positions with magnetic detents. An electrical interlock prevents test frame operation while the door is open.

For crosshead adjustment during sample loading, the FollowMe® force-based positioning function is active even while the door is open.

Compatibility Note for AC1086-1 Shield for ESM303 Test Stand:

The FollowMe® function is included with the shield, and does not need to be separately ordered with the test stand.

Minimum required test stand firmware versions:

Front: 2.02.08

Main: 2.02.07

Kit Contents

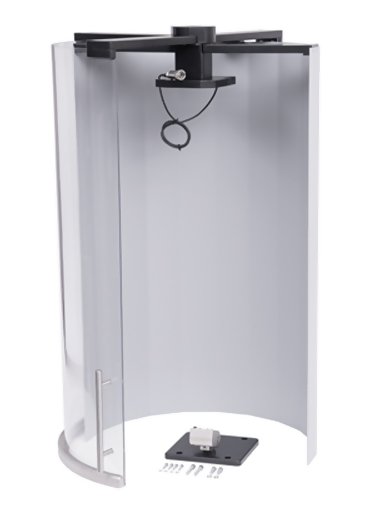

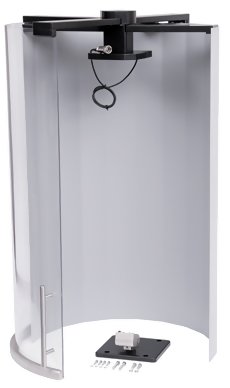

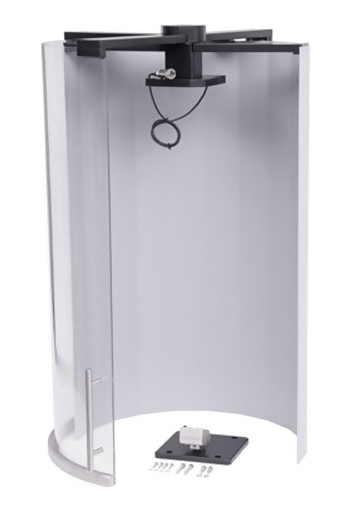

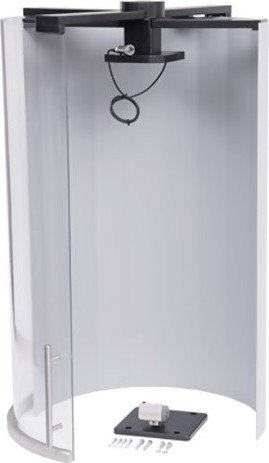

The safety shield is shipped as shown below, and includes the following accessories:

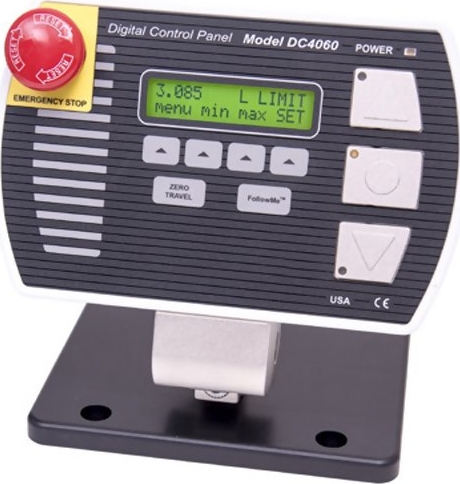

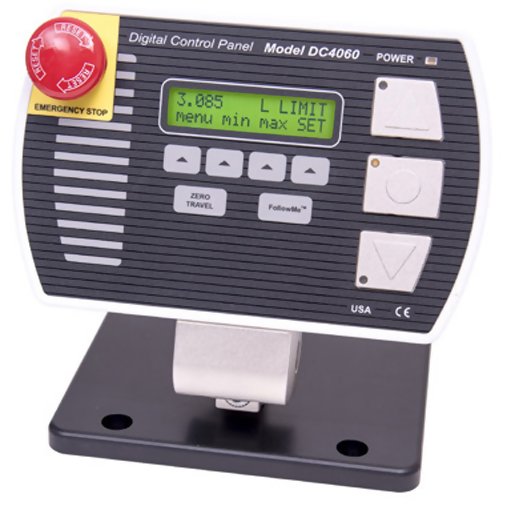

Safety shield assembly with interlock cable Tabletop mounting kit for control panel Hardware for mounting shield to test stand Hardware for mounting control panel to tabletop mounting kit Remote emergency switch (AC1086 only)

Downloads

Mark-10 ESM303-003 Safety Shield For ESM303 Test Stand - User Guide
